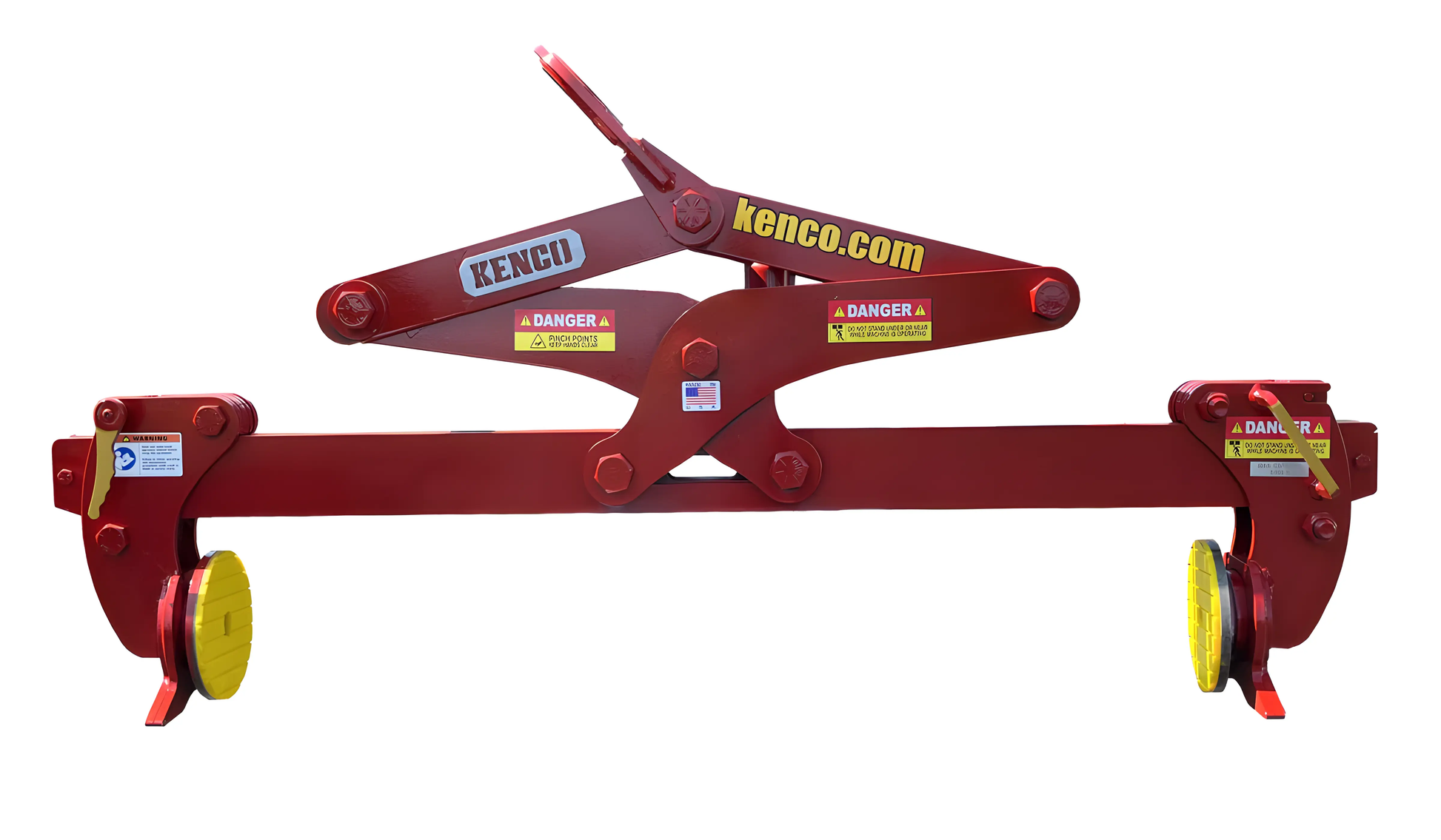

Kenco Multilift System (ML8K10T48V1)

Kenco Multi-Lift – Compact and Versatile Lifting Solution

Kenco ML8K10T48V1 Multi-Lift Must-Know Adjustable Slab Handling Performance
The Kenco ML8K10T48V1 Multi-Lift is a compact yet powerful tool designed to lift and move a wide range of precast items, concrete blocks, pads, retaining walls, and similar materials. With an 8,000 lb capacity and a fully adjustable leg system, this lifter allows contractors to handle materials of varying sizes safely, efficiently, and with precision.

Engineered for exceptional flexibility, the ML8K features sliding adjustable legs that can be set to your desired width and reversed to switch from compression (inward) grip to expansion (outward) grip. This dual-function capability makes it one of the most versatile lifting attachments in its class.

Features:

• 8,000 lb Capacity: Perfect for concrete slabs, retaining wall sections, and precast blocks.

• Adjustable Grip Range: Standard range from 10" to 48" with the option to reverse for 29" to 60" inside-out grip.

• Fully Adjustable Legs: Slide to precise width for fast setup and secure handling.

• Dual Grip Functionality: Switch between inward (compression) and outward (expansion) gripping modes.

• Pivoting Circular Pads: Pad assemblies pivot in all directions to ensure even, full-surface contact.

• Customizable Design: Compatible with optional leg extensions, pad replacements, and standoffs.

• Compact Size and Lightweight Design: Ideal for smaller job sites and precision placement tasks.

Product Description:

The Kenco ML8K10T48V1 Multi-Lift is built to simplify lifting and moving a wide range of precast concrete materials, from block and slab to sidewalk pads and retaining wall elements. With its 8,000 lb lifting capacity, it offers the perfect balance of strength, adjustability, and maneuverability for medium-duty applications.

This unique and versatile attachment lets contractors handle materials up to 48 inches wide, while its adjustable sliding legs make width changes fast and effortless. By reversing the leg orientation, operators can easily switch between inward clamping and outward pushing configurations to adapt to different job requirements.

The pivoting circular pads are engineered to rotate freely in all directions, automatically aligning to sloped or uneven surfaces. This ensures full contact and prevents damage to the load while maintaining a secure grip.

Dual-Function Grip Capability

The ML8K’s dual grip design makes it highly adaptable on-site. In standard compression mode, the lifter grips objects from 10" to 48" externally. When reversed, it operates in expansion mode, gripping from 29" to 60" internally. This flexibility allows a single attachment to manage multiple material types, minimizing equipment changes and maximizing efficiency.

Customizable and Accessory-Ready

The ML8K10T48V1 can be tailored for different lifting tasks with optional leg extensions, standoffs, and pad replacements. These add-ons make it easy to accommodate thicker materials, larger surfaces, or special shapes while maintaining full lifting stability.

Each model is crafted for rugged performance and built to meet the needs of contractors, municipalities, and precast facilities seeking reliability and efficiency from a single lifting tool.

Pivoting Pads and Smooth Operation

The circular pad assemblies are made to pivot 360°, allowing each pad to automatically align with the load’s surface. This minimizes the risk of edge damage and provides smoother, more controlled handling of delicate or uneven materials. Operators benefit from improved safety and precision during each lift.

Proudly Made in the USA

Like all Kenco lifting devices, the ML8K10T48V1 Multi-Lift is manufactured in Ligonier, Pennsylvania, and built to withstand years of heavy-duty use. Its proven, patented design provides contractors with long-lasting performance and the flexibility to handle countless applications in the field.

Specifications

• Capacity: 8,000 lb

• Grip Range (Standard): 10" to 48"

• Grip Range (Reversed): 29" to 60"

• Pad Assembly: Pivoting circular pads

• Shipping Dimensions: 52" x 12" x 36"

• Shipping Weight: 550 lb

• Manufacturer: Kenco Lifting Products, Ligonier, Pennsylvania
