Kenco Multilift System (ML12K10T88V1)

Kenco Multi-Lift – Versatile Precast Lifting Solution

Kenco ML12K14T88V1 Multi-Lift Must-Know Adjustable Lifting Performance

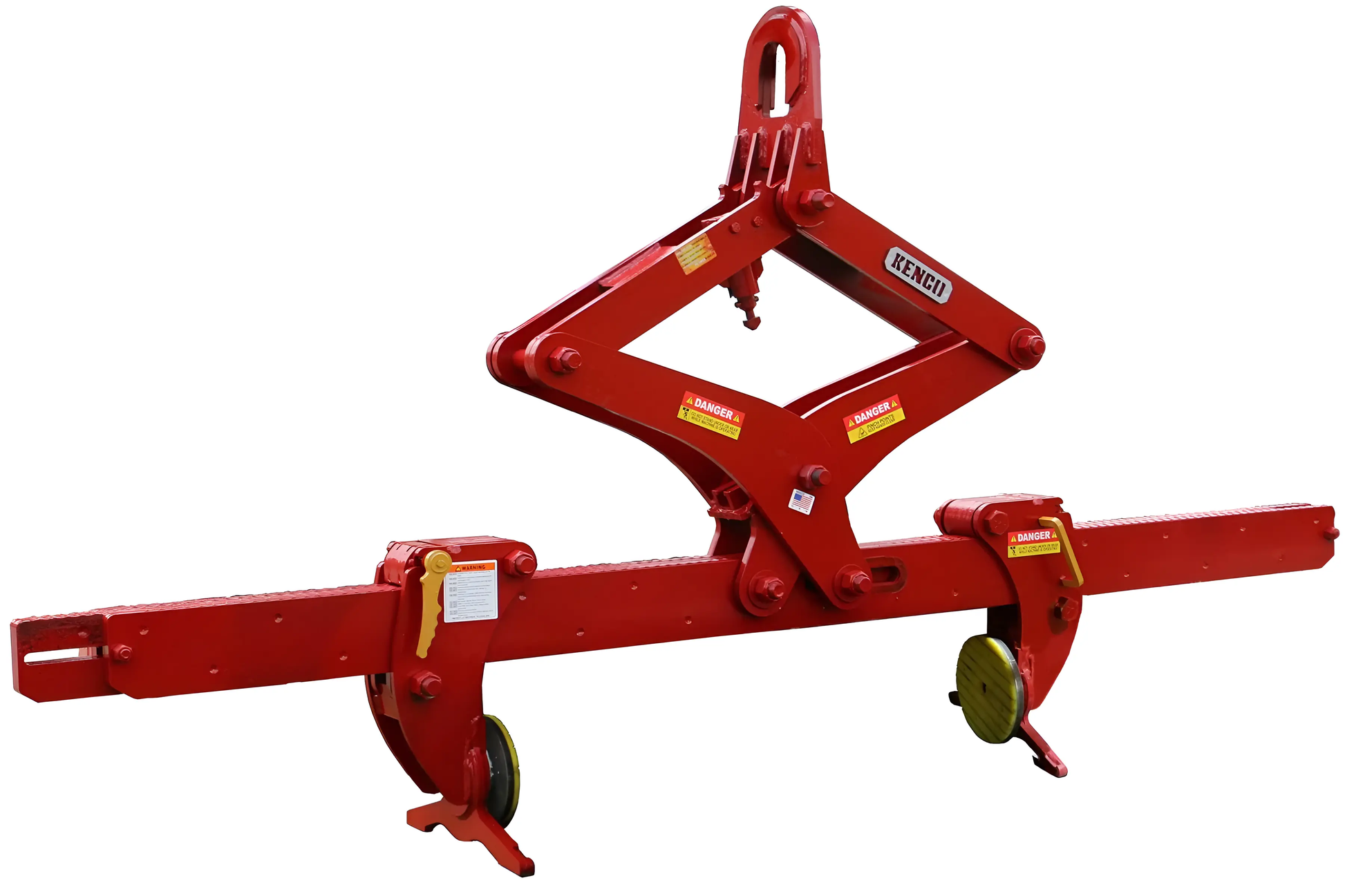

The Kenco ML12K14T88V1 Multi-Lift is a powerful and versatile tool designed to move a wide range of precast and heavy objects such as concrete blocks, sidewalk pads, catch basins, and other precast components. With a 12,000 lb lifting capacity and an adjustable design, it gives contractors the flexibility to handle objects of various shapes and widths safely and efficiently.

Engineered for maximum versatility, the ML12K14T88V1 features fully adjustable sliding legs, which can be set to the desired width or reversed to change from compression (inward) gripping to expansion (outward) gripping. This capability allows a single lifter to handle both internal and external grip requirements with ease.

Features:

• 12,000 lb Capacity: Safely lifts a wide variety of precast and heavy materials.

• Adjustable Grip Width: Handles objects from 14" to 88" wide in the standard setup.

• Reversible Leg Design: Switch leg positions to expand grip range from 38" to 112" for inside-to-outside lifting.

• 360° Pivoting Pads: Circular pad assemblies pivot in all directions for full-surface contact.

• Compression or Expansion Grip: Easily switch between inward or outward gripping functions.

• Fully Adjustable Legs: Legs slide smoothly to accommodate different object widths.

• Customizable Options: Standard accessories include leg extensions, pad replacements, and standoffs.

• Patented Design: Proudly designed and manufactured by Kenco Lifting Products in Ligonier, Pennsylvania.

Product Description:

The Kenco ML12K14T88V1 Multi-Lift delivers unmatched flexibility in handling precast and concrete materials. Built with contractor efficiency in mind, this multi-use lifter can move items such as concrete blocks, catch basins, and sidewalk pads quickly and safely, reducing labor costs and installation time.

With its 12,000 lb lifting capacity, the ML12K handles both large and irregularly shaped materials while maintaining secure, stable contact through its pivoting circular pad assemblies. Each pad pivots freely in all directions, ensuring maximum surface coverage and even pressure distribution, preventing chipping or surface damage to concrete products.

The adjustable sliding-leg design makes setup quick and straightforward. Contractors can simply slide the legs to the desired width to grip objects externally or reverse the legs to operate in expansion mode, gripping from the inside outward. This dual-mode functionality makes the ML12K one of the most adaptable precast lifting tools in the industry.

Dual-Function Grip Capability

The ML12K14T88V1 can be configured for compression grip (external clamping) or expansion grip (internal pushing). When in standard compression mode, it can handle blocks 14" to 88" wide. By switching the legs to the opposing sides, the same lifter operates in expansion mode, gripping from 38" to 112", providing exceptional flexibility for varied load sizes.

Pivoting Pads and Customization

The circular pad assemblies rotate freely in all directions, automatically aligning to the surface angle of the load. This ensures smooth lifting and prevents uneven pressure that could damage delicate or irregular surfaces. The ML12K14T88V1 also supports optional upgrades such as pad replacements, leg extensions, and adjustable standoffs, allowing contractors to tailor the lifter to specific site needs.

Built for Strength and Longevity

Constructed from heavy-duty materials, the ML12K14T88V1 is built for daily professional use. The reinforced frame and patented design deliver strength, stability, and performance under tough jobsite conditions. Every Kenco Multi-Lift is designed, built, and tested in Ligonier, Pennsylvania, ensuring American-made quality that professionals can trust.

Specifications

• Capacity: 12,000 lb

• Grip Range (Standard): 14" to 88"

• Grip Range (Reversed): 38" to 112"

• Pad Type: 360° pivoting circular pad assemblies

• Shipping Dimensions: 112" x 24" x 48"

• Shipping Weight: 1,230 lb

• Manufacturer: Kenco Lifting Products, Ligonier, Pennsylvania
