Kenco Barrier Lift (KL30K6T12)

Kenco Concrete Barrier Lift – Heavy-Duty Lifting Solution

Kenco KL30000 Barrier Lift Must-Know Ultra Heavy-Duty Barrier Handling
The KL30000 Barrier Lift is engineered for superior performance, durability, and control. Capable of lifting up to 30,000 lb with a 6" to 12" grip range, it handles barriers up to 40 feet long. Featuring Kenco’s patented scissor-action mechanism and durable elastomer pads, this lifter provides accurate placement without any hydraulic hookups, ensuring consistent and safe operation every time.

Features:

• 30,000 lb Lift: Built for extreme lifting power, ideal for long and heavy concrete jersey barriers.

• Grip Range 6” to 12”: Handles a wide range of wall sizes, including standard, single, and F-shape barriers.

• Fully Automatic Operation: Locks, lifts, and releases automatically with no need for manual adjustments.

• Secure Surface Contact: Large Kenco-branded elastomer pads conform to wall angles for full-surface grip without damage.

• Rugged Construction: Heavy-duty steel frame ensures years of dependable, jobsite-ready performance.

Product Description:

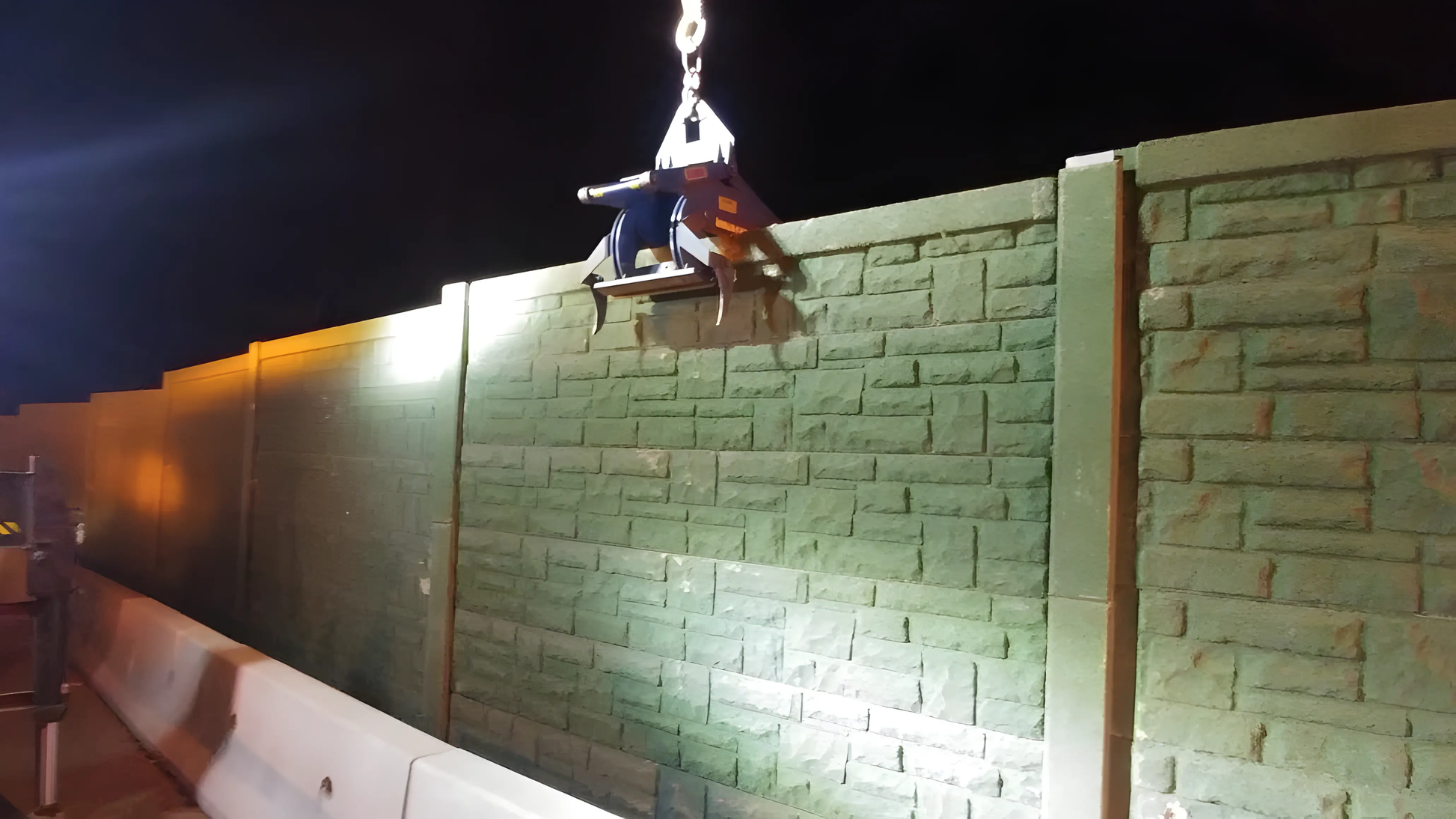

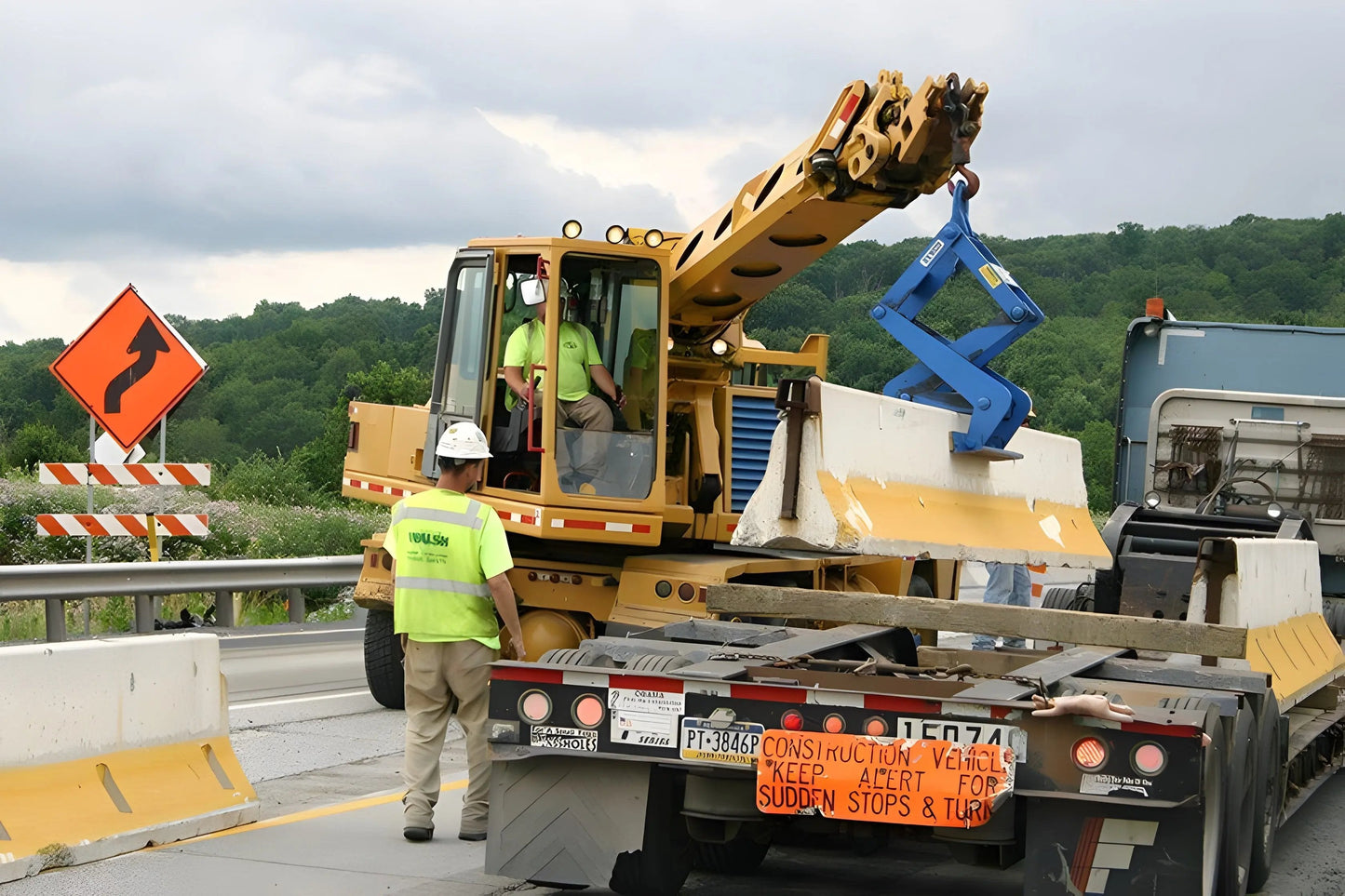

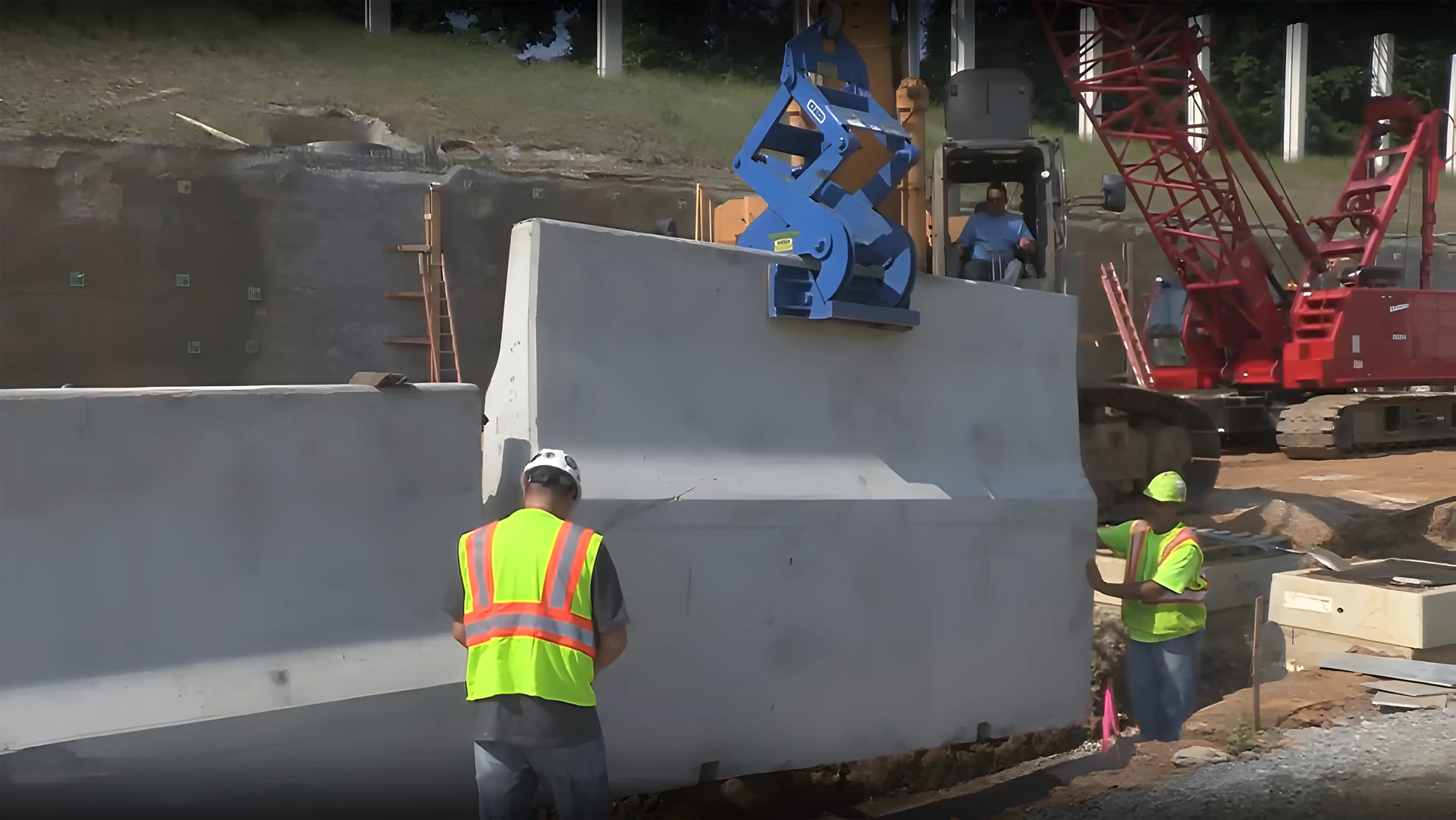

The Kenco KL30000 Barrier Lift is the strongest, safest, and most trusted heavy-duty lifter in the industry. Designed for lifting jersey barriers, sound walls, and concrete slabs, this model delivers maximum performance for highway construction, municipal projects, and industrial site management. With a 30,000 lb capacity and 6"–12" adjustable grip range, it easily lifts and positions wall sections up to 40 feet long, making it one of the most capable barrier handling tools available.

Engineered for rugged reliability, the KL30000 requires no auxiliary hydraulics, thanks to Kenco’s patented scissor-action design. The mechanism operates automatically: once placed on the wall, the actuator locks closed to begin the lift. As the wall is raised, the swiveling elastomer pads adjust to match the slope of the barrier, gripping securely without damaging the concrete. When the wall is set back on the ground, tension releases automatically, and the tongs open for the next pick.

High Precision Lifting of Concrete Barriers

Accuracy and control define the KL30000. Its balanced scissor design allows for steady, precise lifting and placement of barriers of various shapes and sizes. Whether handling F-shape, single, or traditional jersey walls, the KL30000 ensures smooth and stable operation, minimizing movement and maximizing alignment accuracy during setup.

No Need for Hydraulic Connections

This lifter functions entirely mechanically, eliminating the need for hydraulic systems or power sources. By removing hoses, pumps, and fluids, Kenco simplifies setup and reduces long-term maintenance. Crews save valuable time while improving reliability, especially in continuous-use projects where uptime is essential.

Range of a Versatile Grip and Durable Pads

The 6" to 12" adjustable grip makes the KL30000 versatile enough to handle most standard and custom wall widths. The large elastomer pads not only provide a superior grip but also protect the barrier surface from chipping and wear. Swiveling pad angles automatically conform to each wall’s slope, maintaining full-surface contact for maximum security during lifts.

Automatic Tension Release for Smooth Transitions

Once the wall is set, the actuator automatically releases tension, and the tongs open instantly for the next lift. This fully automatic feature speeds up workflow, reduces operator effort, and enhances overall jobsite efficiency. It allows for quick and safe transitions between lifting cycles without manual intervention.

Ideal for Heavy-Duty Applications

The KL30000 is designed for demanding projects that require strength, safety, and precision. It is commonly used by contractors, DOT crews, and municipalities across the U.S.—especially in New York and Texas—for barrier and sound wall handling. For projects requiring more than a 15-ton capacity, the larger KL40000 model is recommended.

Rugged Construction and Proven Safety

Built with professional engineering and high-grade materials, the KL30000 Barrier Lift meets ANSI/ASME B30.20 and BTH-1 standards with a minimum safety factor of 3:1. Each unit is designed for long-term durability and reliable performance in tough jobsite conditions. Its heavy-duty frame and replaceable components ensure long service life, even in high-volume lifting environments.

Superior Lifting Capacity

With its 30,000 lb working load, the KL30000 provides unmatched lifting power while maintaining full control and precision. The design ensures balanced lifting for long and heavy barriers, giving operators confidence in every move. Combined with Kenco’s decades of proven reliability, this model remains the industry benchmark for large-scale barrier handling.

Specifications

• Capacity: 30,000 lb

• Grip Range: 6" to 12"

• Wall Length: Up to 40 ft

• Shipping Dimensions: 46" x 36" x 46"

• Shipping Weight: 1,200 lb

• Safety Factor: 3:1
