Katool | Tire Changer | Hydraulic Truck | KT-TV910

Discover the Katool Tire Changer for Effective Tire Handling

Features:

• Heavy Duty Electro-Hydraulic System: truck, bus, agricultural and earth-moving vehicles.
• Huge Clamping Capacity:Can clamp externally from 14h to 42h wheels, achieving greater service of coverage.
• MultiFunc. Command Controls: Enables safe operation from any position, thus enhancing user convenience.
• Bead breaking power and disk mechanism allows accurate bead breaking and prevents damage on sensitive rim parts.
• Ergonomic Design:Strategically positioned foot pedals and controls to minimize training and decrease error.

Product Description:

Engineered for Tough Performance

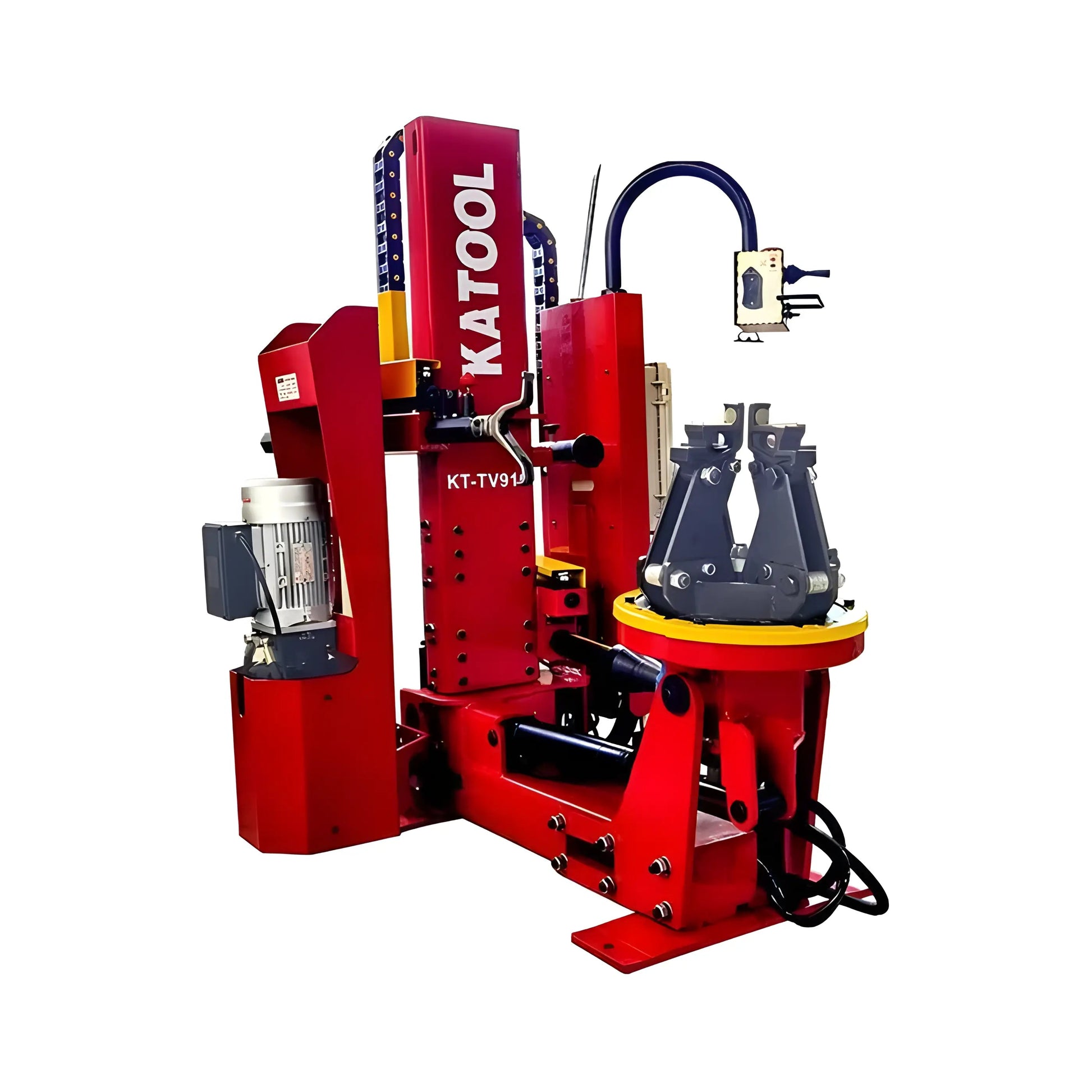

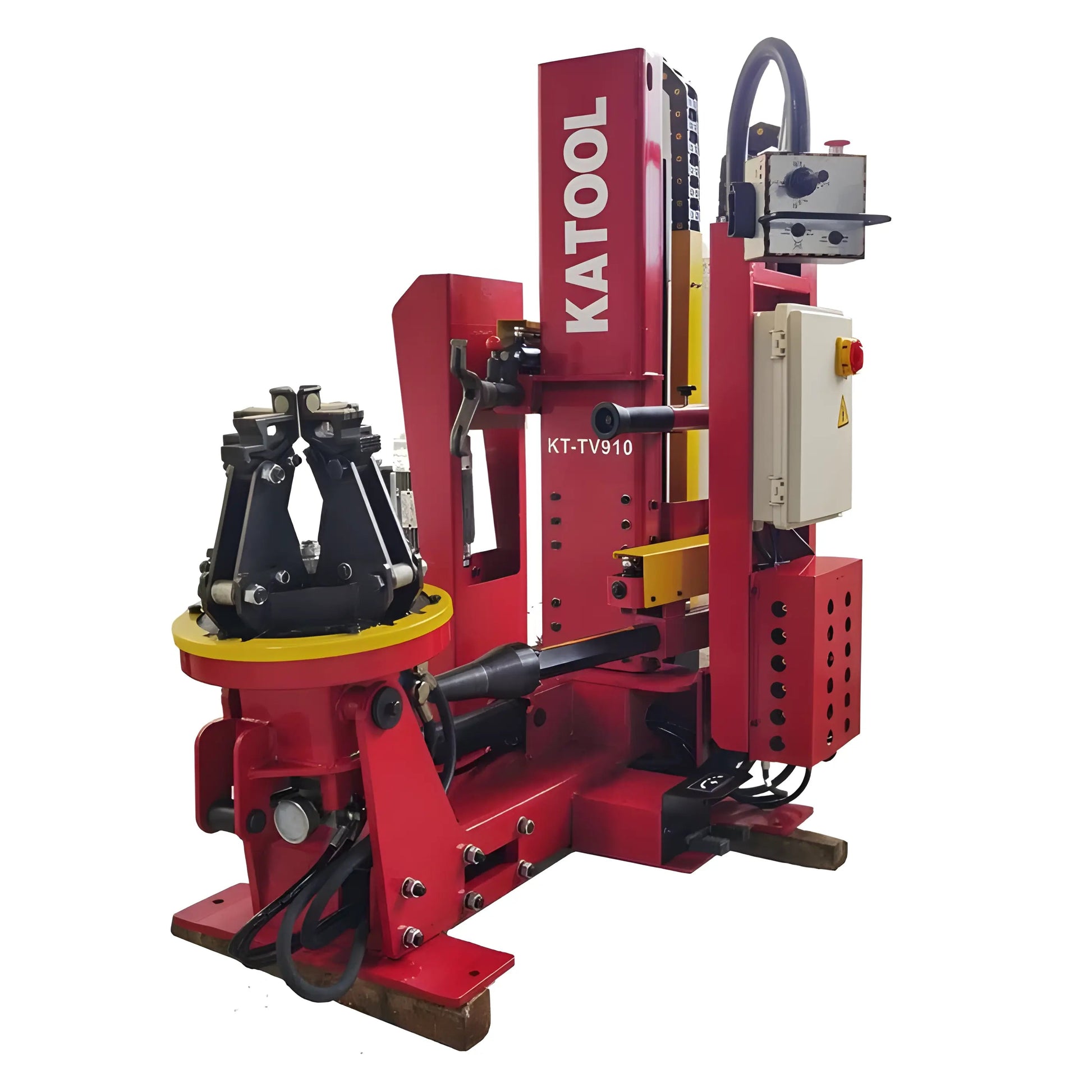

The Katool KT-TV910 Hydraulic Truck Tire Changer is designed for heavy-duty demands. It is ideal for servicing tires on trucks, buses, tractors and earth-moving machinery Its electro-hydraulic system provides uniform and powerful operation.

Versatile Expanding Clamping Capacity for Various Applications

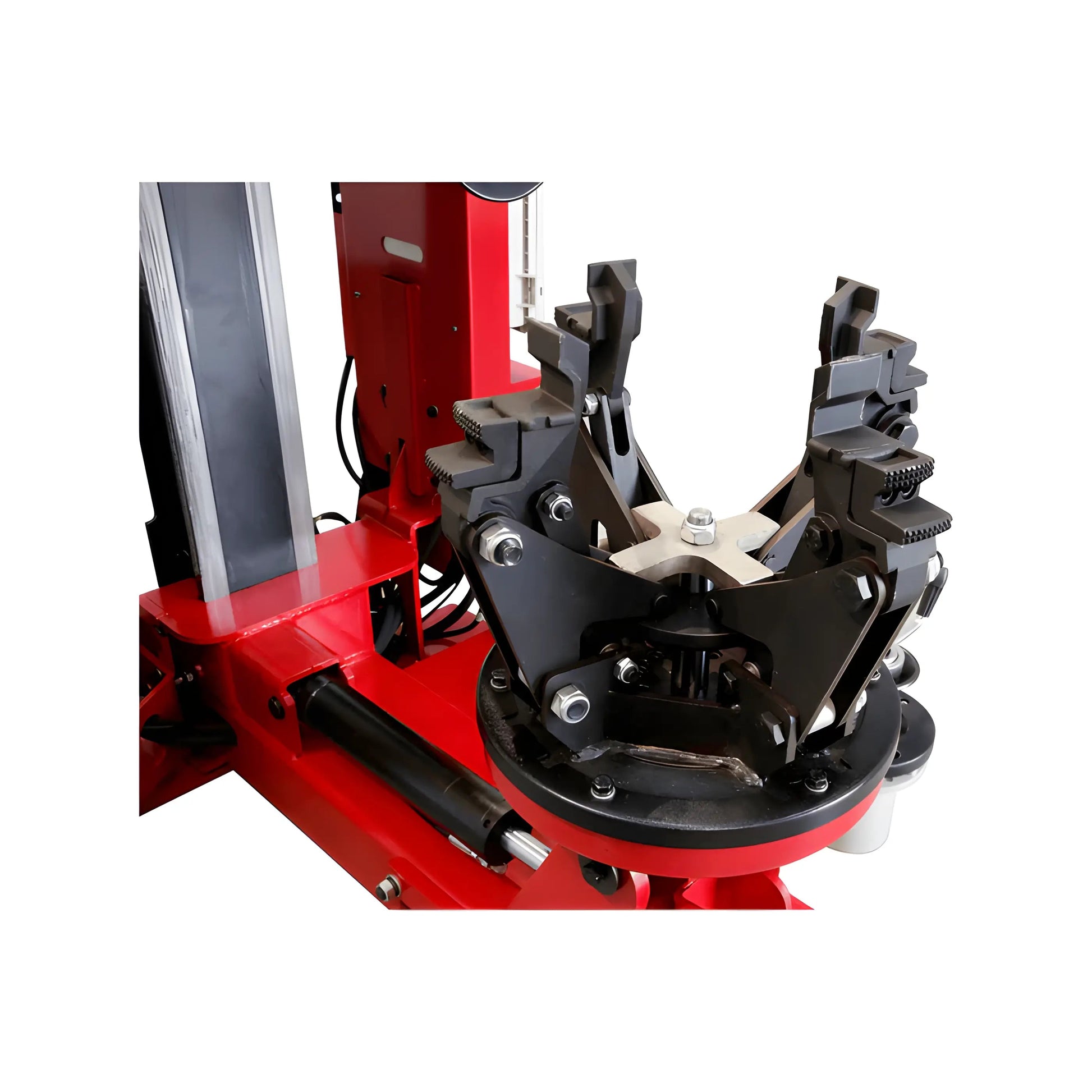

One feature that makes the KT-TV910 stand out is its large clamping capacity. It plays well with wheels measuring between 14 and a whopping 42 inches in diameter, allowing it to service wheels that are well beyond anything else on the road. This enables one machine to cater to a wide variety of wheel sizes, thus eliminating the potential for having numerous dedicated changers.

And, operating must be easy and safe

Operator safety and convenience is top of mind when it comes to the multifunctional controls of the machine. The controls enable the user to safely operate the tire changer from any point of access, greatly improving operational efficiency and minimizing fatigue. A strong beak and disk mechanism allows for quick and precise bead breaking, which is key to not damaging the tire and rim, particularly when servicing delicate or high-value wheels.

Increase in Efficiency with Ergonomic Design

One of the greatest trouble mechanisms on the KT-TV910 is ergonomics. Reducing the learning curve for new operators and virtually eliminating errors, the foot pedals are intuitively placed to match natural movements. Helper controls are usable at the point of use, with all required functions available in an efficient manner, streamlining the process of changing a tire.

Operator Safety Features

Safety with heavy-duty equipment is paramount, and low-voltage electric components assure that with the KT-TV910. This makes sure that the user has no risk of being electrocuted while the device is on.

More About Specs, Efficiency, and Usability

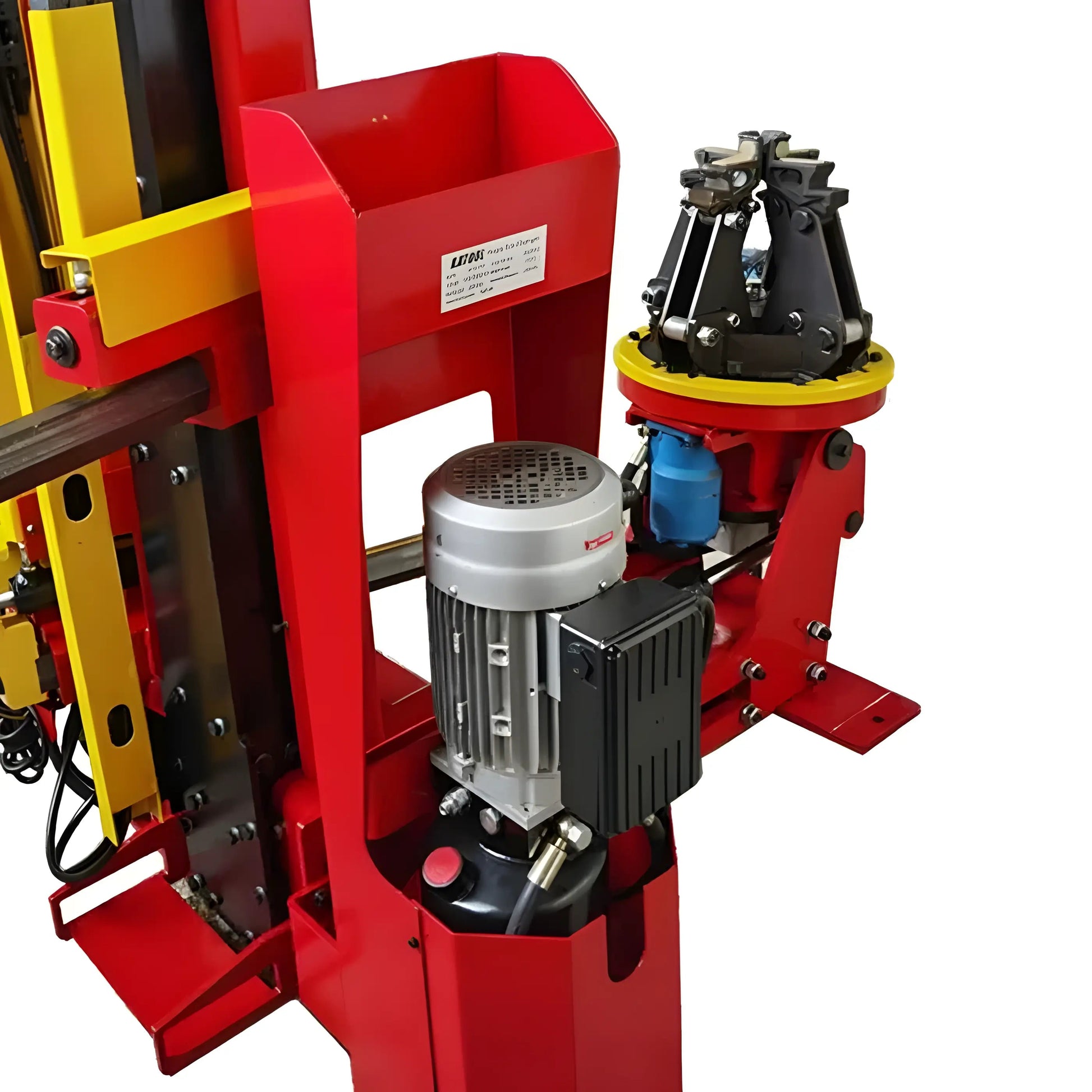

The KT-TV910 has a working pressure of ≤130 bar and a power supply of 220V 1PH/60HZ. The hydraulic motor has a power of 3.0 KW (around 4.0 HP) which gives it the needed force to play with even the most stubborn tire. It can handle wheels up to 63 inches in diameter (1,600mm) and 31 inches in width (780mm), well-suited to a variety of heavy-duty vehicles.

Low-noise and Compact Operation

The KT-TV910 is an ergonomic design as well. Weighing in at a net of 1256lbs (570KG) with shipping dimensions of 51'' x 43'' x 72'' (1300mm x 1100mm x 1830mm); there will be some planning involved to ensure you have adequate installation footprint along with transporting the machine itself. The noise is maintained below 70 DB(A) to allow better comfort for operators and the workplace (better working environment).

This Is A Must-Have For Heavy-Duty Tire Service Centers

Overall, If you are looking for a heavy-duty solution for changing truck tires looks no further than the Katool KT-TV910 Hydraulic Truck Tire Changer. Its combination of a solid build, versatility, ease of use, and safety equipment make it an indispensable addition to any service center that works on big machinery. With this innovative and efficient tire servicing machine, the KT-TV910 providing the highest levels of efficiency and safety for operators, all within a design that is easy to use, making it well worth the investment for your business.

Efficient Tire Changing with Katool Tire Changer

The Katool Tire Changer is a cutting-edge tool designed to simplify the tire changing process. With its hydraulic lifting mechanism, this tire changer provides optimum efficiency while handling both passenger and commercial tires. It’s built to withstand tough environments, making it an ideal choice for busy workshops and truck repair centers. Because of its design, mechanics can switch out tires swiftly, reducing downtime and increasing productivity.

Robust Hydraulic System for Heavy-Duty Use

This tire changer features a strong hydraulic system that ensures reliable operation, even in high-demand situations. The hydraulic lift allows for easy elevation of tires, minimizing physical strain on the operator. Moreover, the durable materials used in its construction guarantee long-lasting performance. So, whether you are changing tires for light trucks or heavy vehicles, the Katool Tire Changer is designed to meet your needs efficiently.

User-Friendly Interface and Safety Features

The Katool Tire Changer is not only powerful but also incredibly user-friendly. Its intuitive controls make it easy for anyone to operate, regardless of their level of experience. Additionally, safety is a top priority, as the tire changer is equipped with protective features that prevent accidents during operation. Therefore, you can work confidently knowing that both you and the equipment are safeguarded while performing tire changes.
