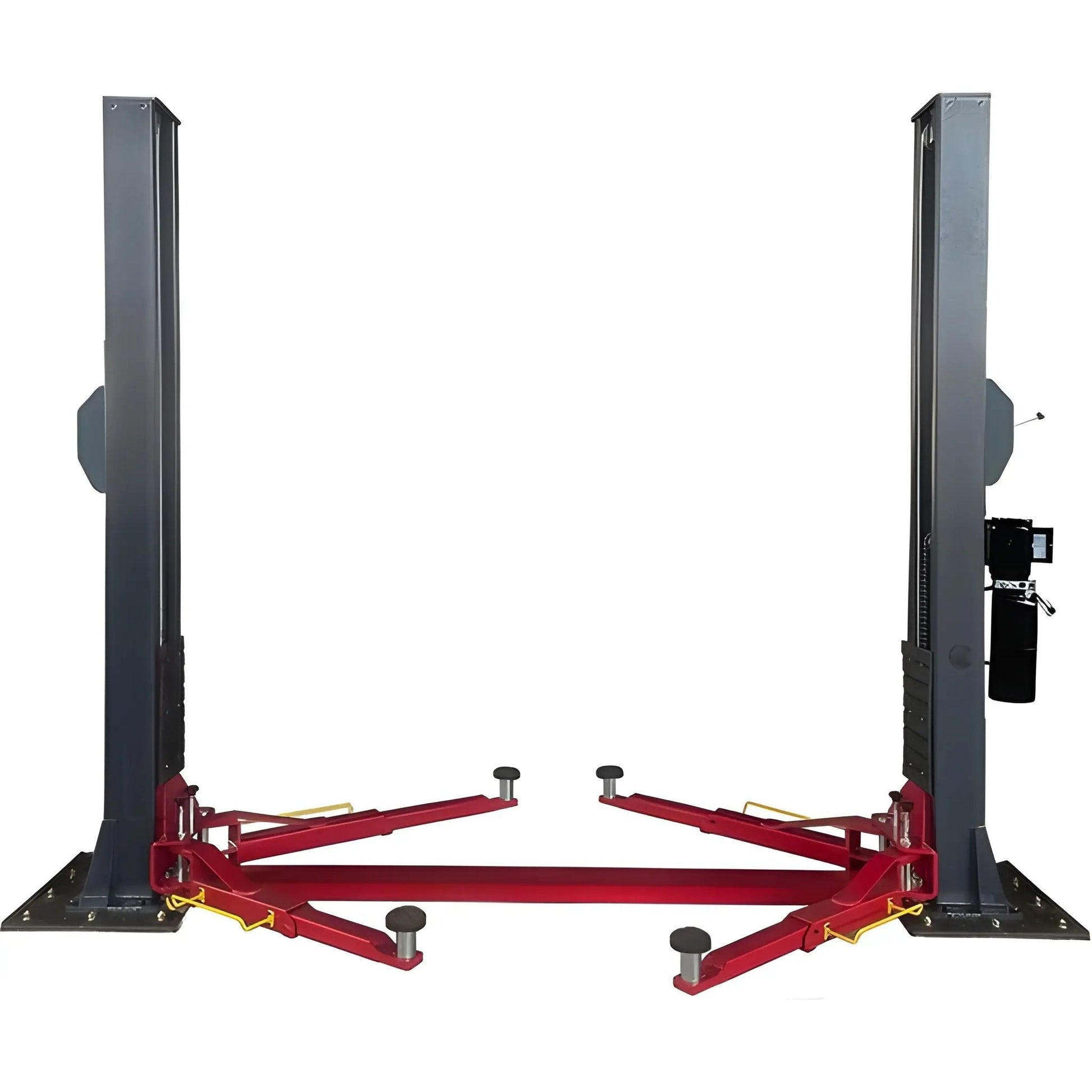

Katool KT-H120D 12,000lbs Two Post Lift Single Lock Release Auto Lift Car Lift

Katool KT-H120D 12,000lbs Two Post Lift – Power and Precision for Your Workshop

The Katool KT-H120D Two Post Lift is engineered to deliver reliable and efficient performance in demanding automotive environments. With a lifting capacity of 12,000 lbs, this two-post lift is perfect for handling a wide range of vehicles, from compact cars to light trucks. Whether you're running a professional repair shop or working on personal projects, the KT-H120D offers the power and precision required to safely lift and support vehicles.

Equipped with a manual safety release from a single side, this lift ensures safety and ease of use during operation. The symmetric arm design, combined with a base plate configuration and dual hydraulic chain-drive cylinders, guarantees balanced lifting and stability throughout the lifting process. Whether you're raising heavy vehicles or maneuvering them, the lift’s steady and secure operation provides peace of mind.

The rubber pad door opening protection is an essential feature that prevents vehicle damage during lifting, while the screw-on pads and extension support adaptor sets (+100mm) offer additional versatility, making the lift adaptable to various vehicle types. The KT-H120D's hydraulic system is powered by a top-level 220V/60HZ/1PH configuration, ensuring consistent, reliable performance that enhances the efficiency of your shop.

It’s crucial that this lift is installed on concrete that meets safety requirements. The minimum concrete thickness should be 5.9 inches (150 mm) with a 3000 PSI rating to ensure safe lifting operations. Failure to meet these specifications could result in serious injury or equipment failure, so customers are responsible for verifying the site’s concrete strength before installation.

Key Features

• 12,000 lbs Lifting Capacity: Capable of handling a wide range of vehicles with robust lifting power.

• Manual Safety Release: Operates with a safety release from a single side for added convenience.

• Symmetric Arm Design: Ensures balanced lifting and stable support for vehicles.

• Dual Hydraulic Chain-Drive Cylinders: Provides smooth, synchronized lifting performance.

• Rubber Pad Door Opening Protection: Prevents vehicle damage during the lifting process.

• Screw-on Pads & Extension Support Adaptor Sets (+100mm): Provides additional versatility for different vehicle types.

• 220V/60HZ/1PH Hydraulic System: Delivers consistent power for smooth, efficient operation.

Specifications

• Lifting Capacity: 12,000 lbs (5,500 kg)

• Height Overall: 110.94" (2,818 mm)

• Width Overall: 140" (3,555 mm)

• Drive-Thru Clearance: 98.43" (2,500 mm)

• Max. Lifting Height: 74.8" (1,900 mm)

• Item Weight: 120 lbs (54 kg)

• Product Dimensions: 112" x 18" x 36" (2,850 mm x 460 mm x 920 mm)

• Hydraulic System: 220V/60HZ/1PH
