Katool KT-4H150 15,000lbs 4 Post Alignment Lift With Rolling Jack

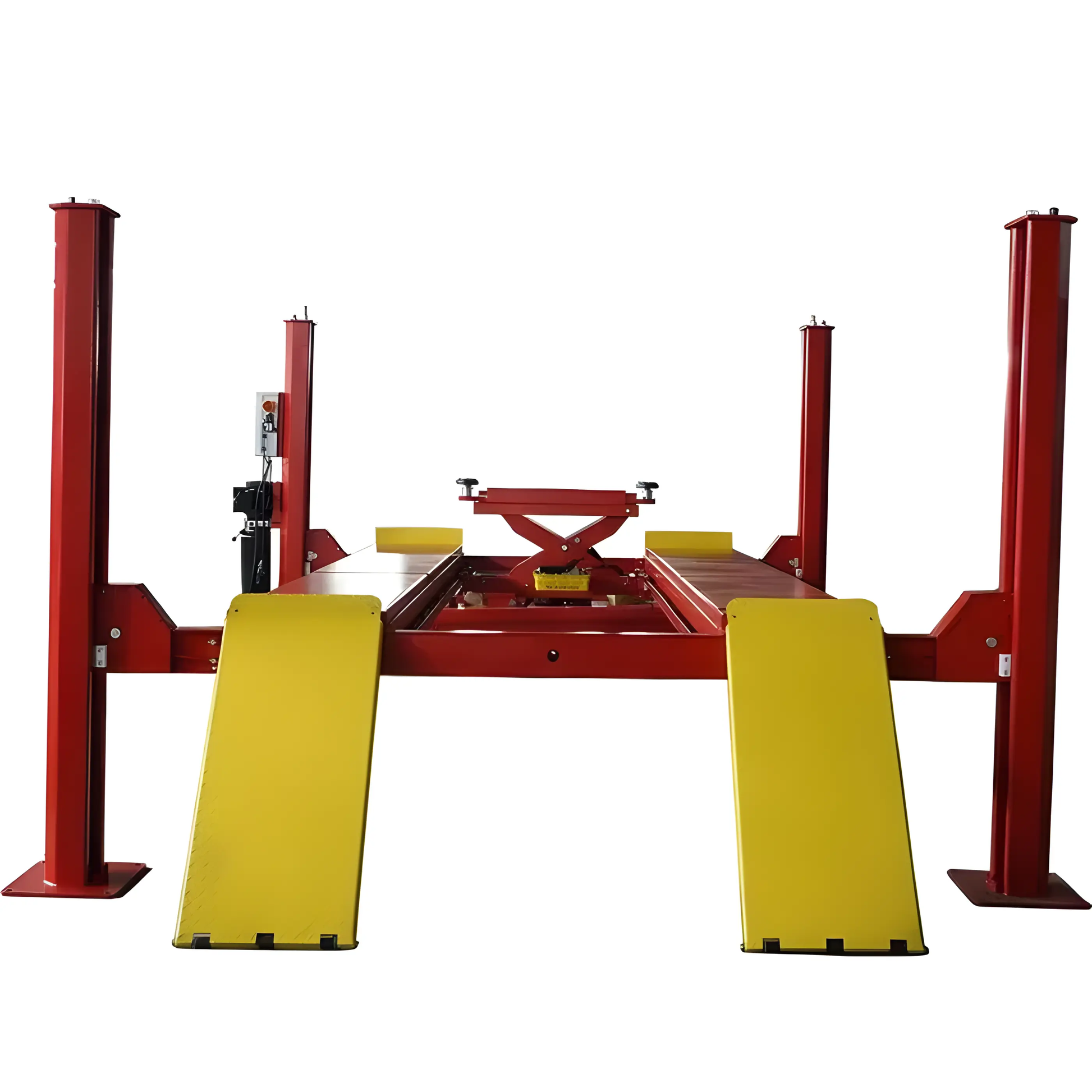

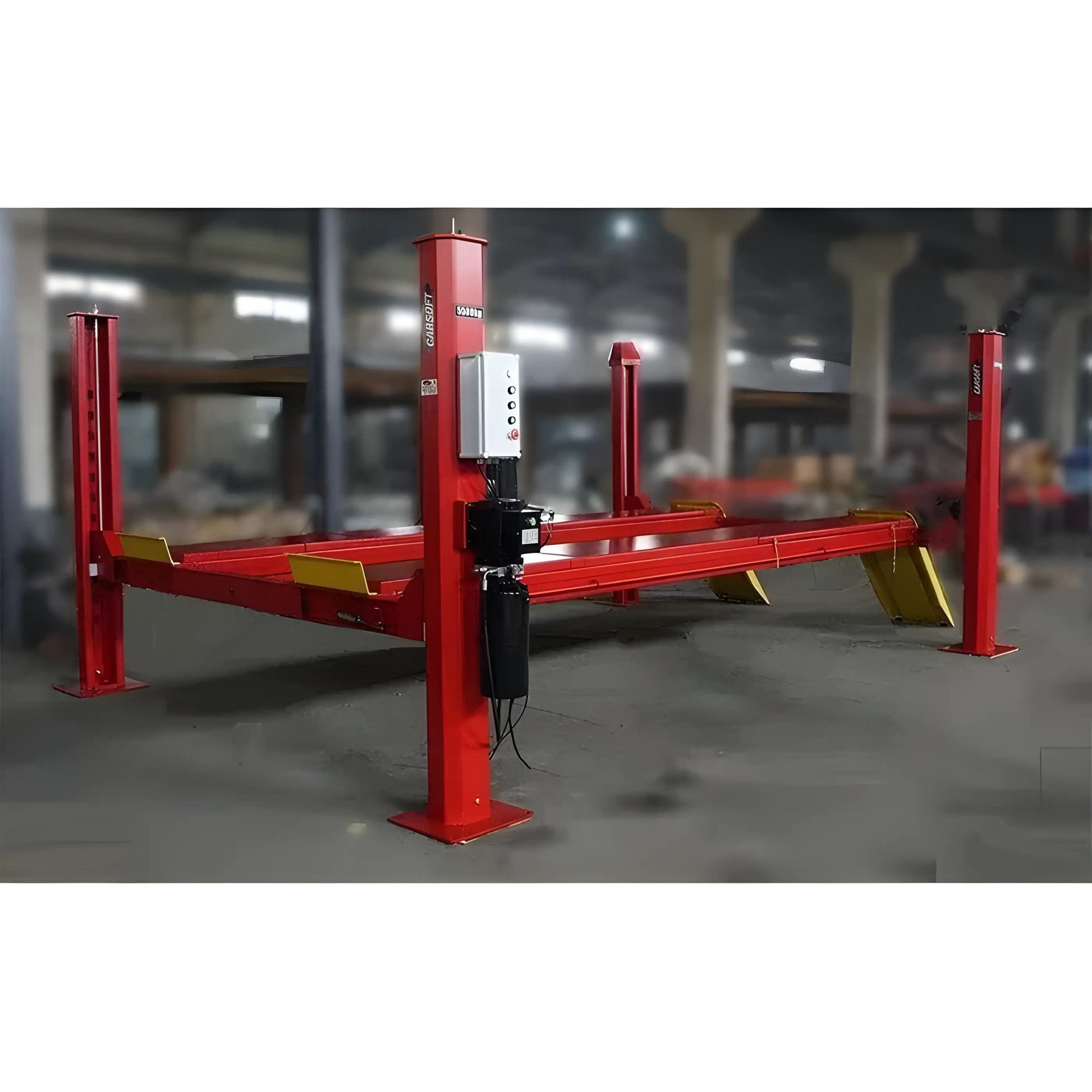

Katool KT-4H150 Heavy Duty 4-Post Alignment Lift

The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift delivers reliable performance with a 15,000 lbs lifting capacity. CE-approved and certified, it ensures safe and efficient operation with single-point manual locks, mechanical safety devices, non-skid diamond platforms, and a high-quality hydraulic system. Optional turn tables and included rolling jack make it versatile for heavy-duty vehicle alignment and lifting tasks.

Features

• Heavy-Duty Lifting Capacity: Supports vehicles up to 15,000 lbs (~6,803 kg).

• CE Approved & Certified: Meets 115% dynamic and 150% static load capacity standards.

• Single-Point Manual Safety Lock Release: Ensures secure and controlled operation.

• Four Mechanical Locking Devices: Equipped with primary and secondary safety locks.

• Non-Skid Diamond Platforms: Provides stability and operator safety during lifting.

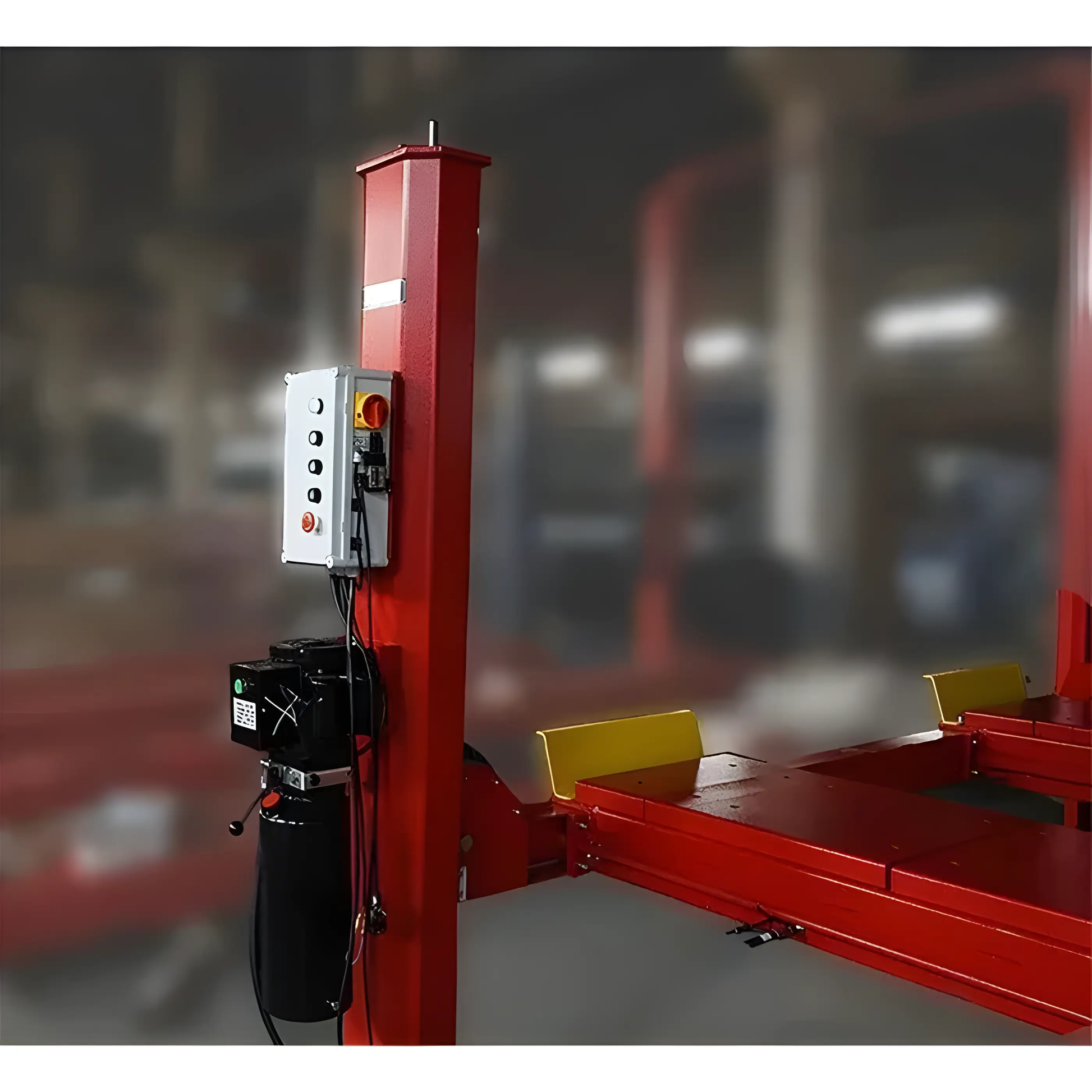

• High-Quality Hydraulic System: Powered by a 3KW motor, 220V/60HZ/1PH or optional 110V/60HZ/1PH.

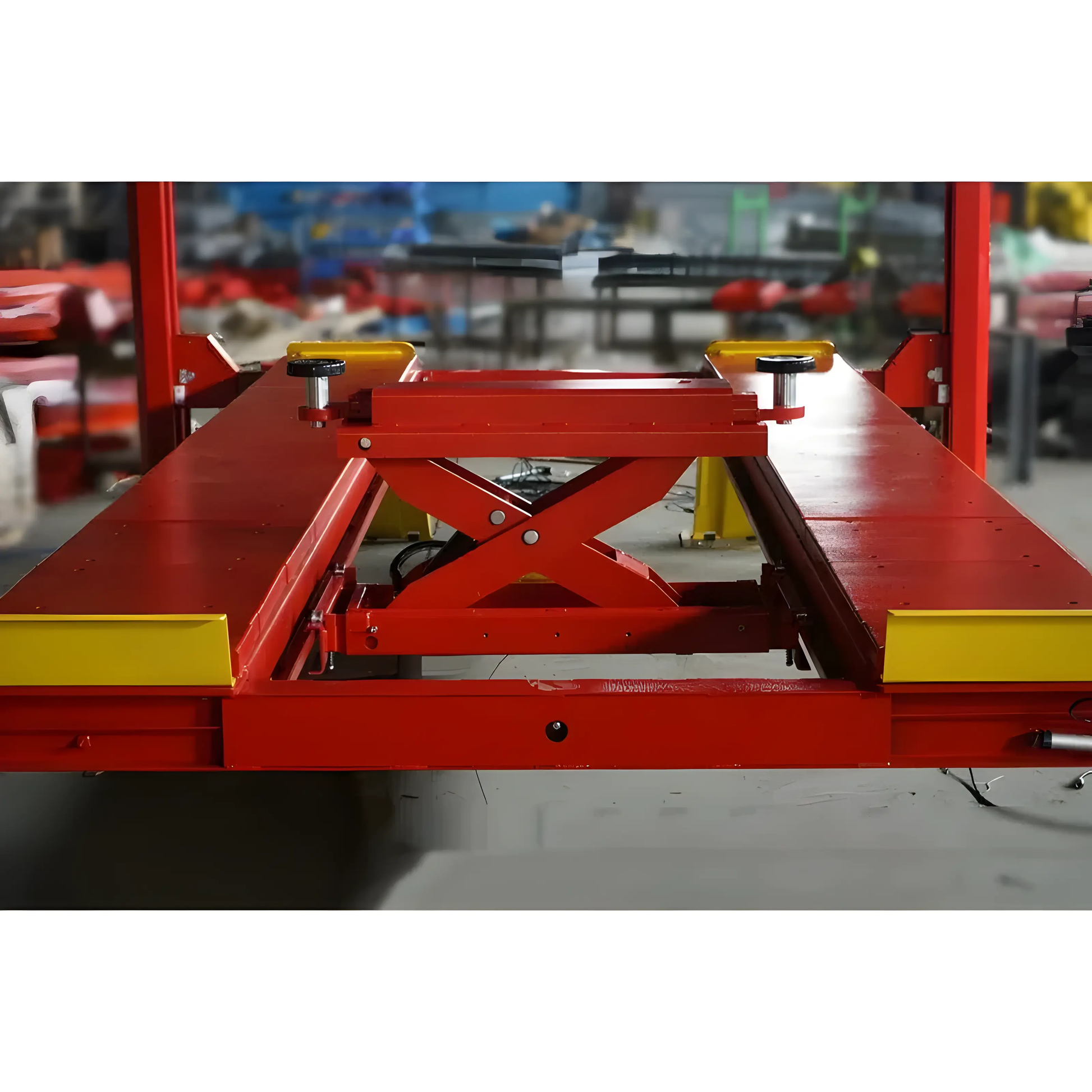

• Included Rolling Jack: 6,000 lbs rolling jack for added lifting convenience.

• Optional Turn Tables: Enhances versatility for wheel alignment tasks.

Specifications

• Lifting Capacity: 15,000 lbs (~6,803 kg)

• Maximum Lifting Height: 92.52" (2,350 mm)

• Lifting Time: 95s Up / 55s Down

• Height of Posts: 85.63" (2,175 mm)

• Width Overall: 136.06" (3,456 mm)

• Length Overall: 245.31" (6,231 mm, with ramps)

• Inside Columns: 118.11" (3,000 mm)

• Minimum Runway Height: 9.3" (236 mm)

• Motor: 220VAC/60HZ/1PH

• Net Weight: 4,850 lbs (2,200 kg)
