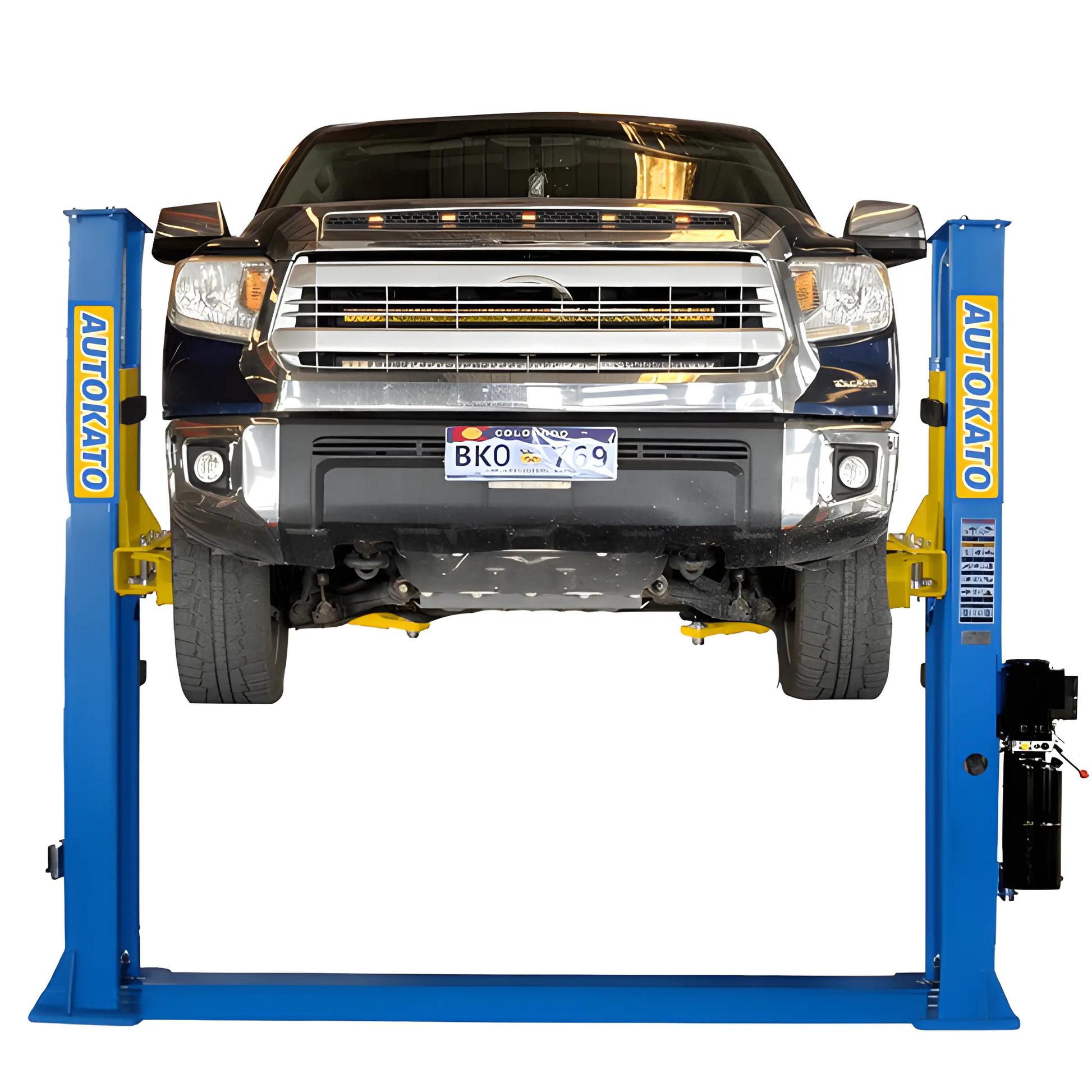

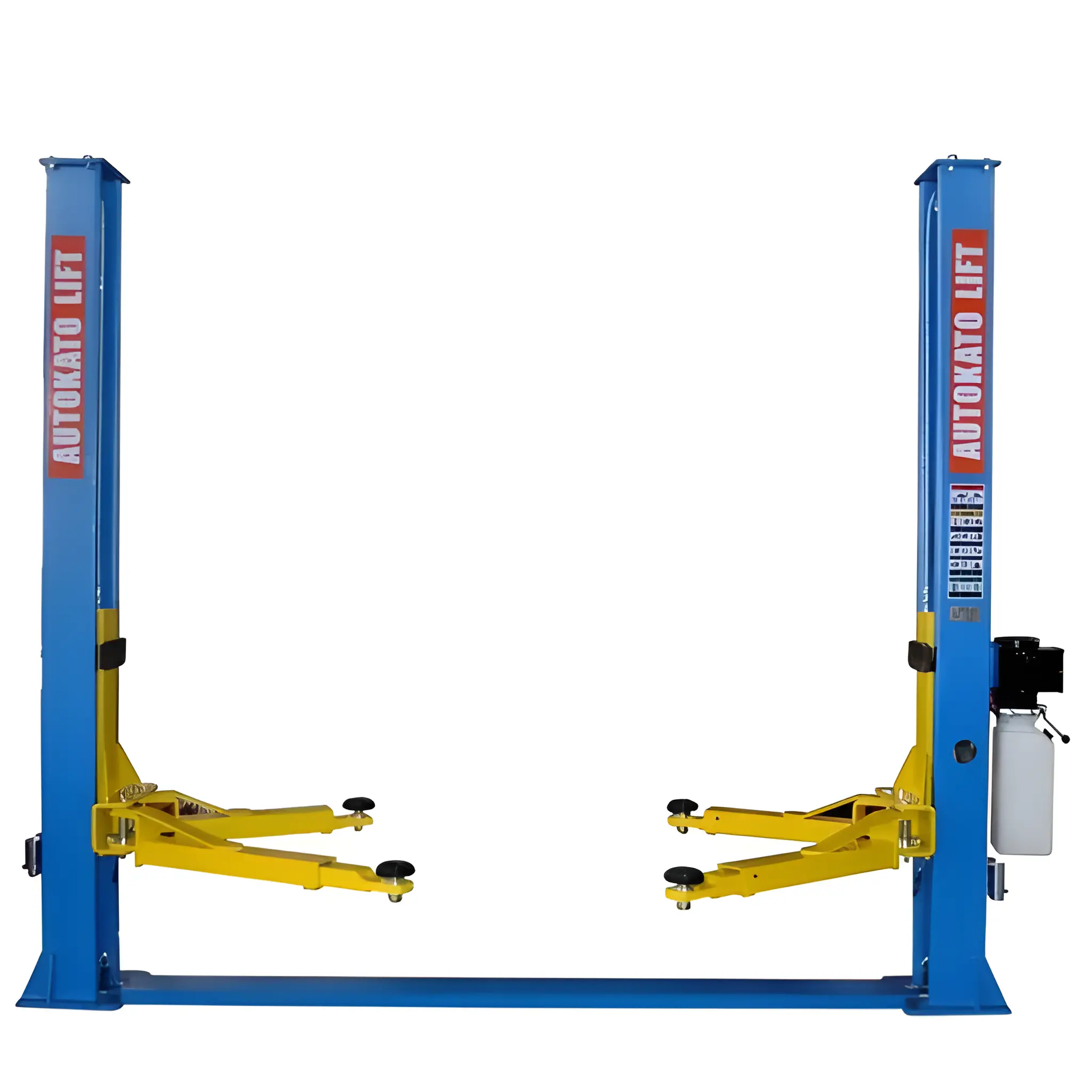

Katool H115Z 11,000lbs Two Post Lift

Katool H115Z 11,000lbs Two Post Lift – Powerful Performance for Heavy-Duty Lifting

The Katool H115Z Two Post Lift is a top-tier lifting solution designed for professionals and auto enthusiasts who need reliable, heavy-duty performance. With an impressive 11,000 lbs lifting capacity, this lift can easily handle everything from light trucks to heavier SUVs. Built to meet the demands of busy workshops, it combines robust strength with precise engineering to make every lift smooth and efficient.

Ease of Installation is key with the base-plate design, allowing for straightforward setup. The Lift Gate Service is available, making it possible to have the lift delivered directly to your location without needing additional unloading equipment. Whether you’re working in a commercial garage or a private shop, this lift ensures you have the lifting power needed for various vehicles.

Equipped with dual hydraulic chain-drive cylinders, the H115Z provides smooth and steady lifting action, while the 220V/60Hz hydraulic system guarantees consistent power, ensuring high reliability in the most demanding conditions. Its manual dual-side safety lock release allows for quick and secure locking, providing peace of mind while working.

The H115Z is designed to maximize workspace, featuring adjustable arms that allow you to fit different vehicle sizes. Rubber door guards protect your vehicles during operation, while the included screw-on pads and +100mm extension adapters provide added versatility, ensuring compatibility with a range of car and truck sizes.

Whether you’re lifting vehicles for repair, maintenance, or storage, the Katool H115Z 11,000lbs Two Post Lift delivers both the power and precision you need.

Key Features

• 11,000 lbs Lifting Capacity: Perfect for lifting heavy vehicles such as trucks and SUVs with ease.

• Dual Hydraulic Chain-Drive Cylinders: Ensures smooth and reliable lifting for consistent performance.

• Top-Level Hydraulic System: Powered by a 220V/60Hz motor for efficient and reliable operation.

• Base Plate Design: Simplifies installation and unloading, making setup quick and easy.

• Manual Safety Lock Release (Dual Side): Provides secure locking and efficient operation.

• Rubber Door Guards: Protects your vehicle during lifting, ensuring safety.

• Extension Adapters (+100mm): Includes screw-on pads for added versatility and compatibility.

• CE Approved: Meets stringent 115% dynamic and 150% static load capacity tests for safety.

Specifications

• Lifting Capacity: 11,000 lbs (5,000 kg)

• Max. Lifting Height: 70.8" (1,800 mm)

• Minimum Height: 3.9" (100 mm)

• Overall Height: 110.9" (2,818 mm)

• Overall Width: 140.4" (3,565 mm)

• Outside Column Width: 124.8" (3,170 mm)

• Inside Column Width: 110.2" (2,800 mm)

• Drive-Thru Clearance: 98.4" (2,500 mm)

• Front Arm Reach (Min): 29.5" (750 mm) – 2 stages

• Front Arm Reach (Max): 46" (1,170 mm) – 2 stages

• Rear Arm Reach (Min): 35.4" (900 mm) – 2 stages

• Rear Arm Reach (Max): 58.2" (1,480 mm) – 2 stages

• Motor: 220VAC / 60Hz / 1PH / 2.2KW

• Net Weight: 570 kg

• Design: Base Plate

• Safety Lock Release: Manual (Dual Side)

• Hydraulic System: Dual Chain-Drive Cylinders

• Rubber Door Guards: Included

• Extension Adapters: Screw-on Pads with +100mm Adapters

• Certification: CE Approved (115% dynamic / 150% static test)
