Katool C9372 Brake Lathe Machine

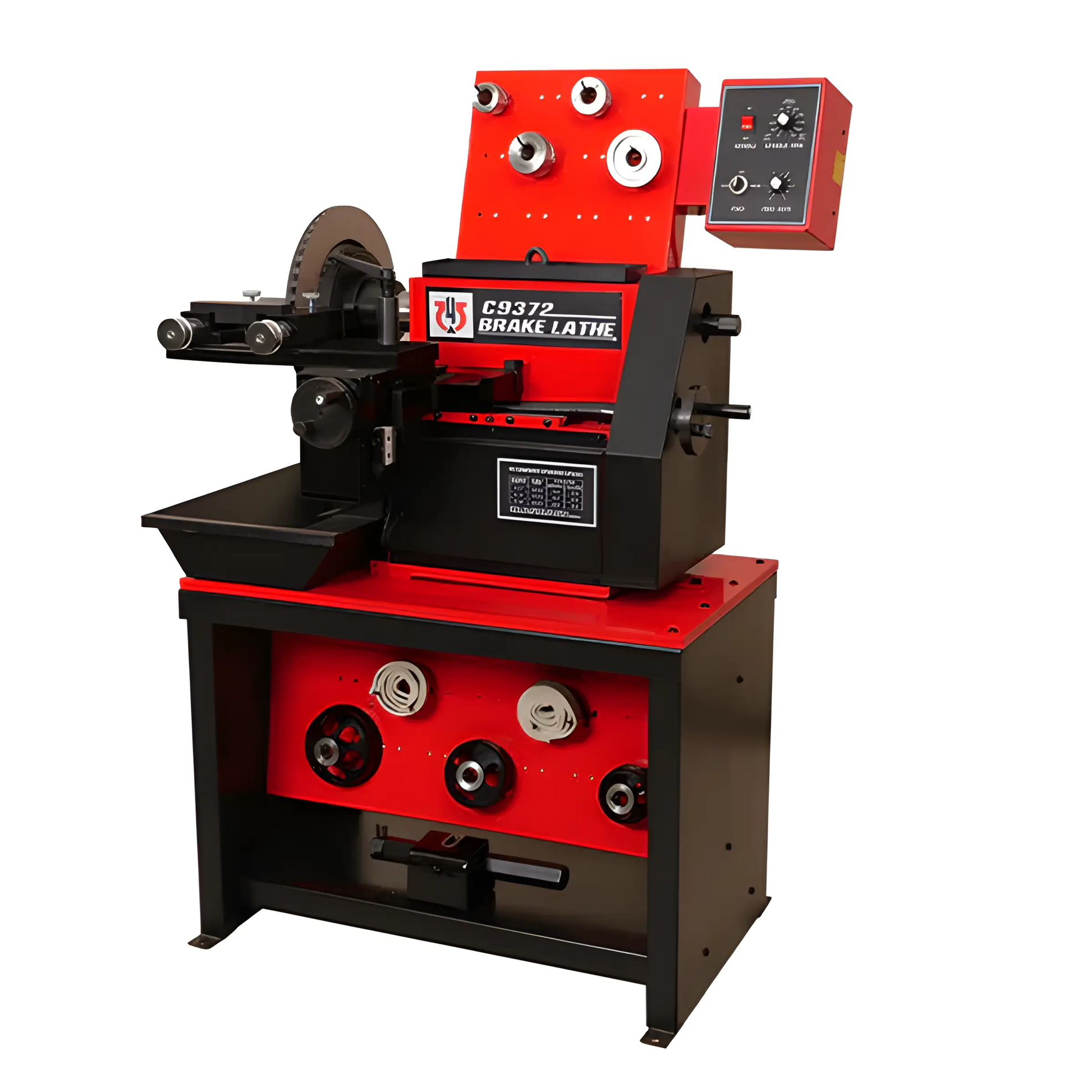

Katool C9372 Brake Lathe

The Katool C9372 Combination Disc and Drum Brake Lathe is a versatile and durable machining tool designed for a wide range of rotors and drums. Ideal for automotive workshops, it provides precise cutting, quick changeover, and enhanced operational efficiency. With adjustable feed rates, automatic stop function, and a comprehensive adapter package, this lathe delivers professional, high-quality results with ease.

Features

• Versatile Machining: Handles rotor diameters from 4" to 20" (102-508mm) and drum diameters from 6" to 19.5" (152-500mm).

• Adjustable Feed Rates: Infinitely adjustable feed allows precise control for rough and fine finishes.

• Quick Changeover: Convenient design for fast transitions between rotor and drum machining.

• Automatic Stop Function: Stops automatically after cutting, improving safety and workflow.

• Comprehensive Adapter Package: Fully equipped to handle various brake components and expand service capabilities.

Specifications

• Rotor Diameter: 4”-20” (102-508mm)

• Maximum Rotor Thickness: 2.85” (73mm)

• Drum Diameter: 6”-19.5” (152-500mm)

• Drum Depth: 6.5” (165mm)

• Flywheel Diameter: 6”-24” (152-610mm)

• Spindle Weight Capacity (Standard 1” Arbor): 150 lbs (68 Kg)

• Spindle Speed: 70-320 RPM

• Feed Rates - Rotor and Drum: 0”-0.026” (0mm-0.66mm)

• Feed Rates Per Minute: 2.54” (64.5mm)

• Shipping Weight: 661.3 lbs / 300 KG

• Motor: 110V/220V 50/60HZ

• Dimensions: 43.3 x 28.7 x 28.3 inches / 1100 x 730 x 720mm
