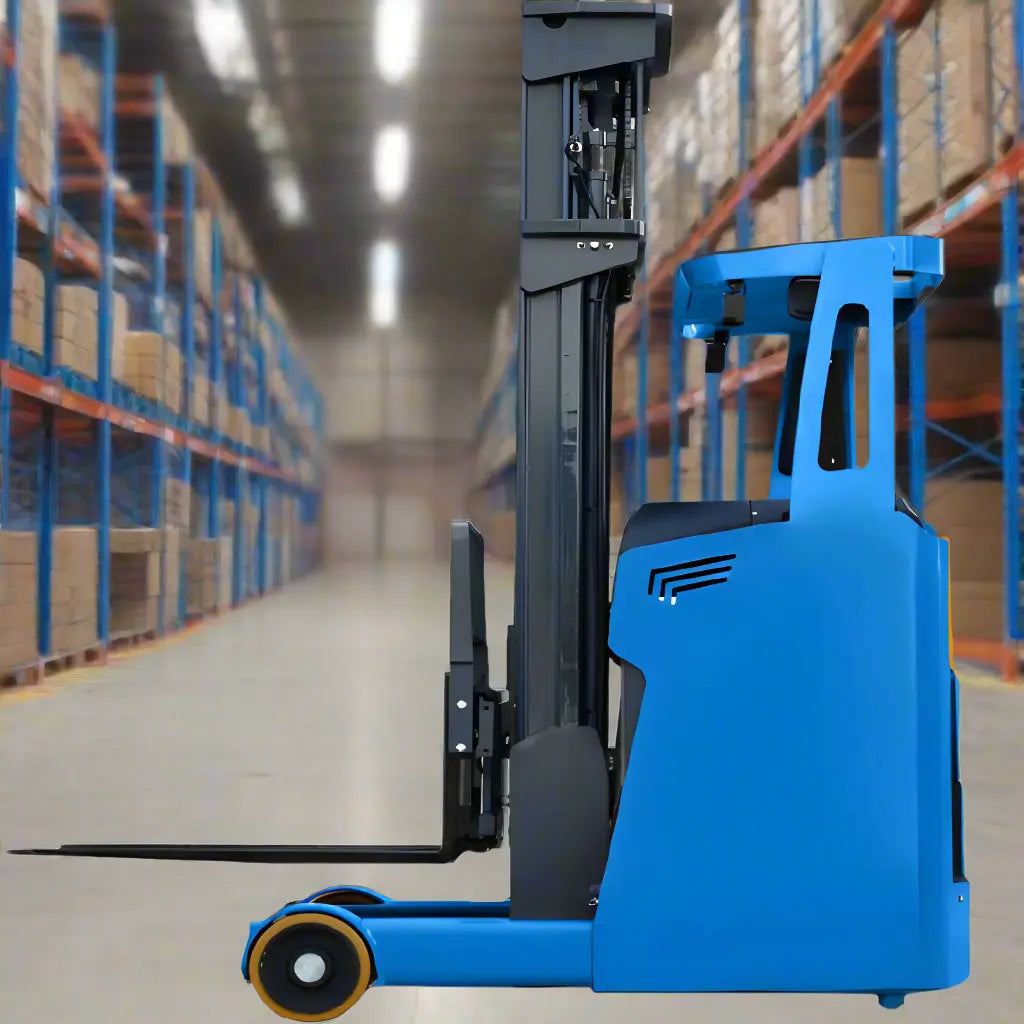

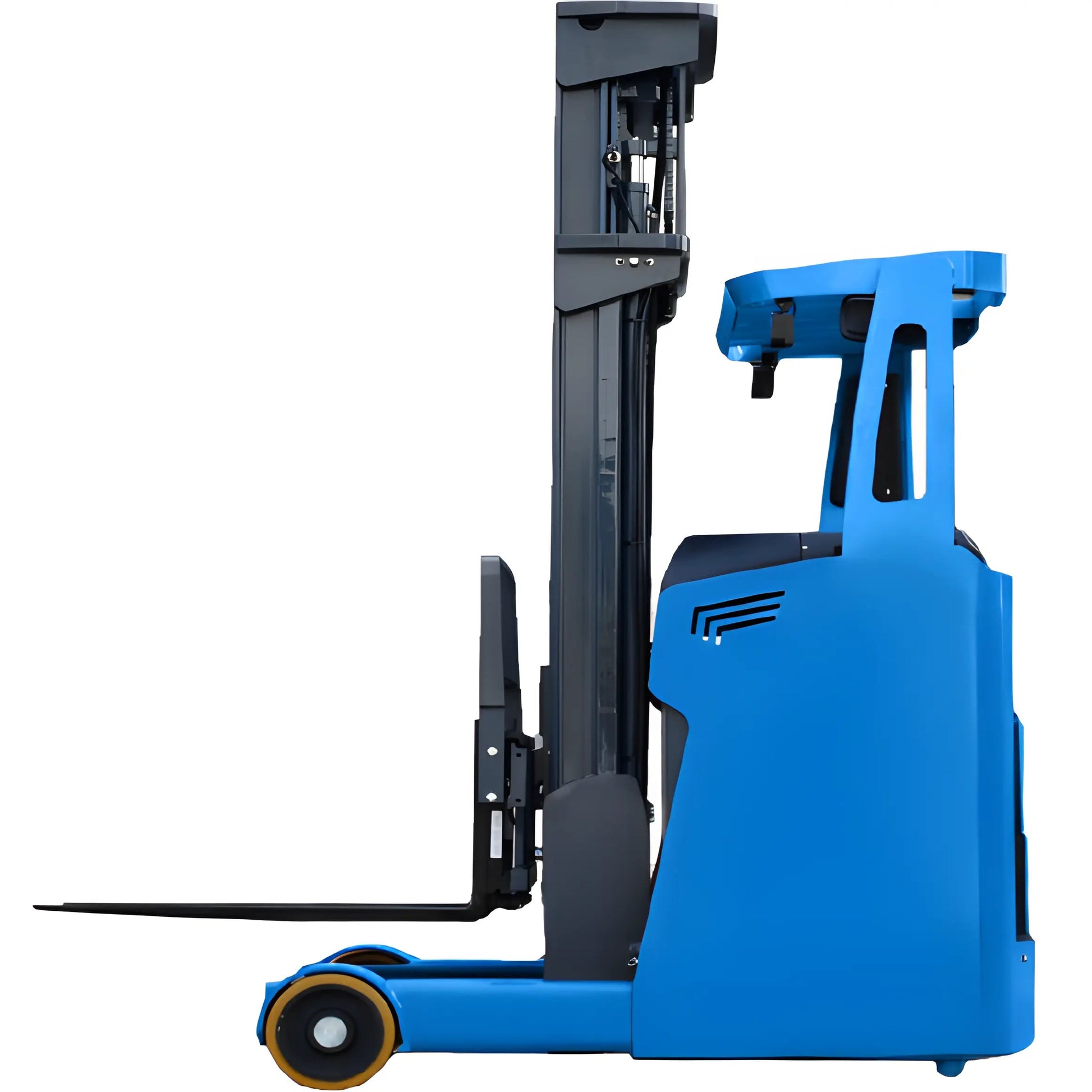

EOSLift LFC16/20 | Electric Stand-Up Movable Mast Truck, 3527 lb / 4409 lb Cap

High-Performance Electric Reach Truck with Powerful Battery System

Introducing LFC16 and LFC20 electric reach trucks Ergonomics and a heavy-duty mast smooth, safe operation in high-altitude areas with protection with advanced braking

Features:

• Load Rating: LFC16—3527.39 lbs, LFC20—4409.24 lbs for heavy-duty handling
• AC Motors: For performance and stability, Energy-efficient AC Motors are used in it.
• Safety: Mechanical brakes front/rear wheel braking and auto deceleration smooth operation.
• Height Adjustable Seat: Intelligent Control system, LCD and joystick for comfort.
• Powerful Battery: 48V/420Ah or 48V/560Ah we offer lead acid batteries or optional lithium.

Product Description:

Powered by the company's latest generation of innovative lithium-ion technology, the LFC16 and LFC20 heavy-duty electric reach trucks deliver exceptional performance in the most demanding material handling applications. This class of trucks is suited for applications that demand high lift heights and heavy load capabilities. These trucks can efficiently and safely handle the job, whether you're working in a warehouse, storage facility, or manufacturing plant.

Performance and Efficiency:

AC motors, which themselves display superior energy efficiency and increased operational reliability, power the LFC16 and the LFC20. Its driving motor provides 6.5kw power, and the lifting motor provides 12.8kw, allowing it to work under high pressure. High-quality motors minimize maintenance and offer a crusher operation that is no less smooth than traditional DC systems. All the models are able to work all day, every day; the strong vertical gearboxes ensure long service time. It is also the hydraulic system that needs to be tested, as the oil pump, the cylinder and the pipelines are tested layer by layer, so that they will work under the most severe conditions.

Safety and Control:

The LFC16 and LFC20 reach trucks prioritize safety. These models are equipped with mechanical brakes and are a front and rear wheel brake; enabling them to perform optimally on wet or frozen surfaces. One of them is the automatic deceleration functionality, that is applied while you are in a corner, preventing loss of control.

In emergency situations, the trucks are fitted with the rapid power off switch to switch all power off to avoid accidents. The trucks have an anti-skid braking system that also keeps them from sliding down slopes and losing control in dangerous surroundings.

Ergonomic Design for Comfort and Ease of Use:

The LFC16 and the LFC20 have an ergonomic design that increases operator comfort and reduces operator fatigue during extended shifts. The control console implements human-machine engineering, and all functional buttons are intuitively arranged for easy operation. Operators will appreciate the joystick control and multifunction display that provides important data including wheel position and operating parameters.

Battery and Power Systems:

LFC16 and LFC20 come with 48V lead-acid batteries; the LFC16 has a 420Ah battery, while the LFC20 has a 560Ah battery.  The lithium battery has an advantage that they charge more quickly and last longer.

In fact, an intelligent charger is included with the trucks to optimize the charging cycles to help minimize overcharging and maximize battery life.

Features of Load Handling and Mast

The triplex mast offers a maximum lift height of 177.16 inches on LFC16 and LFC20 reach trucks. The weight-bearing mast full-up to 6000mm, superior stability and strength, lifting weight. The mast, made using high-strength steel, resists heavy loading better that it does not weaken under pressure.

With a rated capacity of 3527.39 lbs for the LFC16 and 4409.24 lbs for the LFC20, both models can easily handle large heavy pallets.

More Features and Customization:

The LFC16 and LFC20 are also fitted with various tools and add-ons, for more added features. Operational comfort is improved with a suspension seat on both trucks. Each truck features a set of flashing lights, toolbox kits, and CURTIS controller for dependable control and functionality.

Thanks to this versatility, they are suitable for any number of tasks, whether that's stacking heavy materials, moving inventory in tight spaces, or getting through narrow aisles. Overall, the LFC series is designed to be efficient and high-performing while also being safe, and all of these things make it a great investment for businesses that are looking for a way to boost productivity in material handling.
