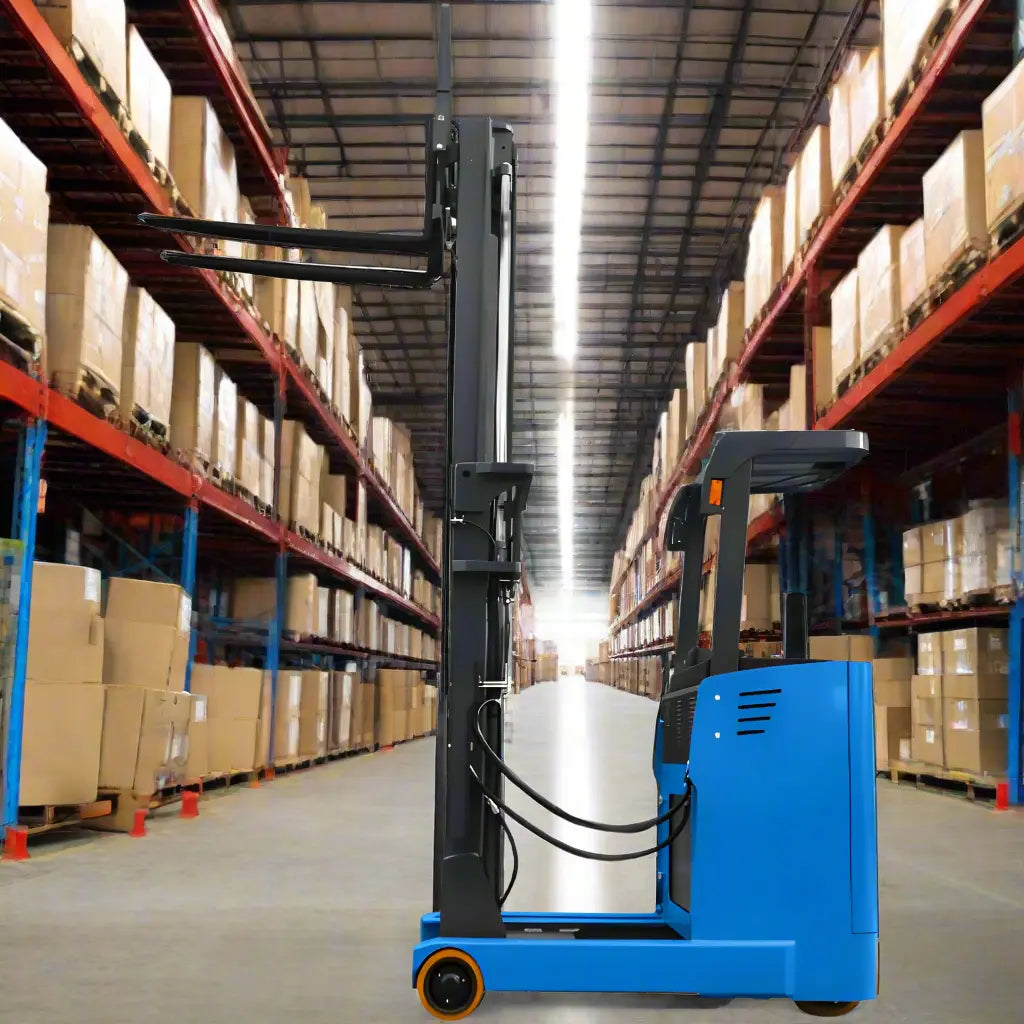

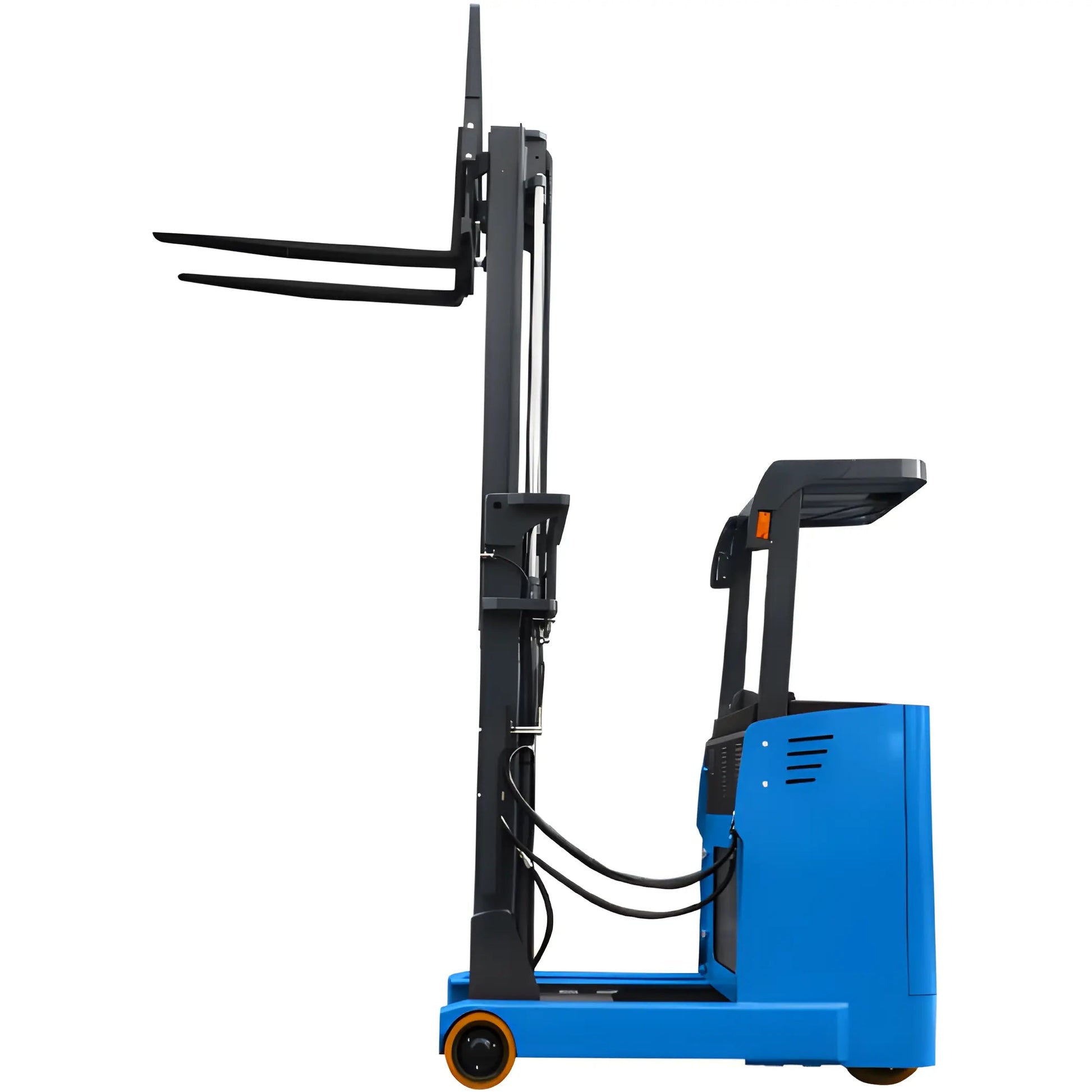

EOSLift LF12/15D-Duplex | Electric Stand-Up Movable Mast Truck, 2645 lb / 3306 lb Cap

Stand-On Electric Reach Truck with Advanced Features for Enhanced Productivity

LF12 & LF15D Electric Stand-On Reach Trucks - With AC motors and advanced hydraulics, these heavy-duty electric reach trucks provide all the precision, reliability, and tough material handling you need.

Features:

• High capacities: LF12 up to 2645.55 lbs, LF15D up to 3306.93 lbs for industrial applications.
• AC Motor System: Motor running 4.5 kW, Lifting 7.5 kW
• Multi-layered Inspection: For reliability and durability.
• Ergonomic Design: Easy to use with a console and cushion for greater comfort.
• Enhanced Safety: Equipment with automatic deceleration, anti-skid brakes, and emergency power-off switch for safe operation.

Product Description:

Designed for heavy-duty material handling, precision, and safety in warehouse operations, the LF12 and LF15D Stand-On Electric Reach Trucks enable maximum throughput with minimal space usage. The electric reach trucks provide a unique mixture of high lifting ability, powerful performance and maneuverability. These cars are suitable for use in distribution centers and large scale warehouses due to their ergonomic design, AC motor system and an array of safety features that promote smooth movement even in tight spaces.

Strong & efficient performance

Both models feature a high-performance AC motor system. The 4.5 kW driving motor and 7.5 kW lifting motor are used in tandem for strong but smooth operation, allowing for improved lift speeds and dependable driving performance. These motors help the reach trucks keep very good stability even when moving heavy loads but still providing optimal control for the operator.

The LF12 has a lifting speed of 9.44 inches per second laden and 15.74 inches per second unladen, while the LF15D achieves a lukewarm 8.66 inches per second laden and 14.96 inches per second unladen lifting speed. Though these lifting speeds favors optimum productivity in high-demand applications.

Hydraulics & Drive Systems Precision

The LF12 and LF15D are also built with advanced hydraulic systems for optimal reliability. Two or three layers of single inspection of hydraulic oil pump, cylinders, pipelines, etc., improves the durability of the system and minimizes the probability of system failure. The truck is also equipped with a high-strength vertical gearbox for extended service life.

Electric power steering (EPS) also comes with these reach trucks, ensuring accurate, effortless controls. Its smooth steering system lets operators maneuver tight corners or narrow aisles with ease which makes these trucks ideal for confined spaces.

Enhanced Safety Features

LF12 and LF15D are designed with priority to safety. Automatic deceleration when navigating curves is a feature found in these trucks for a safer and more stable drive. The anti-skid braking system also prevents the trucks from sliding on inclines or slippery surfaces. However, it should be noted that the emergency power-off switch is a key safety mechanism for any machinery, enabling operators to remove all power immediately in emergencies to avoid accidents and damage to equipment.

The overhead guard safeguards the operator against falling objects, providing added peace of mind while dealing with heavy loads. The various safety features, complemented by the intuitive and ergonomic design, make the LF12 and LF15D fit for use in many warehouse environments.

Enough Storage Space for Your Devices

LF12 and LF15D stand-on electric reach truck for all day comfort and convenience. Ergonomically designed console place all functions buttons within easy reach, enabling minimal movement on the part of the operator. The stand-on platform is cushioned for added comfort, minimizing operator fatigue throughout shifts, resulting in greater productivity.

Wear and Long-Term Usage

High-strength mast channel steel improves mast strength, enhancing resistance to bending and increasing strength. The LF12 and LF15D's heavy-duty construction allows them to manage larger workloads and withstand wear and tear for longer periods.

The wheels are PU designed; Which are meant to provide support to the trucks during tough operations allowing a smooth ride while reducing wear and tear. American AMP waterproof plugs and quality electrical components also boost truck reliability by lowering electrical failures and ensuring long-term performance.

Versatile and Flexible

The LF12 and LF15D are versatile and particularly well suited to cope with a variety of pallet sizes and applications. The fork carriage widths (42.83 Inches) and fork outside widths (8.74-30.39 Inches adjustable) allow compatibility with various pallet arrangements, making them very flexible for a variety of warehouse operations.

With a maximum lifting height of 155.90 inches and free lift heights of 3.14 inches (LF15D) and 15.74 inches (LF12) operators can stack pallets in even the highest racking systems.
