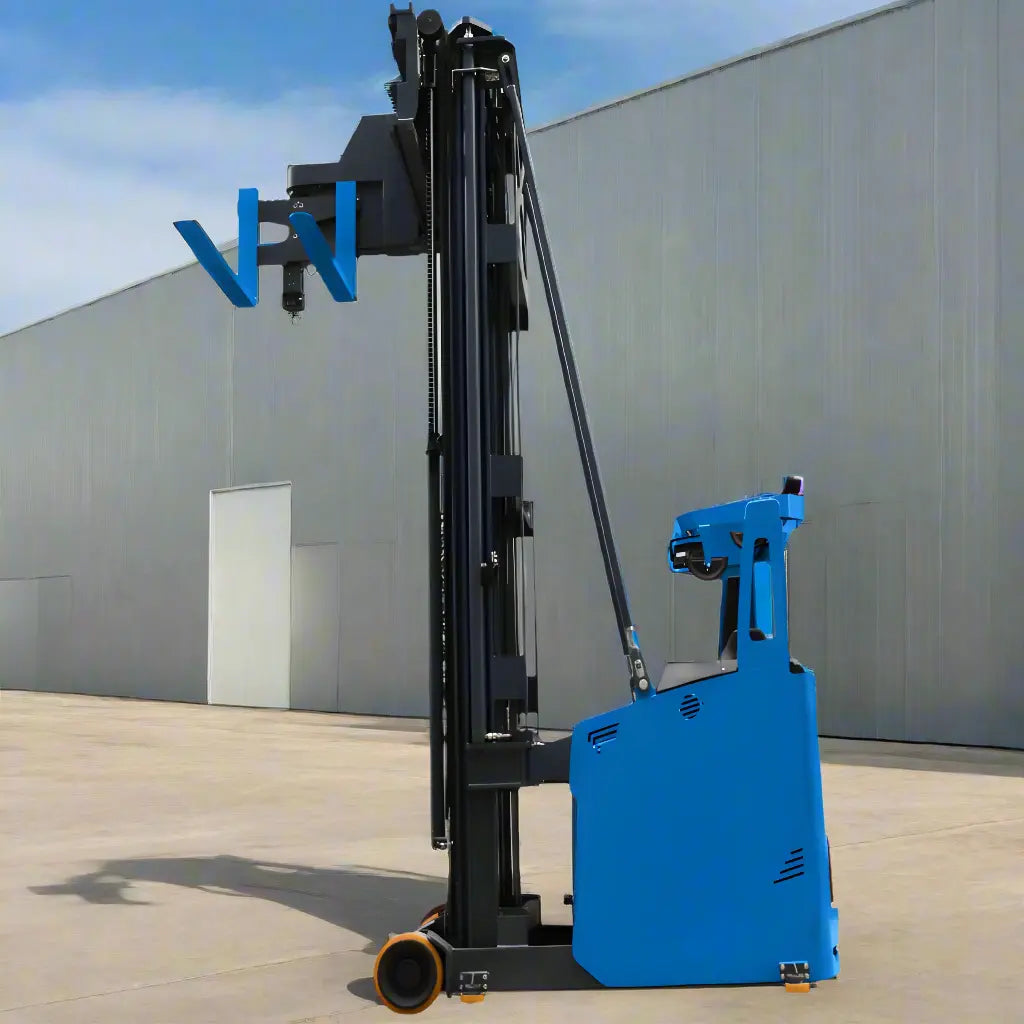

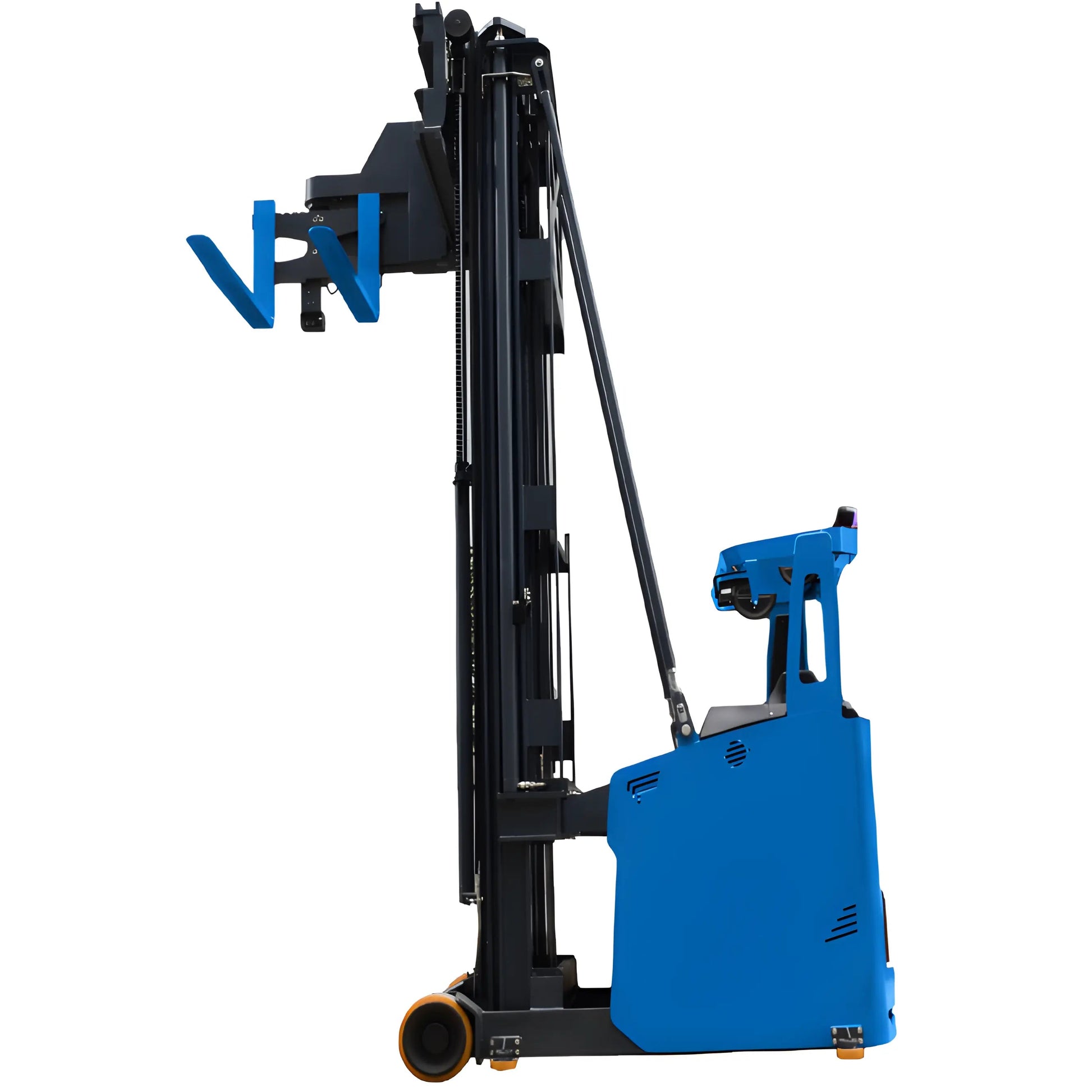

EOSLift LCA15 | Electric Stand-Up Turret Truck, 3306 lb Cap., 177.16" Lift Ht

High-Performance LC15 3-Way Electric Pallet Stacker for Efficient Warehousing

With a range of upscale features for material handling, the LC15 3-way electric pallet stacker is geared for storage density. It features a robust AC system, a Curtis controller, and an all-around compact enclosure that allows it to carry heavy loads and move quickly and efficiently in narrower operating zones.

Features:

• High Load Capacity: Rated to 1500kg [3306.93lbs] Heavy-duty industrial loads
• Modern AC System: Curtis controller driven by 48V AC system for enhanced performance.
• Efficient Design: Working in aisles from 1600 mm and forks 180° turning
• Fast Lifting and Lowering: Lift speed: 11.81 in/s; Lowering speed: 13.38 in/s.
• Safety and Control: This model has an electromagnetic parking brake, video display, guide wheel, and warning lights.

Product Description:

To satisfy high-performance material handling requirements in factories, warehouses, and distribution centers, the LC15 3-way electric pallet stacker focuses on flexibility, productivity, and safety. Equipped with an industry-leading load capacity, space-efficient maneuverability, and rapid operational speeds.

Load Capacity for Heavy-Duty Handling

The LC15 has a rated capacity of 3306.93 lbs, built for handling a variety of heavy materials. It is one of the best stackers in town, so if you need to stack pallets, lift heavy blocks or move some large items in the warehouse, this stacker has got your back.

The LC15 is able to withstand heavy inventory, making it suitable for industries with high load capacities without sacrificing performance or safety.

Optimized System Control For Superior Performance

The LC15 pivot showcases of the company, is an advanced 48V AC electrical system with a Curtis controller. That trifecta is what makes sure that your stacker will be working quickly and accurately. This provides align features of AC motor for a more refined performance, faster response times, and enhanced energy efficiency when compared with conventional systems, thus lowering operational expenses and raising overall productivity.

Curtis controller improves vehicle response, ensuring smooth and accurate stacker operation. This new all-electric setup removes maintenance work and enhances downtime while allowing it to run longer.

Tactical Maneuverability in Constrained Areas

As the solution  for confined spaces and narrow aisles, the LC15 outputs space optimization previously unachievable in the warehouse. Moreover, it has a number of unique 3-way functionality, wherein the forks can turn 180 ° and shift left and right, without moving the body.

The LC15 increases storage density because it avoids having aisles so it reduces the area needed to store materials increasing the amount of material stored in the same area.

Twice the speed in lifting and lowering for higher productivity

The LC15 is speed-driven, with a maximum lift speed of 11.81 inches per second and a maximum lowering at 13.38 inches per second. These fast lifting and lowering speeds enable operators to quickly move materials, boosting throughput and lowering cycle times in the warehouse.

With a maximum lifting height of 177.16 inches, the LC15 can clear those high-storage racks with ease. That allows companies to utilize vertical space properly and store products on high levels while keeping the speed and efficiency necessary for smooth warehouse functioning.

Safety and Control

Safety To The Operator Is A Priority With The LC15 It features an extensive list of safety features for safe and steady operation. When not in use, the stacker automatically locks, thanks to its electromagnetic parking brake, preventing the vehicle from moving accidentally. Furthermore, the guide wheels promote stability and control, which facilitates easier maneuvering in tight spaces.

With a video display system that significantly enhances visibility, the LC15 allows operators to get a clearer view of their surroundings, helping them prevent collisions and enhancing operational safety in environments that might be prone to this, such as busy warehouses.

Sturdy and Lasting Construction

The LC15 has heavy-duty PU wheels designed for long-term performance, even in high-intensity operations. These wheels allow easy movement of the stacker and reduce wear, ensuring excellent operation over long periods of use within demanding applications. The strong 3H-channel steel mast structure ensures stable operation up to 6.5 meters in height and thus is perfect for high-position storage.

User-friendly Battery Management with Minimal Upkeep

The LC15 also has an easy-to-service battery system, which helps maintain the sci-fi aesthetic. The stacker is supplied with an intelligent charger that helps to optimize battery life and reduce energy consumption. Also, knowing that the battery can be swapped out fairly quickly using a battery replacement trolley minimizes the stacker's downtime and means that it can be kept in continuous operation.
