EKKO EK13S-177 | Electric Pallet Stacker | Side-Shifting, 177" Lift Height, 2860 lb Capacity

Electric Pallet Stacker: EKKO EK13S-177 Features

Features:

• Material Handling Capacity: 2860 lbs, heavy-duty rust-proof 【MADE IN USA】
• Lifting Height: 177 Inches (14.75 ft) (For high-stacking needs)
• Side-Shift Capabilities: For perfect alignment and easy maneuvers.
• Ergonomic Design: Ergonomically designed handle provides the operator extra comfort.
• Maximum drive: Maximum drive and lift motor efficiency at 2.5 kW for reliable operation

Product Description:

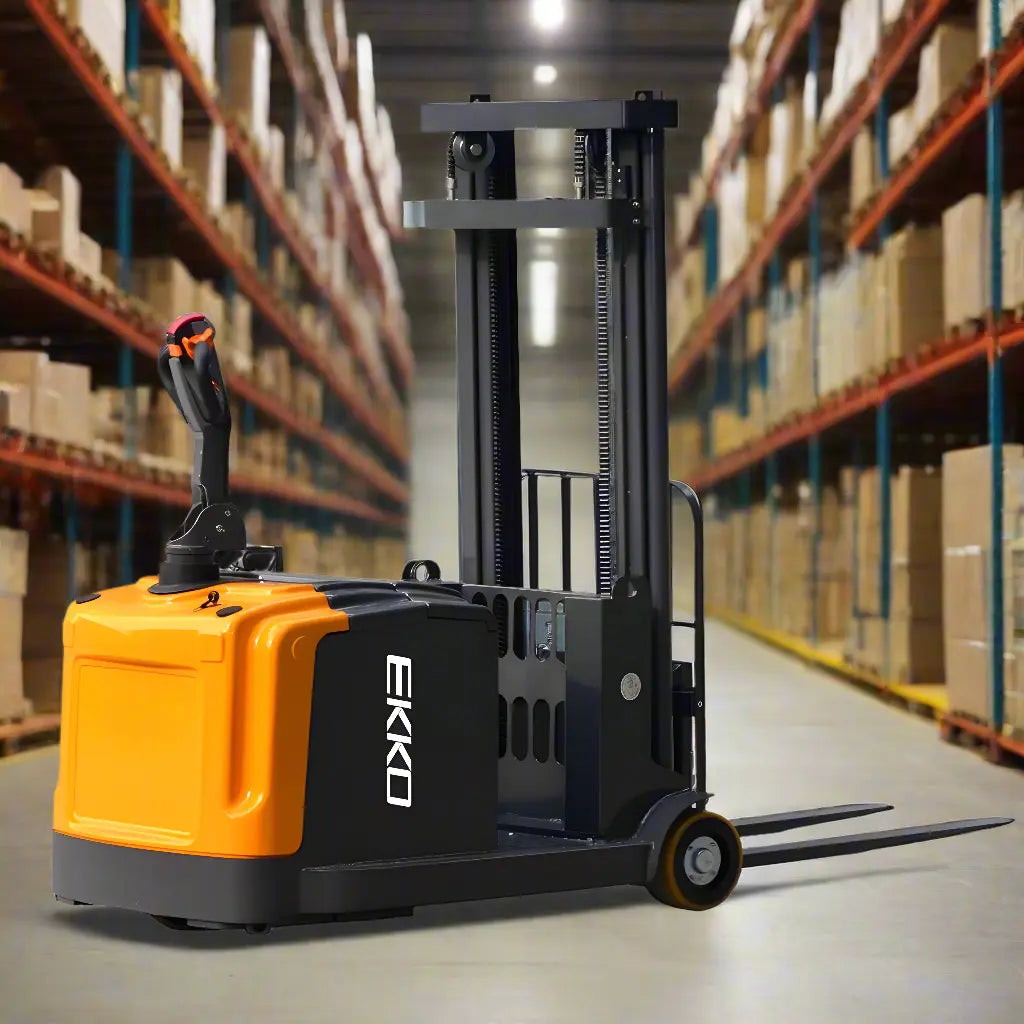

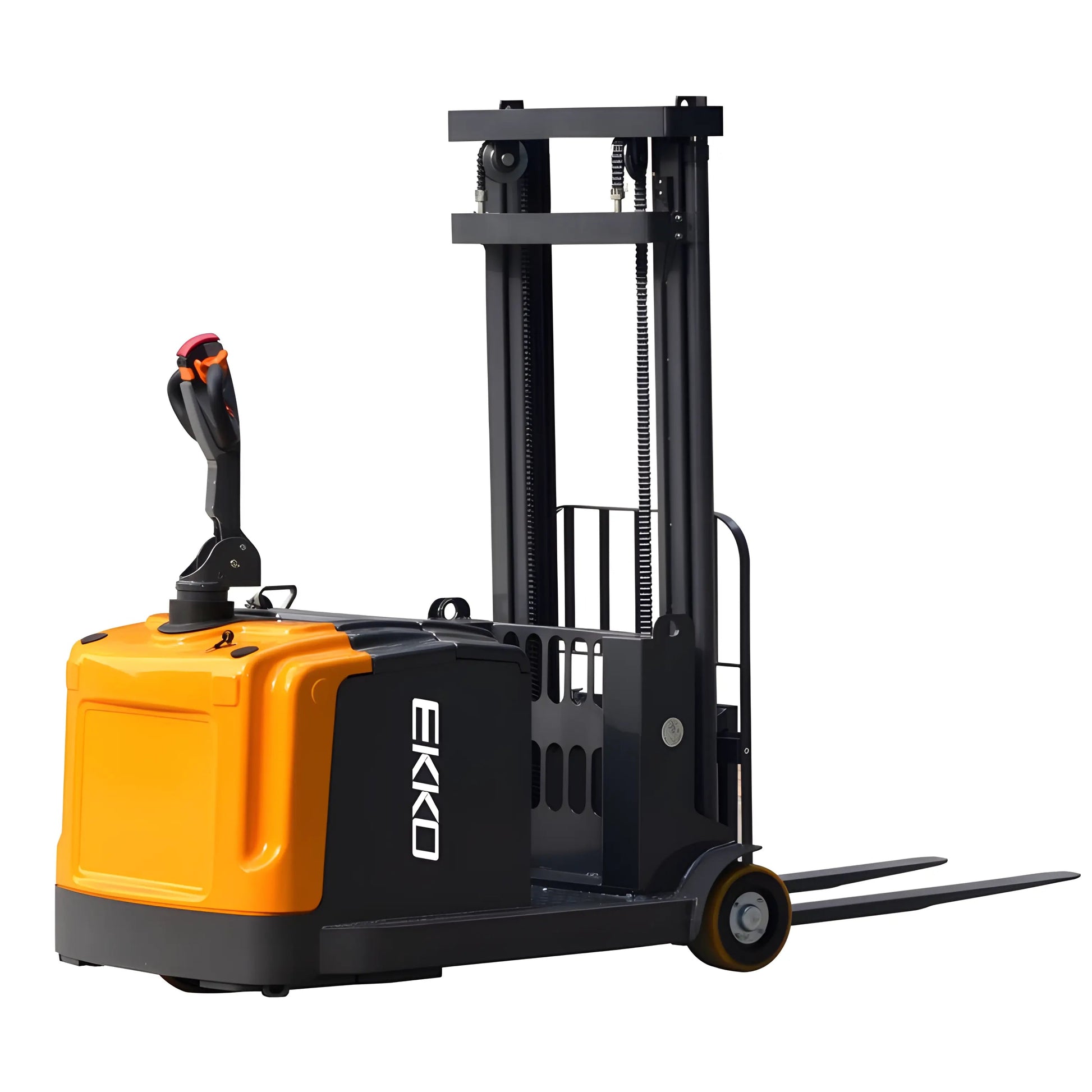

The EKKO EK13S-177 Fully Powered Counterbalanced Walkie Stacker is a high-performance material-handling solution that excels in demanding applications. The powerful EK13S-177 has a load capacity of 2860 lbs and a lifting height of 177 inches, so it’s perfect for heavy-duty operations in manufacturing floors, warehouses or stockrooms that require maximum vertical utilization.

Key Features

Lift Capacity: This stacker has a lift capacity of 2860 lbs, so it can lift heavy loads with ease, great for many different applications in various industries.

Lift Height: The 177-inch (14.75 ft) lift height of the EK13S-177 allows you to stack goods higher, optimize vertical space in your facilities.

Maneuverability and Precision

Side-shifting Capability: The side-shifting feature improves precision and maneuverability, easy to position in narrow spaces or to operate between racks, perfect for busy, crowded areas.

Fork Width: 8.66-28.35 inch (adjustable)[For pallet in different sizes and types]

Powerful Performance

2.5 kW AC Drive And Lift Motors: The EK13S-177 is powered by 2.5 kW AC drive and lift motors for smooth performance and reliable lifting power, efficient yet steady during any lifts or movements under heavy loads.

24V/210Ah Battery: The EK13S-177 has a 24V/210Ah battery that gives you hours of operation in continuous mode without the need for recharging.

Magnetic Brake System: The system has a magnetic brake, provides the stacker with secure lifting, lowering and parking operations for safety.

Operator Comfort and ControlErgonomic Design: The stacker has an ergonomic design with an adjustable handle, so you can be comfortable over long periods of use and reduce operator fatigue.

EPS (Electric Power Steering): The EPS system gives you excellent steering control for minimal effort, so you can drive through narrow aisles or crowded areas easy.

Durability and Construction

Heavy-Duty Construction: The EK13S-177 is built with heavy-duty steel and robotic welding for durability in any environment.

Powerful Hydraulic System: The hydraulic system uses 1500 kg hydraulic lifting components with large diameter to ensure high load-bearing capacity and consistent performance over time.

Applications

EKKO EK13S-177 is perfect for warehouses, manufacturing environments and stockrooms. From delivering clean pallets of goods in a back-of-house setting to unloading stock and maneuvering into tight aisles, this stacker gives you maximum up time, efficiency and reliability for all your material handling needs.

High Lift and Capacity

The EKKO EK13S-177 walkie stacker is designed to be functional and performance. With a high lift of 177 inches, you can stack pallets and heavy goods efficiently, optimize warehouse space. Its heavy-duty capacity of 2860 lbs means you can handle many types of loads with ease. So whether you’re in a warehouse or retail environment, this stacker meets all your lifting needs.

Side-Shifting Feature

One of the key features of the EKKO EK13S-177 is the side-shifting. This allows operators to move loads sideways with ease. It improves stacking operations and reduces the chance of drops. So workers can complete tasks faster and with more precision, perfect for modern work environments.

User Friendly Design for Maximum Efficiency

The design of the EKKO EK13S-177 is user friendly without compromising performance. The ergonomic handle and simple controls make it easy to operate, even for less experienced staff. This counterbalanced walkie stacker not only promotes safety but also increases productivity by reducing operator fatigue. So investing in this model means smooth and efficient workflow in your business operations.

VersatileThe EKKO EK13S-177 Electric Pallet Stacker is versatile in material handling. Designed for warehouses and distribution centers, this electric pallet stacker has a high lift of 177 inches. Plus, the side-shifting feature allows operators to move pallets into tight spaces so you can optimize your warehouse layout. With a capacity of 2860 lb, it’s built to handle many heavy loads so you can meet your operational needs.

Easy to Use

When it comes to user experience, the EKKO EK13S-177 excels. The simple controls are easy to understand so operators, even with little experience, can use the machine. Plus the stacker’s ergonomic design reduces operator fatigue so you can stay productive throughout your shifts. Because of its compact size you can maneuver easy in crowded areas so operations are smooth.

Safety and Reliability

Safety is key in any material handling environment and the EKKO EK13S-177 has it covered. With advanced safety features including automatic braking systems and stability control it’s reliable. Operators can work with confidence knowing this electric pallet stacker has got their back. Plus its durable construction means it will be a valuable asset for years to come.
