EKKO ES100E-LI | Lithium Aerial Work Platform | Lift Height 32.8' (394'')

EKKO ES100E-LI: The Ideal Lithium Aerial Work Platform

Features:

• High Capacity Load: Raise loads to 700 lbs. to ease the transportation of material.
• High Lift: 32.8′ lift height 39′ max working height.
• Small and Makes: Easy Work of Tight Spaces with a Compact Platform Size
• Intact and Safe: Specifications meet GB25849 and EN280 standards.
• Proportional Control: Improved control with proportional drive and lift systems.

Product Description:

The EKKO ES100E-LI Scissor Aerial Work Platform is the optimum matrix solution for various industrial, construction, and maintenance applications that require providing high safety standards during the lifting process of goods and employees. With a 700 lb load capacity and a maximum working height of 39′, this platform packs both brute strength and agility, making it well-suited for projects that require high elevation within confined spaces.

Casual and conversational

The EKKO ES100E-LI is an electric platform lift designed for easy material handling and personnel lifting, with a platform load capacity of 700 lb. This platform provides stability under heavy load with strength to spare in challenging environments… Whether you are transporting tools, equipment, or people, this is the platform you need. While it offers an extended reach, its platform could still carry loads of 265 lbs, thanks to its load rating.

Optimized for Maximum Reach

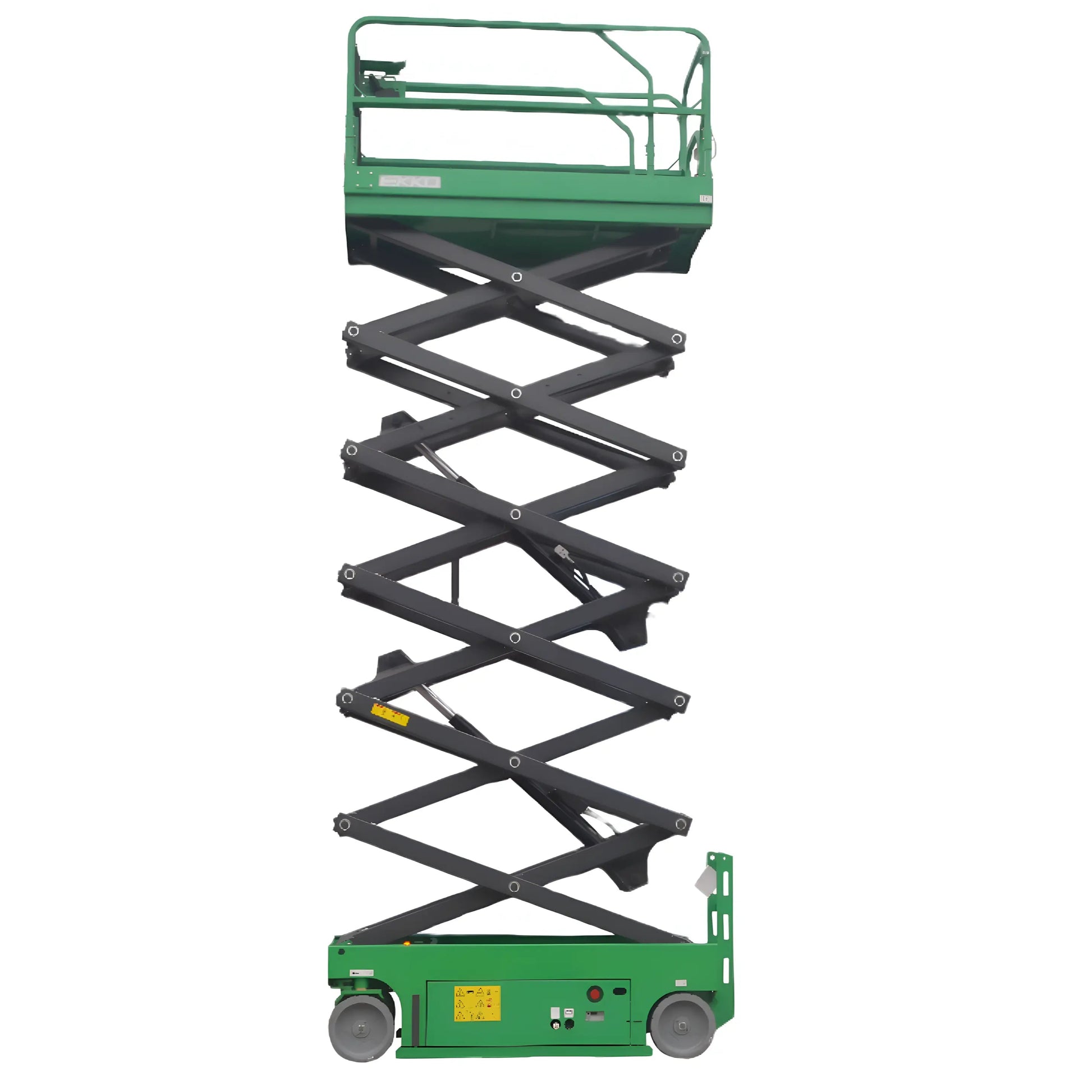

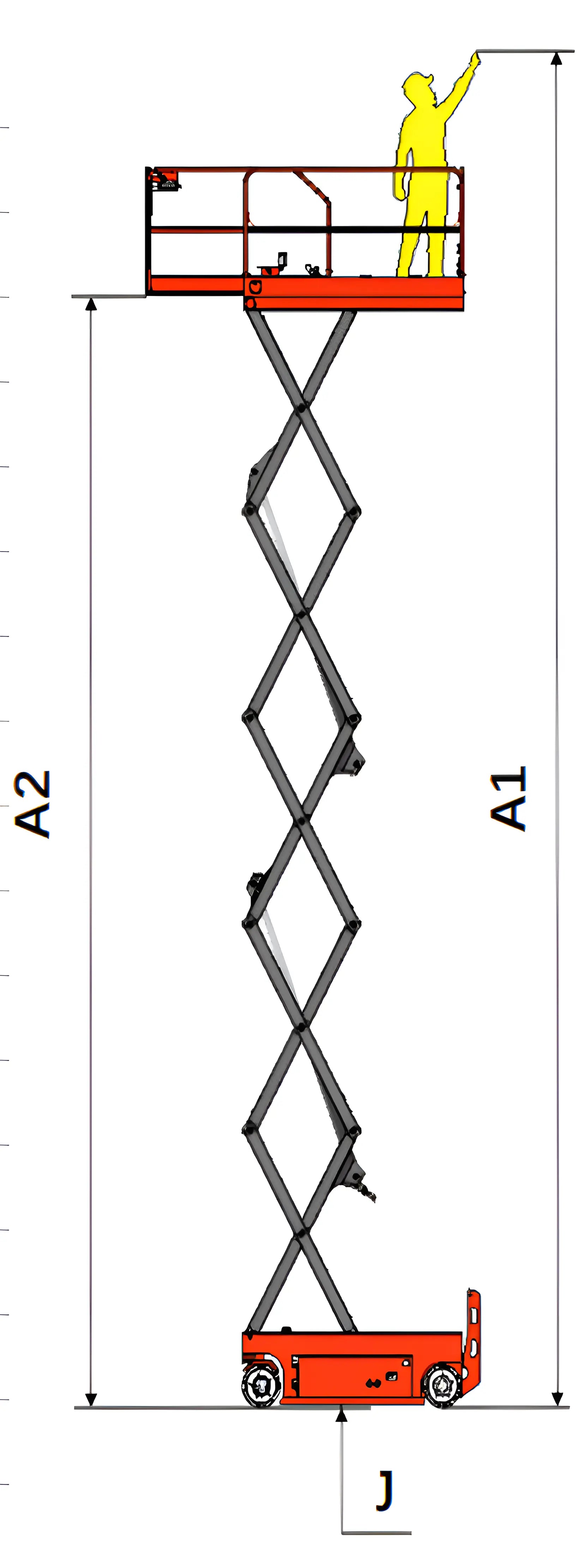

The EKKO ES100E-LI allows you to work at high ground with an eased 32.8' raised height. The 394" max platform height of this piece of equipment is perfect for performing construction tasks, inspecting high structures, or completing maintenance work. With a working height of 39' — this vertical personnel lift has incredible versatility for multiple tasks.

Small, Agile, and Secure

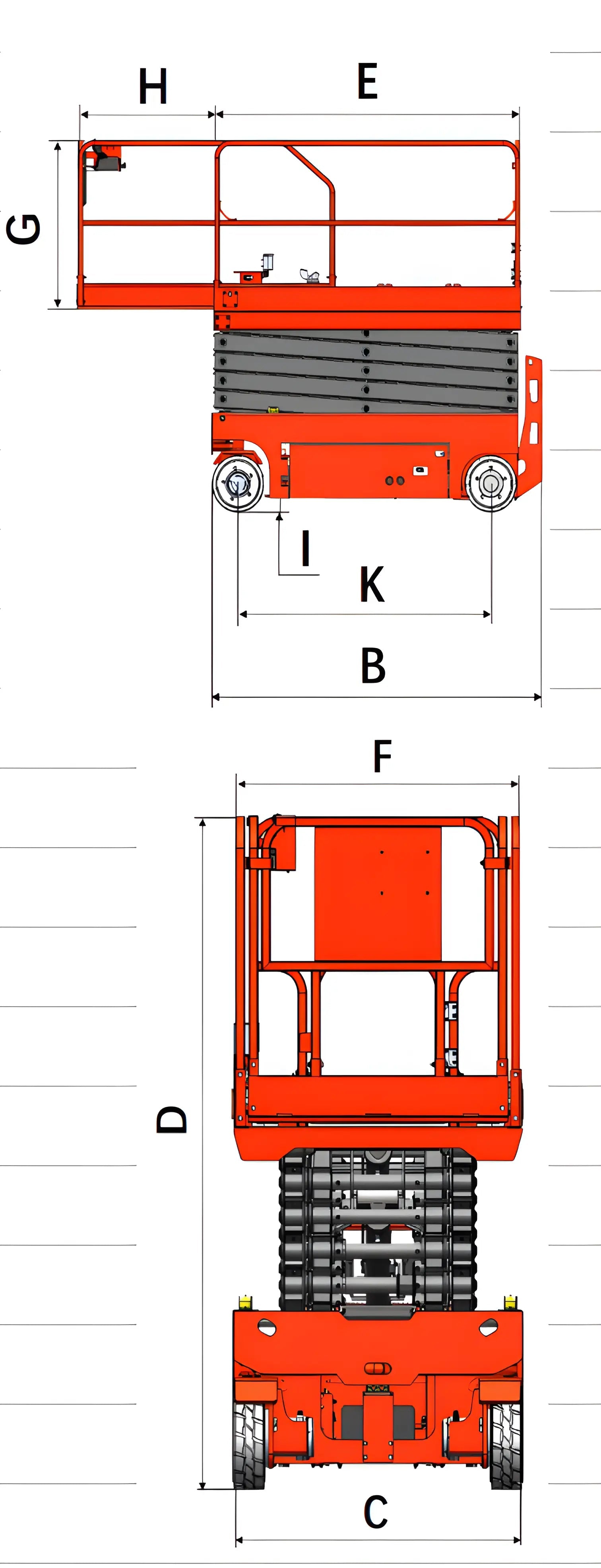

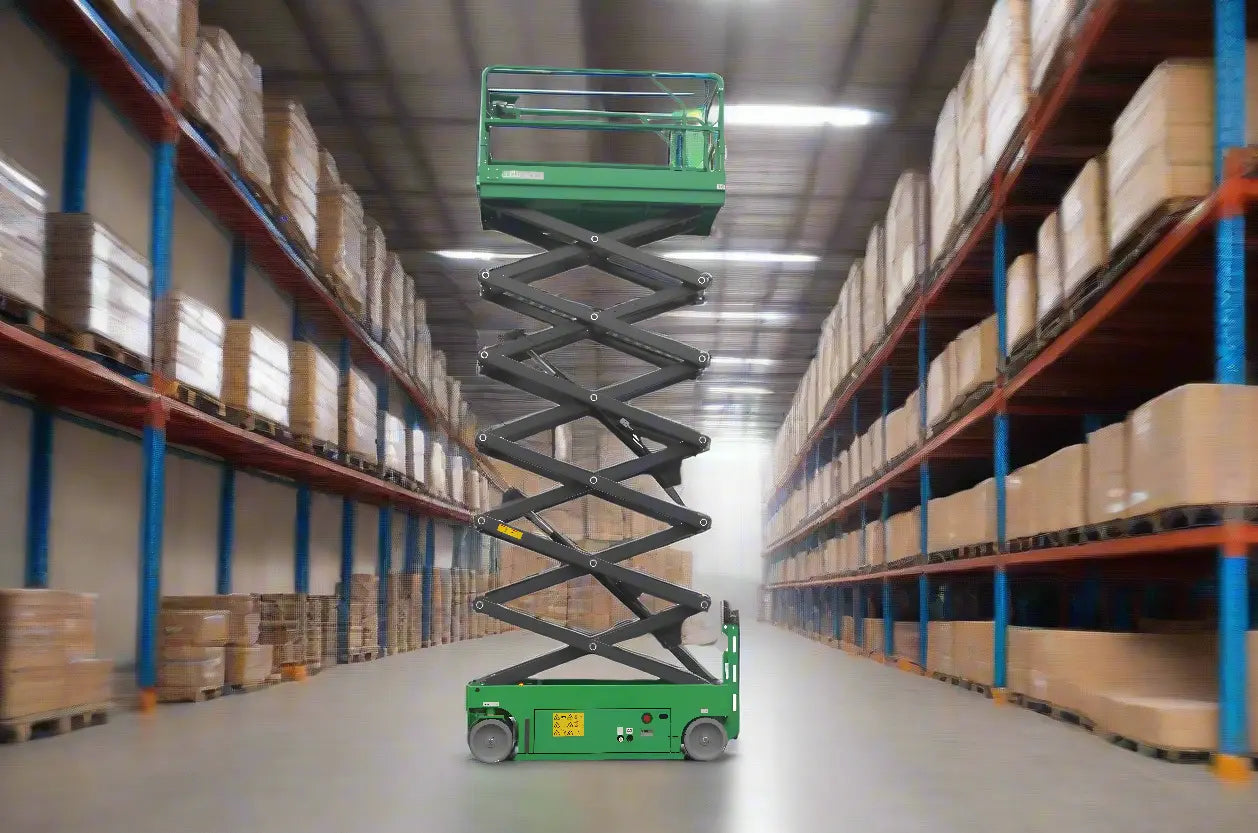

The EKKO ES100E-LI is designed to occupy minimum space in tight-fitting environments. This gives us a platform size of 88.58x45. - [27"] has a large size for operators and equipment, but the ultra-short turning radius, combined with fully controllable movement in tight spaces, makes it usable in retailers, warehouses, and construction sites. Thanks to a 3.74" (closed state) ground clearance, the platform can pass through different objects.

Avoiding Unsafe and Non-Compliant practices

A safety design, the EKKO ES100E-LI operates safely for the operator. This is in compliance with GB25849 and EN280 so it assures safety at height. A guardrail height of 43.3" and a maximum wind speed of 12.5 m/s that can be overcome by the platform indicate that the platform is stable even under windy conditions. 52 seconds to go up and 48 seconds to come down provide gentle transitions without sacrificing safety or stability.

Proportional Control for precision handling

EKKO ES100E–LI features proportional control for adjusting movement of platform up, down and horizontal. Doing so enables operators to better regulate movement speed and direction, which enhances precision and mitigates the possibility of unwanted drops or jolts that could damage goods or harm individuals.

High-Performance Electrical System

Powered by a 25.6V/230Ah lithium battery, the EKKO ES100E-LI provides long working hours per charge and reduced downtime between cycles. Power comes from a pair of 0.7 kW drive motors and a 3.3 kW lift motor. With its 36A charger, the battery can be quickly recharged, keeping operations running throughout the workday.

Construction with great durability for extended use

The EKKO ES100E-LI has a steel construction and heavy-duty design to handle the tough conditions of Industrial workplaces. The rugged construction and high-quality materials make it a great companion for heavy-duty work, even in extreme conditions. The rugged design ensures the platform can handle 24/7 operation with the required uptime.

Convenient and Secure Storage

The EKKO ES100E-LI also features an optional integrated charger and batteries for extra convenience. Furthermore, a 22-liter hydraulic tank fuels the reliable operation of the lift and drive systems.

Warranty and Customer Support

The EKKO ES100E-LI Scissor Aerial Work Platform is a reliable, efficient, and versatile choice for professionals. With a 700 lb load capacity, 32.8' raised height, and proportional control, it ensures ease of use and safety. Backed by a 3-year limited warranty, it’s a compact yet powerful asset for industrial, commercial, and construction tasks.

Superior Lift Performance

The EKKO ES100E-LI is designed to provide superior lift performance with a maximum height of 32.8 feet. This impressive lift height allows operators to easily reach high areas for maintenance or construction tasks. Because of this capability, the EKKO ES100E-LI is ideal for both indoor and outdoor operations, ensuring that you can tackle various projects efficiently. With its robust design and lithium battery, this platform allows for longer working hours without frequent recharges.

Enhanced Mobility and Stability

Another key feature of the EKKO ES100E-LI is its enhanced mobility and stability, allowing workers to navigate tight spaces with ease. The compact design means you can maneuver it through narrow doorways and crowded job sites without compromising on stability. Additionally, its advanced stabilization features ensure safety while working at elevated heights, offering peace of mind for operators.

Easy Operation and Maintenance

Operating the EKKO ES100E-LI is straightforward, making it accessible for users of varying experience levels. The controls are intuitive and designed for quick learning, enabling operators to get to work almost immediately. However, while the platform is user-friendly, routine maintenance is essential to maximize its performance and lifespan. Fortunately, the lithium battery requires less upkeep than traditional fuel engines, simplifying your maintenance responsibilities.
