EKKO EB13E | Electric Straddle Stacker | 119" Lift Height | 2800 lb Capacity

EKKO EB13E: Power and Efficiency in Material Handling

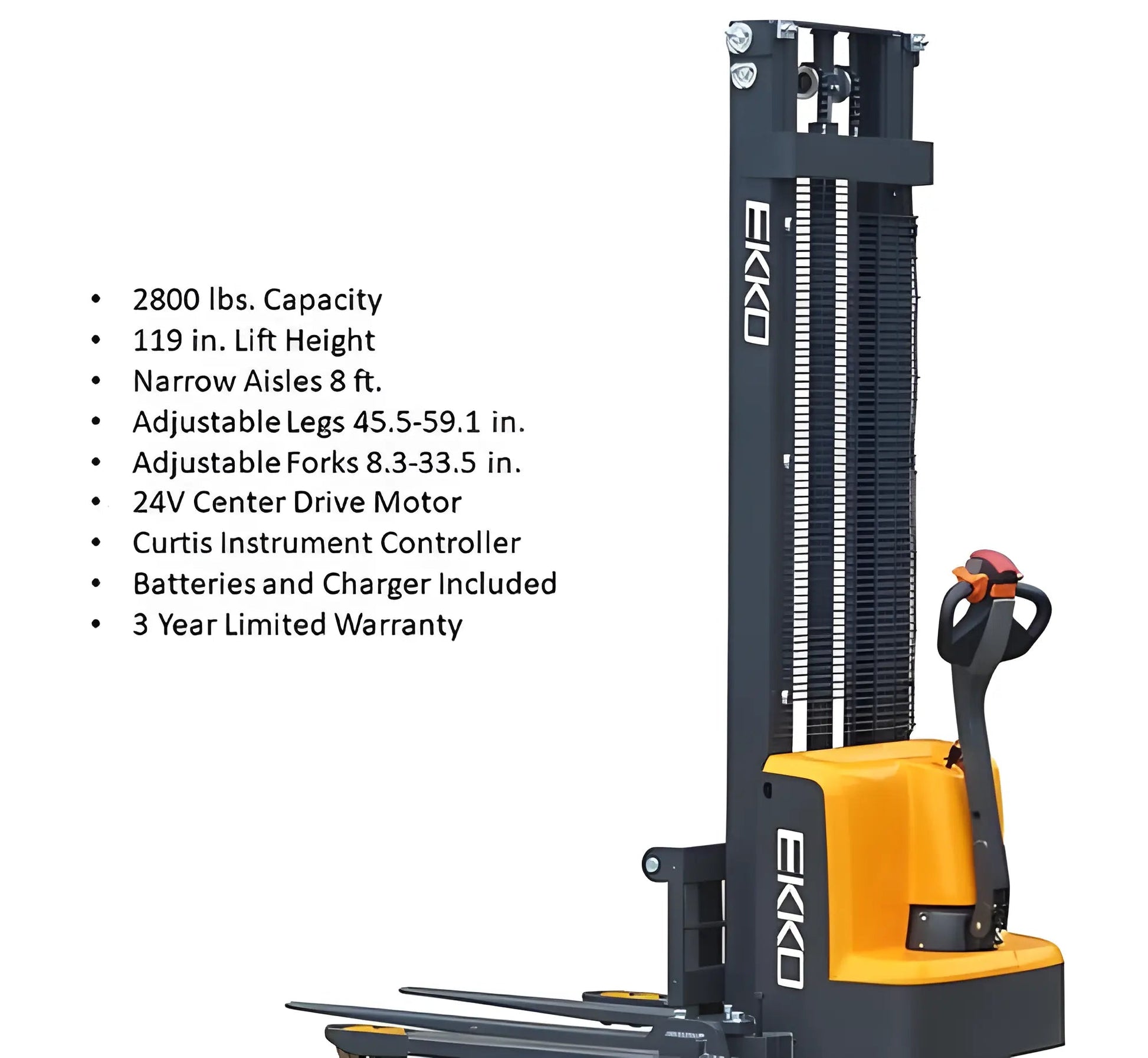

Features:

• Weight Capacity: Up to 2800 lbs for heavy-duty work.
• Max. Lifting Height: Lifts up to 119” for high stacking.
• Adjustable Forks: Fork width is adjustable from 8.3” to 33.5”.
• Heavy Duty Construction: High-quality steel and robotic welding.
• Ease of Use: Comes with an ergonomic handle for smooth operation and intuitive controls.

Product Description:

Designed with the rigorous demands of modern warehouses and manufacturing floors in mind, the EB13E Electric Straddle Stacker is a robust handling solution. Found with a walkie stacker, reach forklift, and reach truck rolled into one, this machine can handle pretty much any forklift job with ease. The EB13E is perfect for working in conditions that involve managing loading docks, stockroom organization, and tight warehouse environments.

Stout and Trustworthy Build

Constructed of quality steel and supplemented with robotic welding, the EB13E is engineered for heavy-duty applications to maximize strength and durability. It is simple to operate in harsh environments, thanks to its ergonomic design. Its compact design ensures that it is optimized for tight spaces.

Superior Load Handling and Reach

The EB13E has a lifting capacity of 2,800 lbs and a max lift height of 119 inches, designed for navigating high stacks. Our adjustable forks (spanning 8.3 to 33.5 inches) offer versatility to accommodate different pallet sizes and configurations, addressing the various demands of your operations.

Powerful Performance

With a 24V motor at its heart, the EB13E can lift and drive with the best of them. Its powerful 24V lift and drive motors deliver reliable performance, even under a heavy load. It also has improved grip and longevity thanks to the use of polyurethane wheels, making it ideal for any kind of surface.

Powertrain with Efficient Battery and Charging System

Dual 12V 100Ah batteries power the EB13E so you can ensure your productivity with very low downtimes. The internal charger increases ease and speed of recharging so your stacker can be ready for the next job without delay.

Greater Maneuverability and Comfort

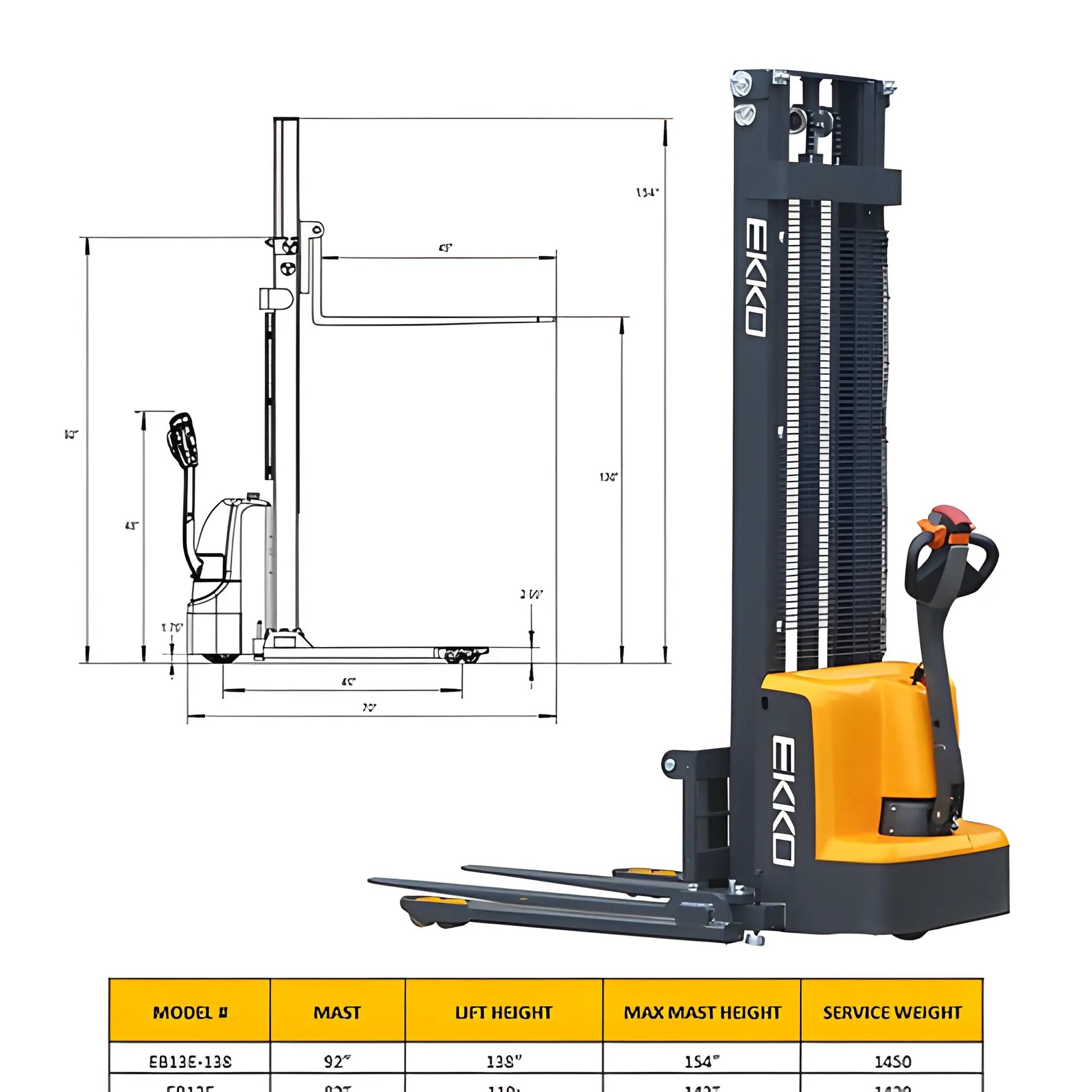

Measuring 52.6 inches from turning bolt to turning bolt, the EB13E has the tightest turning radius among all other makes and models in the category, making it incredibly efficient in narrow aisles and crowded work environments. The ergonomic controls and handles help reduce operator fatigue, so even the longest shift is no problem. Smooth, precise operation is the name of the game with this stacker, with lifting, stacking, and moving materials being a smooth experience.

Safety and Warranty

The EB13E offers a robust design with plenty of safety features and reliable braking systems for operator safety. Robotic welding provides maximum strength, and it is a great option for long-term use. With a 3-year limited warranty, you can be sure your EB13E is a solid investment in your material handling.

Applications

Perfect for:

Loading and unloading trucks.

Organizing stockrooms.

Navigating narrow aisles.

Dealing with different sizes of pallets.

For Efficiency and Productivity, the Reliable Option

EB13E Electric Straddle Stacker makes material handling effortless. This stacker is perfect for everything from warehouses to manufacturing floors.

Unmatched Capacity and Lift Height

The EKKO EB13E electric straddle stacker offers an impressive lift height of 119 inches and a substantial capacity of 2800 pounds. This powerful combination makes it ideal for warehouses and distribution centers. Whether you are stacking pallets or moving heavy materials, the EB13E ensures you can complete your tasks efficiently and safely. Its robust design helps you tackle demanding tasks without worry.

User-Friendly Operation

One of the key features of the EKKO EB13E is its user-friendly operation. The stacker is designed with an intuitive control system, allowing operators of all experience levels to use it effectively. The ergonomic handle provides excellent grip and allows for easy maneuvering in tight spaces. This is crucial because ease of use can significantly reduce training time and increase productivity in the workplace.

Durability and Safety Features

The EKKO EB13E is built to withstand the rigors of daily use. Its sturdy construction ensures long-lasting performance, making it a smart investment for any business. Additionally, it is equipped with essential safety features, including emergency stop buttons and stability controls. As a result, operators can feel secure while using the equipment. This commitment to safety not only protects employees but also enhances operational efficiency.
