Auxx Lift 400lbs Garage Attic Storage Lift System

The Attic-Lift – Motorized Overhead Storage System

The Ultimate Garage Storage Solution for Modern Homes
The Attic-Lift is a motorized lifting platform that lets you safely and easily move bulky items between your garage and attic. Designed to maximize overhead storage space, it eliminates the need to carry heavy boxes up pull-down stairs—simply press a button and your items lift themselves out of the way.

Available in multiple sizes, colors, and lifting capacities, the Attic-Lift is customizable to fit your ceiling and storage needs. Its powerful dual-motor design, wireless remote control, and adjustable frame make it the easiest and safest attic lift system on the market.

Features:

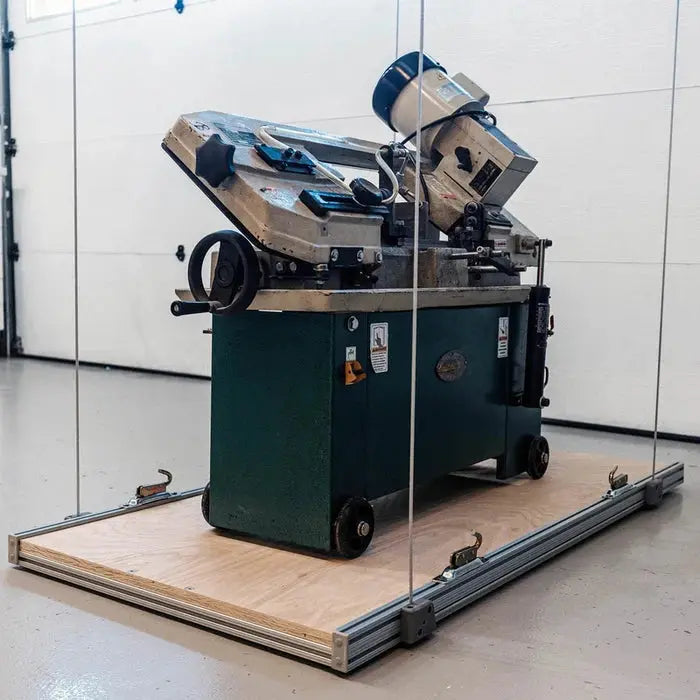

• High Capacity: Lift and store up to 400 lbs of tools, boxes, and seasonal items with ease.

• Easy Installation: Mounts using just two motors and two struts—no complex rails or posts required.

• Fully Adjustable Ceiling Frame: Fits attic openings from 24" to 216", sealing neatly to your ceiling.

• No Obstructing Rails: Unlike conventional lifts, it leaves your attic floor completely clear.

• Self-Leveling Platform: The controller automatically monitors cable speeds to keep the platform balanced.

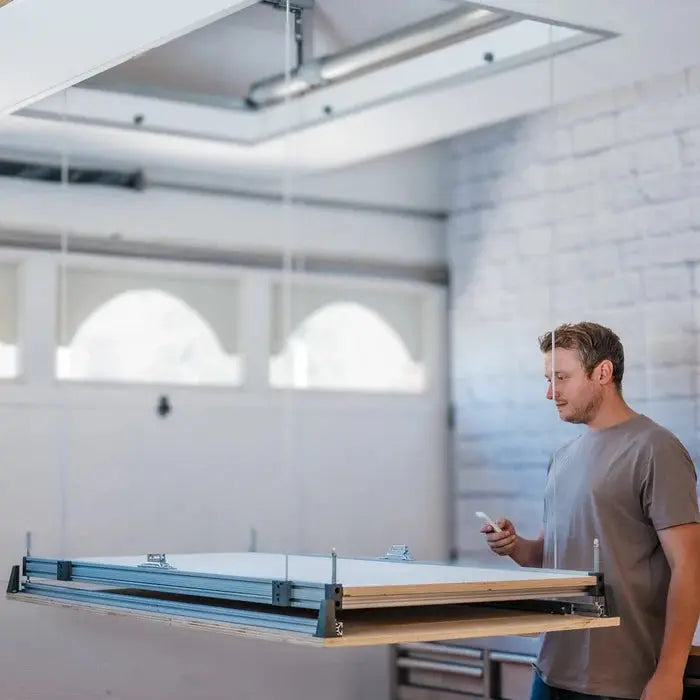

• Wireless Remote Control: Raise or lower your lift with one touch, and program your desired high and low stopping points.

• Safety Overload Protection: Built-in monitoring prevents operation when the load exceeds safe limits.

• Durable Construction: Aircraft-grade cables, aluminum frame, and reinforced plywood deck for long service life.

• Multiple Height Options: Available with 13 ft, 16 ft, or 20 ft vertical travel distances.

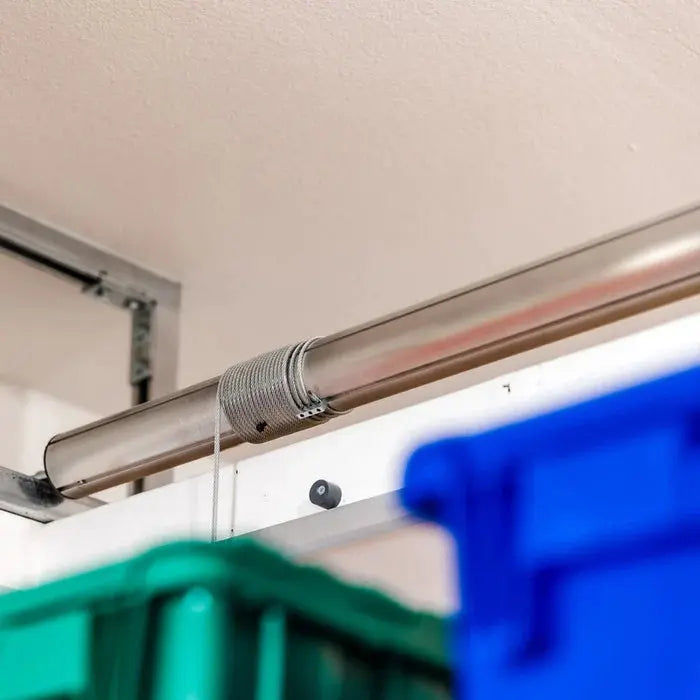

• Quiet, Reliable Motors: Two synchronized tubular motors ensure smooth motion and balanced lifting.

Product Description:

The Attic-Lift is the best-value garage storage system for homeowners who want to reclaim valuable floor space and improve organization. With a lifting capacity of up to 400 lbs, it allows you to move heavy or awkward items—like coolers, luggage, holiday décor, or bins—without the risk of climbing a ladder or stairs.

Installation is fast and simple. Just attach two motors and two struts to your attic joists using the included SPAX lag bolts, plug into a standard household outlet, and you’re ready to lift. The self-contained design means no rails, no posts, and no wasted space above.

The wireless remote offers intuitive control, allowing you to stop at pre-set heights for safe loading and unloading. The controller’s self-leveling system ensures that the platform remains perfectly balanced even when unevenly loaded, while its overload protection automatically shuts off power if the lift exceeds its rated capacity.

Safety and Performance

Safety is engineered into every detail. The four hot-dipped galvanized aircraft cables (7x19 steel, 133 strands each) provide exceptional strength, supporting loads well beyond the rated lifting capacity. Each cable is vinyl-coated to prevent corrosion and protect your hands during maintenance.

The dual tubular motors, rated at 235W and drawing only 2.3 amps, operate on standard 100–120V household current. Both motors are synchronized through the control unit to maintain even cable tension, guaranteeing smooth, level operation every time.

Superior Build Quality

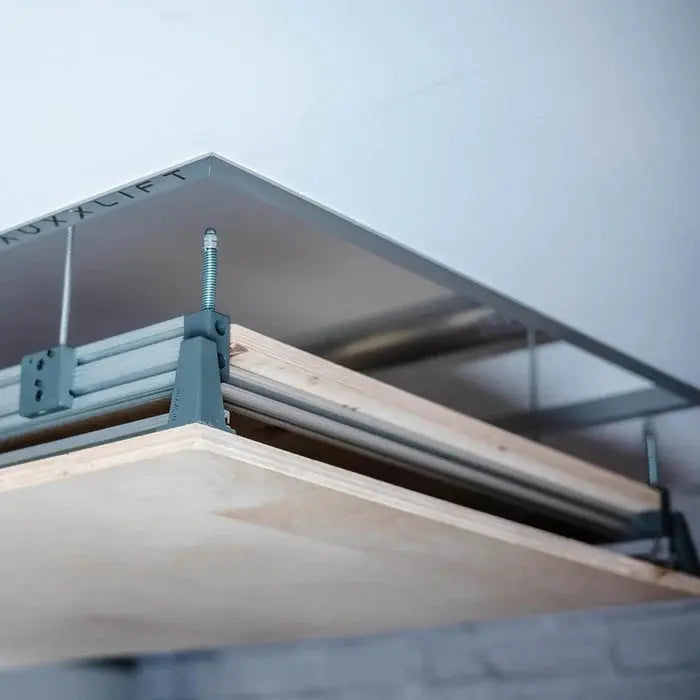

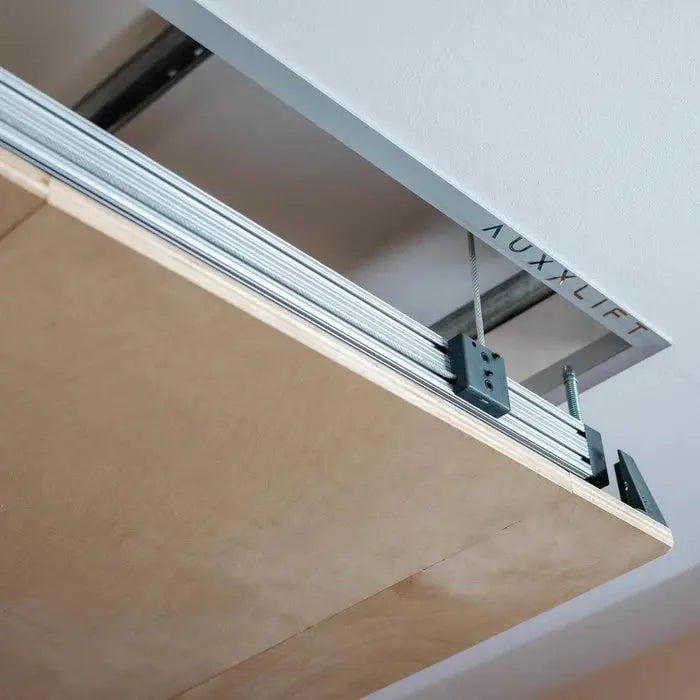

The platform’s 6105-T5 aluminum alloy frame is light but extremely strong, while the 3/4-inch oak-veneered plywood deck provides a stable surface for boxes, bins, and equipment. This combination ensures long-term reliability without adding unnecessary weight.

The entire system is compact and built for residential or light commercial use, making it the perfect upgrade for garages, workshops, or storage spaces.

Installation Simplicity

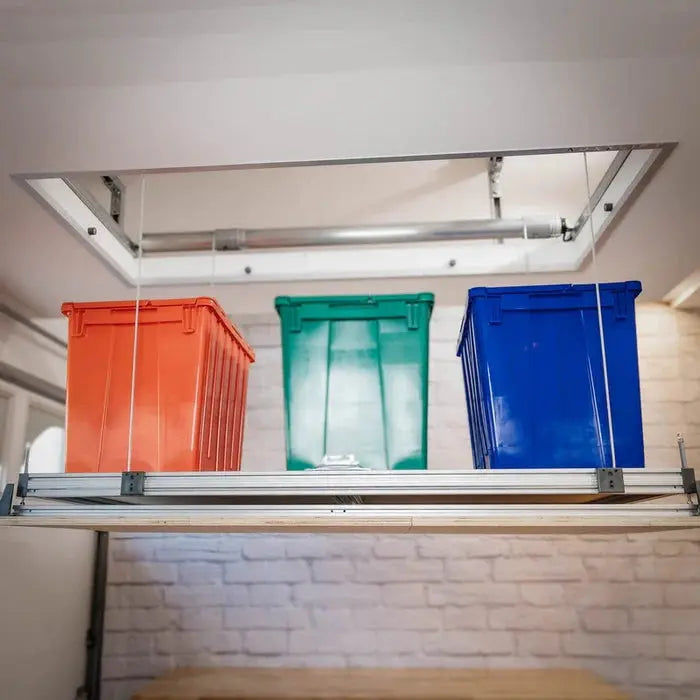

Despite its robust design, the Attic-Lift is easy to install. With clear instructions and optional video tutorials, most installations can be completed by two people in a few hours. The lift mounts securely across three attic joists or rafters with a 5' x 5' mounting area. Once in place, it integrates seamlessly into your ceiling for a clean, finished look.

Specifications

• Model: Attic-Lift 1400

• Lifting Capacity: Up to 400 lbs

• Max Travel Distance: 16 ft (options: 13 ft / 20 ft)

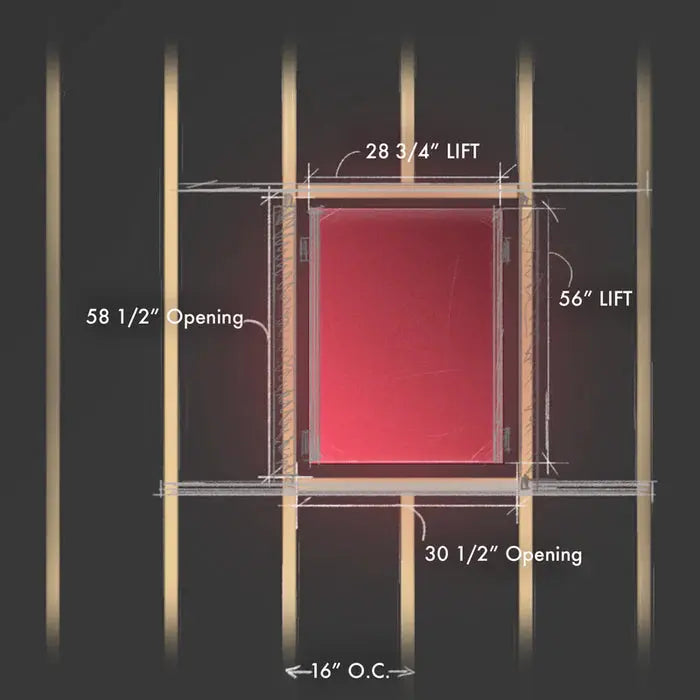

• Platform Size: 28.75" x 56" (Ceiling Opening: 30.5" x 58.5")

• Frame Material: 6105-T5 aluminum alloy

• Decking: 3/4" oak-veneered plywood (5-ply)

• Cable Type: 1/8" vinyl-coated 7x19 aircraft cable (2,000 lb strength each)

• Motors: Dual 235W tubular motors, synchronized via control unit

• Power Requirements: 110V / 120V AC, 2.3 amps, single phase

• Mounting Area: 5' x 5' across 3 joists/rafters

• Shipping Weight: ~160 lb (varies by size)
