All Lift Cranes FG5-812 | 5 Ton Capacity Fixed Height Gantry Crane

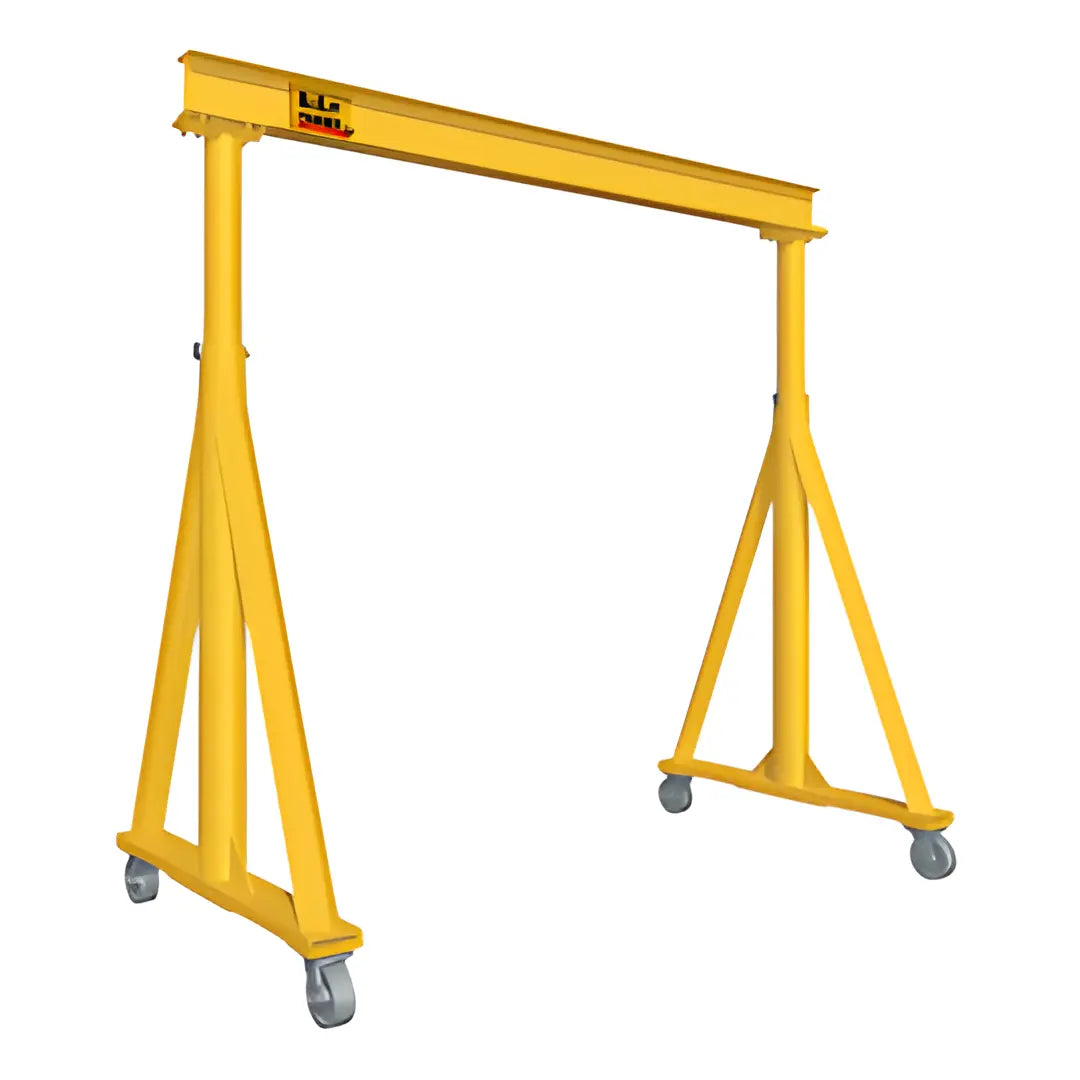

5 Ton Fixed Height Gantry Crane for Efficient Material Lifting

Features:

• Rugged Construction: Designed with premium quality steel for superior performance in tough operating conditions.
• The 4 large steel casters make it easy to maneuver around each workstation, and with 2 braked casters, it can be secured in place.
• Can be used in a variety of scenarios: Ideal for small warehouses, multistory buildings, and sites without the right foundations
• Economical: An affordable solution for permanent lifting structures.
• 1-10 Ton Available: For any lifting requirement.

Product Description

The FG Series 5 Ton Fixed Height Gantry Crane is an economical and reliable lifting solution that is suited for facilities that have occasional heavy lifting needs. This gantry crane is the ideal solution in challenging environments, you can use it in small warehouses, multilevel facilities or in places where there is no proper foundation.

This craneis designed as a temporary lift solution for an economical cost over permanent lifting structures. This rugged steel construction allows lifting heavy loads of 5 tons easily. 4 large steel casters, two of which are braked for easy mobility and secure positioning. All you do is unlock the brakes to move the crane to a new location and lock it in place while you’re ready to lift.

Suitable for (but for the 5 Ton Fixed Height Gantry Crane):

• Mini Warehouses: Ideal for small spaces and infrequent lifting.
• Multi-Storey Buildings: Seamlessly move materials from one floor to another without permanent installations
• Where Foundations are Not Available: Practical solution in locations that traditional cranes cannot be installed.

Customizable Options

This gantry crane is also versatile enough to be combined with extra accessories for improving performance, including:

• S-Hook Tagline Kits: Secure and efficient lifting.
• Hoists and Trolleys: For enhanced lifting capacity and versatility.
• Poly Casters: For outdoor baskets on rough terrain.

For accurate positioning and stability, use V-Groove Casters & Track

Safety and Durability

Where 5 Ton Fixed Height Gantry Crane is made safe. Which means: With maximum possible precision under heavy load, but cannot be moved while loaded. Fixed height design for stability in operation; braked casters secure the crane when in use.

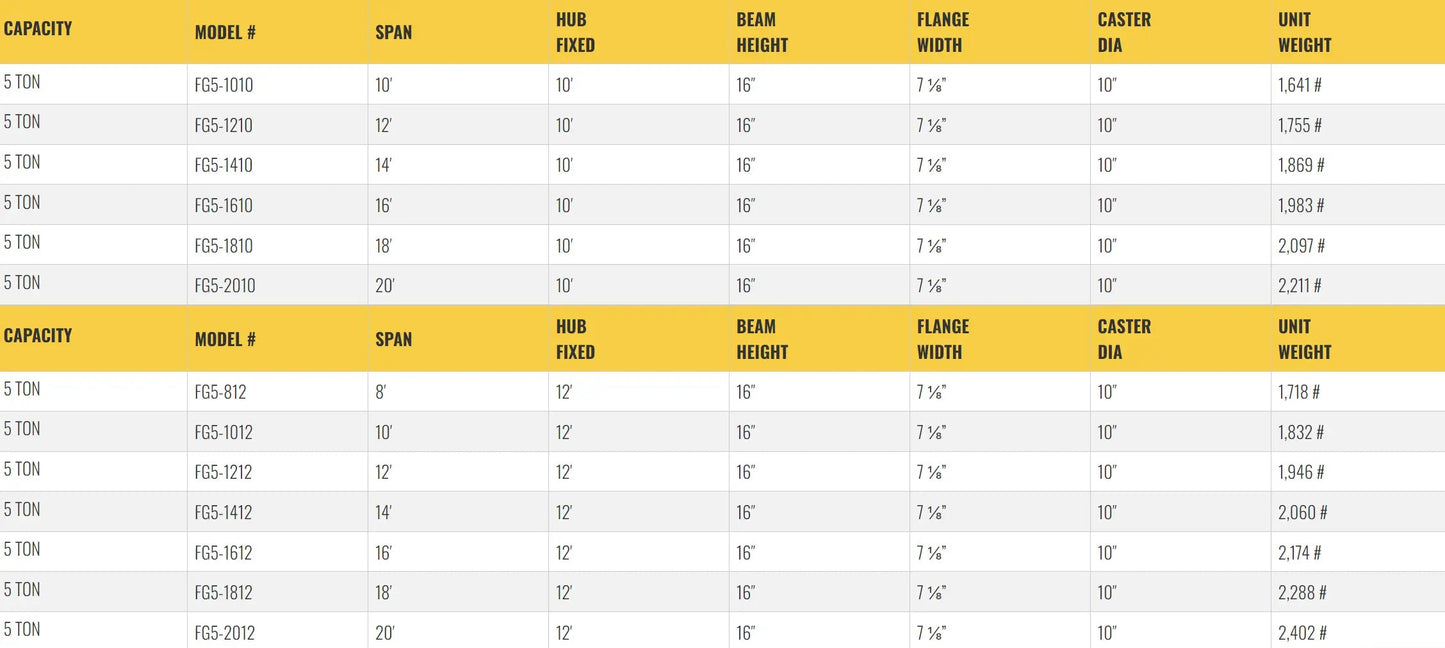

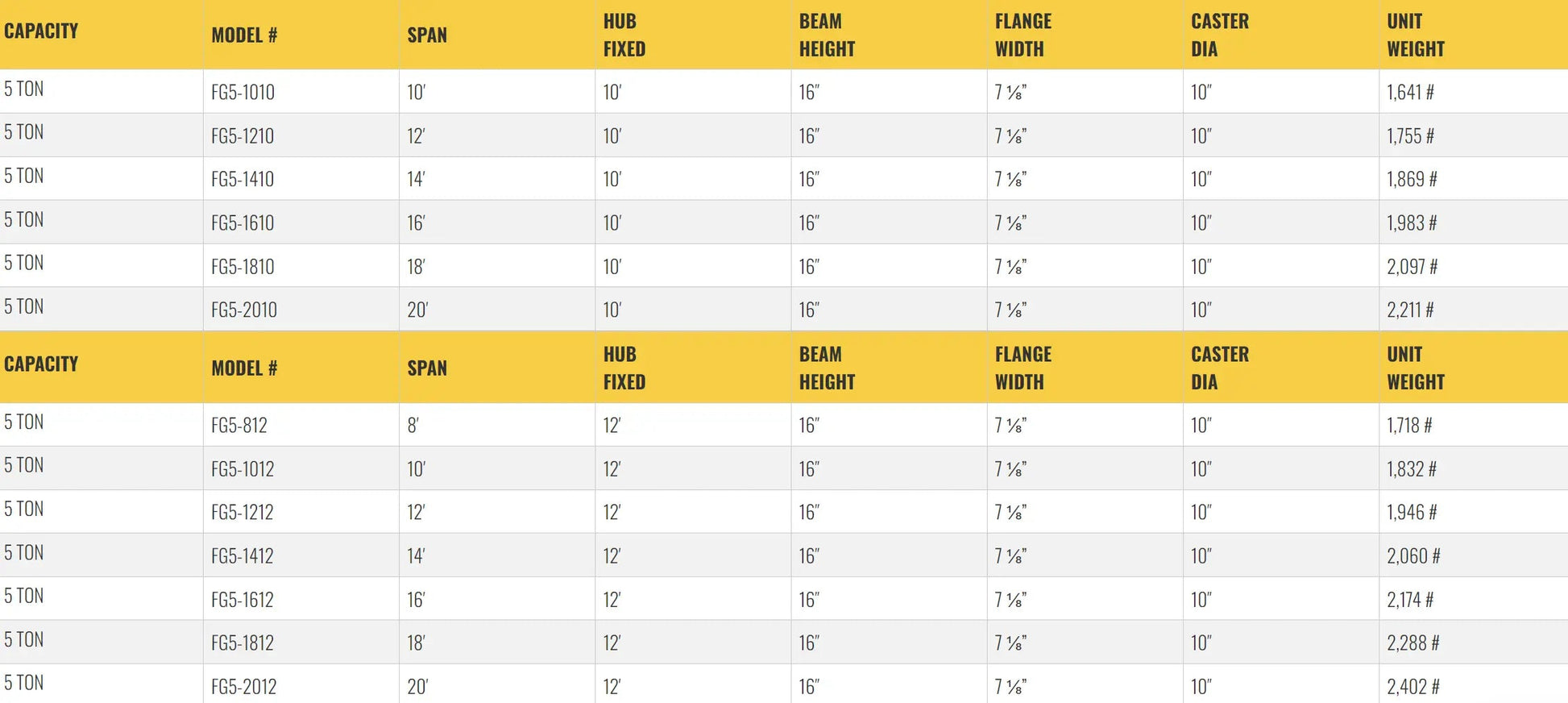

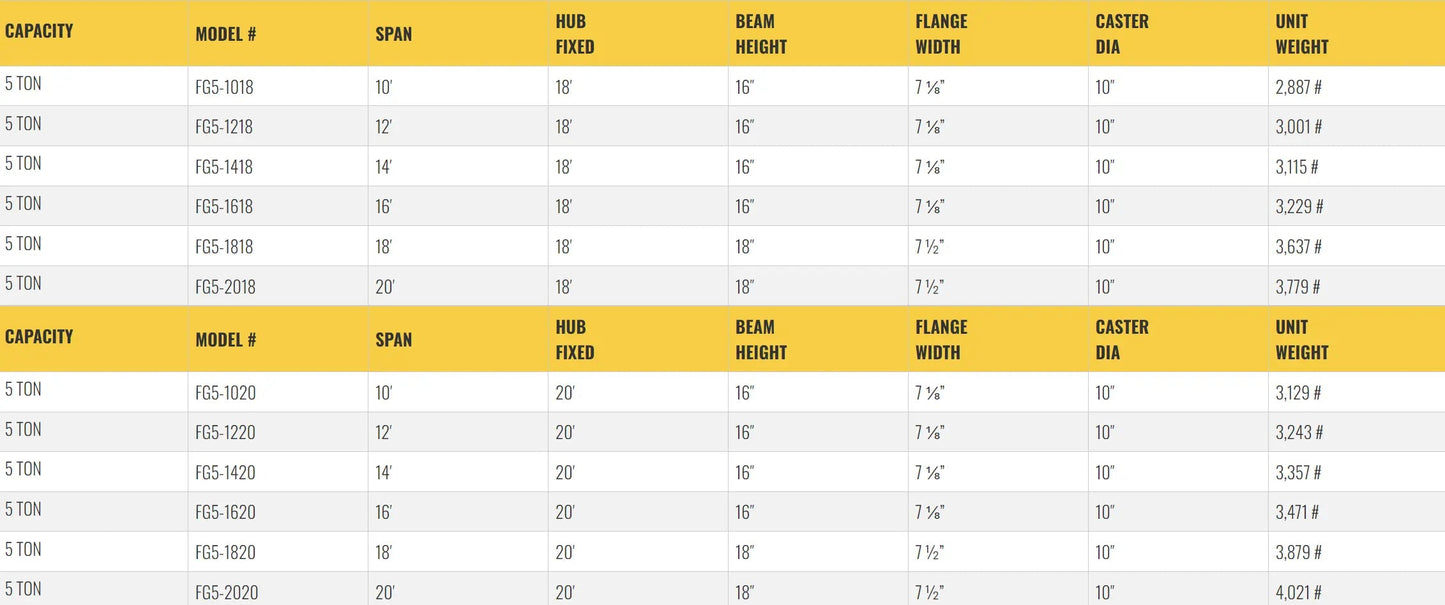

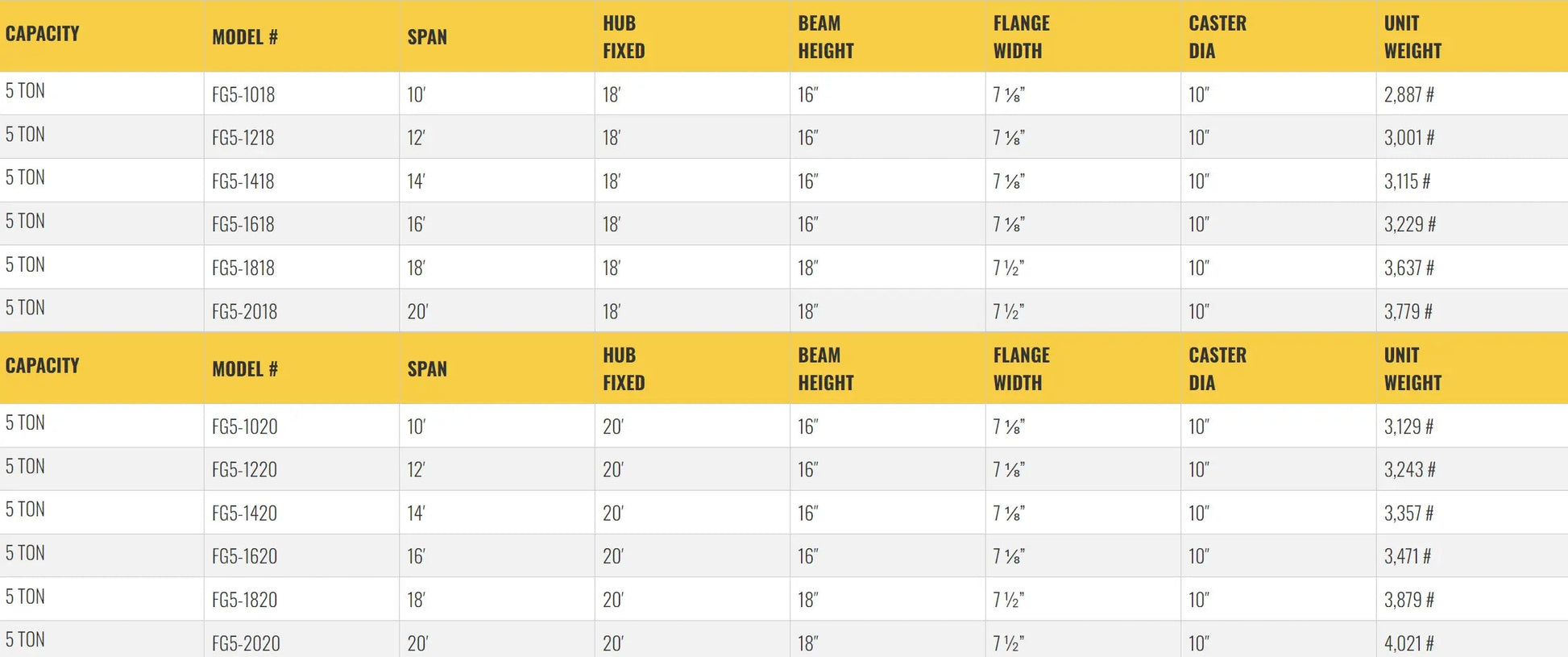

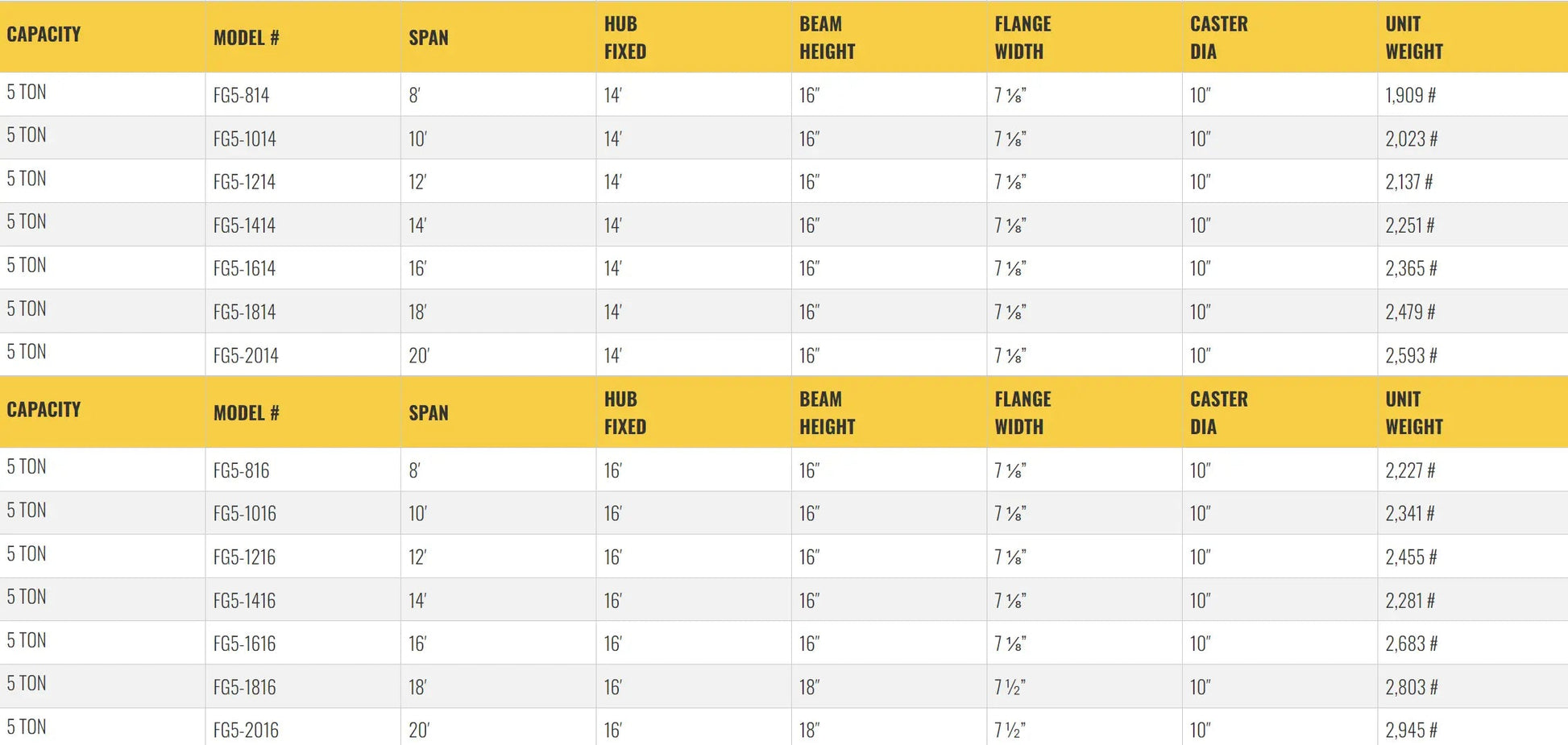

Range and Capacities

This type of crane will come in a variety of spans and capacities for different lifting needs:

• Span range: 10' minimum to 20' maximum.
• Capacities: 1 ton, 2 ton, 3 ton, 4 ton, 5 ton, 7.5 ton, and 10 ton

Lesser Budget Craning Solution

The 5 Ton Fixed Height Gantry Crane is a cost-effective option for many facilities that need sporadic lifting capability as opposed to a permanent installation. So simple design but practical, which is an indispensable addition to any workspace, allowing you to level heavy materials without breaking the bank.
