All Lift Cranes PM408-10 | Pillar Mounted Jib Crane 2 Ton Capacity

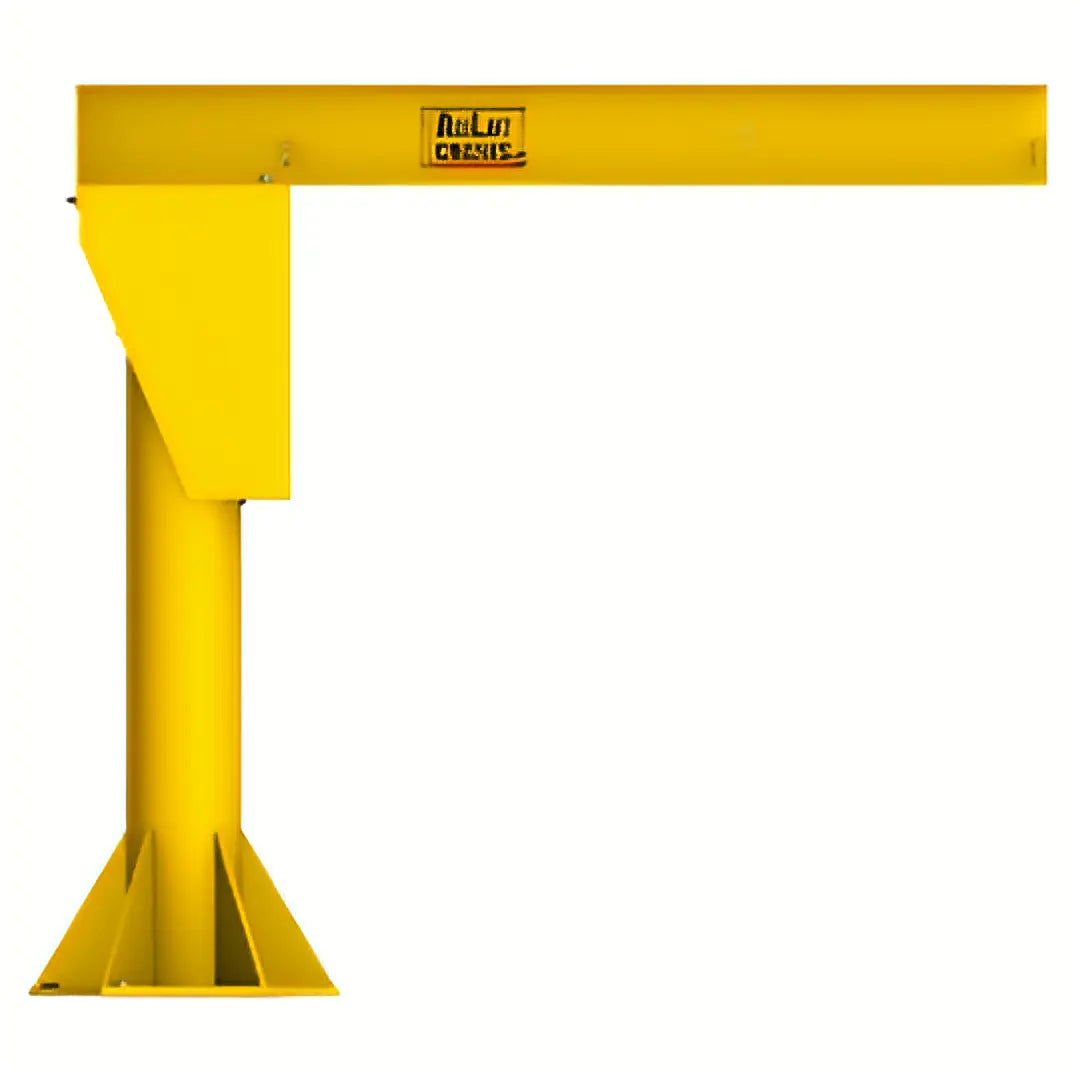

All Lift 2 Ton Pillar-Mounted Jib Crane – 360° Rotation

Features:

• Foundation-Free Design: Easily mounts directly onto the floors and overhead supports, no expensive foundation installation is needed.
• Complete 360° Turn: Adjustable rotation limits for accurate load positioning in small areas.
• Heavy Duty Helper: Not so handy when you have the heavy load — load capacity of up to 2 tons, ideal for heavy material transfer.
• Multi-purpose Use: The ideal primary or auxiliary crane for use in manufacture, assembly and workshop applications
• Simple Adjustment: Use tagline kits to add hoists, trolleys, or rotation stops as required.

Product Description

The foundation-free crane mounts directly to your floor, stabilizing with an overhead ceiling or support structure, making it ideal for retrofitting existing workspaces. It reduces handling time and transfer time as it moves materials right from the station to the assembly line, or passes the materials directly to a piece of machinery, through 360° rotation and a 2-ton capacity.

No Foundation, Space-Saving Construction

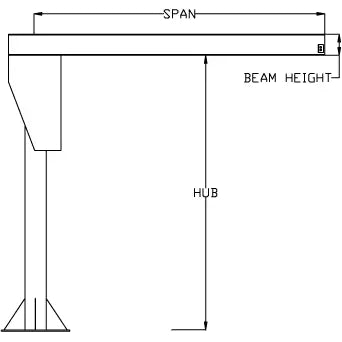

This pillar-mounted model does not require concrete for foundation like traditional crane jib. It employs a dual-mount arrangement that bolts securely to the floor using heavy-duty mounting plates while being stabilized overhead, so it can maintain stability without installing invasive hardware. For facilities with workflow changes that require floor modifications, the Twist comes to the rescue, saving both time and cost. The crane’s 8’–20’ span range accommodates different layouts, from small-scale workshops to large production floors.

360 Degree Rotation & Precision Control

With a full 360° rotation, the crane allows users to slide loads with ease upon workstations. Optional rotation stops allow you to limit the swing arc to prevent collisions in tight areas. Combined with seamless trolley movement along the I-beam, this element contributes to accurate placing of heavy assemblies, instruments, or materials ensuring the ultimate safety and efficiency.

Durable Construction & Safety

This jib crane is made from industrial-grade steel material to withstand rigorous daily use. There are end stops on the trolley track to prevent overtravel, while Grade 5 mounting bolts (sold separately) provide secure connection to floors and overhead supports with vibration resistance. Installation always requires verification of floor thickness and overhead structure strength to ensure safety compliance.

Real-world applications across multiple segments

• Manufacturing: Transfer components between presses, CNCs, or assembly workstations.
• Warehousing: Move and position pallets, equipment or heavy stock.
• Automotive: Transfer engines, chassis, or parts in assembly.
• Aerospace: Precision for delicate or heavy aerospace parts

Customization & Add-Ons

Customize the crane with optional accessories to match your workflow:

• Hoists & Trolleys: Electric or manual vertical lifting.
• Tagline kits: Make it easier to control the load as its turning.
• Rotation Stops: Restrict swing angles for tight spaces.

Simple Installation Process

• Installation: Using 7/8” Grade 5 bolts (not included), attach the base plate to the floor, and the top plate to an overhead structure.
• PLUMB: ensure the pillar is plumb for rotation.
• Test: Prior to usage, ensure stability and test range of rotation.
