All Lift Cranes PM108-10 | Pillar Mounted Jib Crane 1/2 Ton Capacity

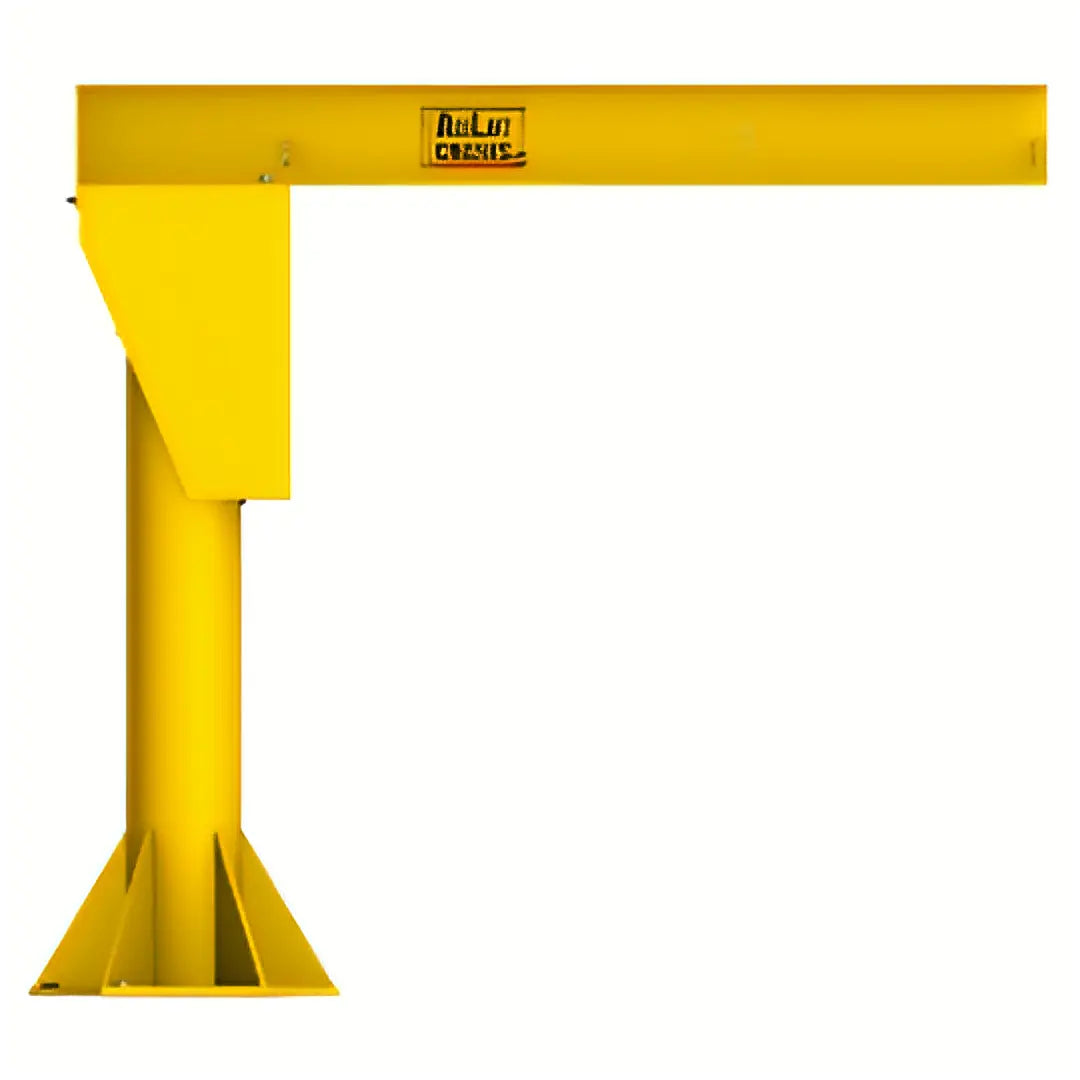

½ Ton Pillar Mounted Jib Crane – 360° Rotation, No Foundation Required

Features:

• No Foundation Needed: The Easy Installation Built Floor-mounted with overhead stabilization
• 360° Vehicle: Full-Rotating (Directional Stops Optional)
• High Capacity: Supports loads up to ½ ton, ideal for manufacturing and assembly work.
• Versatile Span Range: Adjustable span on the X-10 from 8’ to 20’ for flexible workplace coverage.
• Sturdy Construction: The setup comes with mounting plates, and end stops for secure, reliable operation.

Product Description

The All Lift Cranes ½ Ton Pillar Mounted Jib Crane is an extremely useful and beneficial product that can be used across many industrial sectors including manufacturing, assembly, and material handling. Unlike many traditional jib cranes, it doesn't require a foundation, which saves costs and simplifies installation. It directly mounts to the floor, and an overhead support, like a ceiling or beam, stabilizes it, so it operates securely and stably.

360° rotation for ultimate flexibility

Its 360° rotation capability to cover the entire workspace is one of this jib crane's top features. Nonetheless, the rotation is changeable and can be fitted with optional rotation stops that cater to various operational requirements. This versatility is well-suited to applications like transferring materials between workstations or operating as a backup crane in manufacturing processes.

Durable and Versatile Design

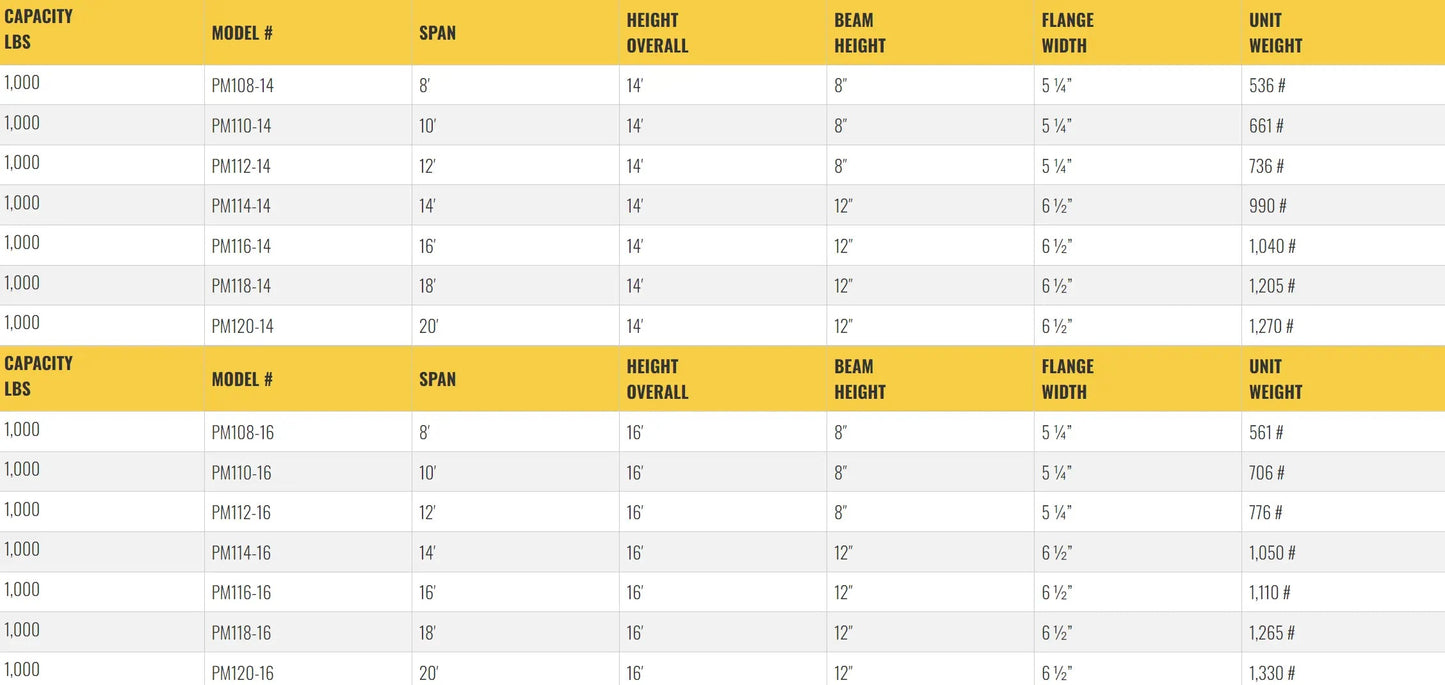

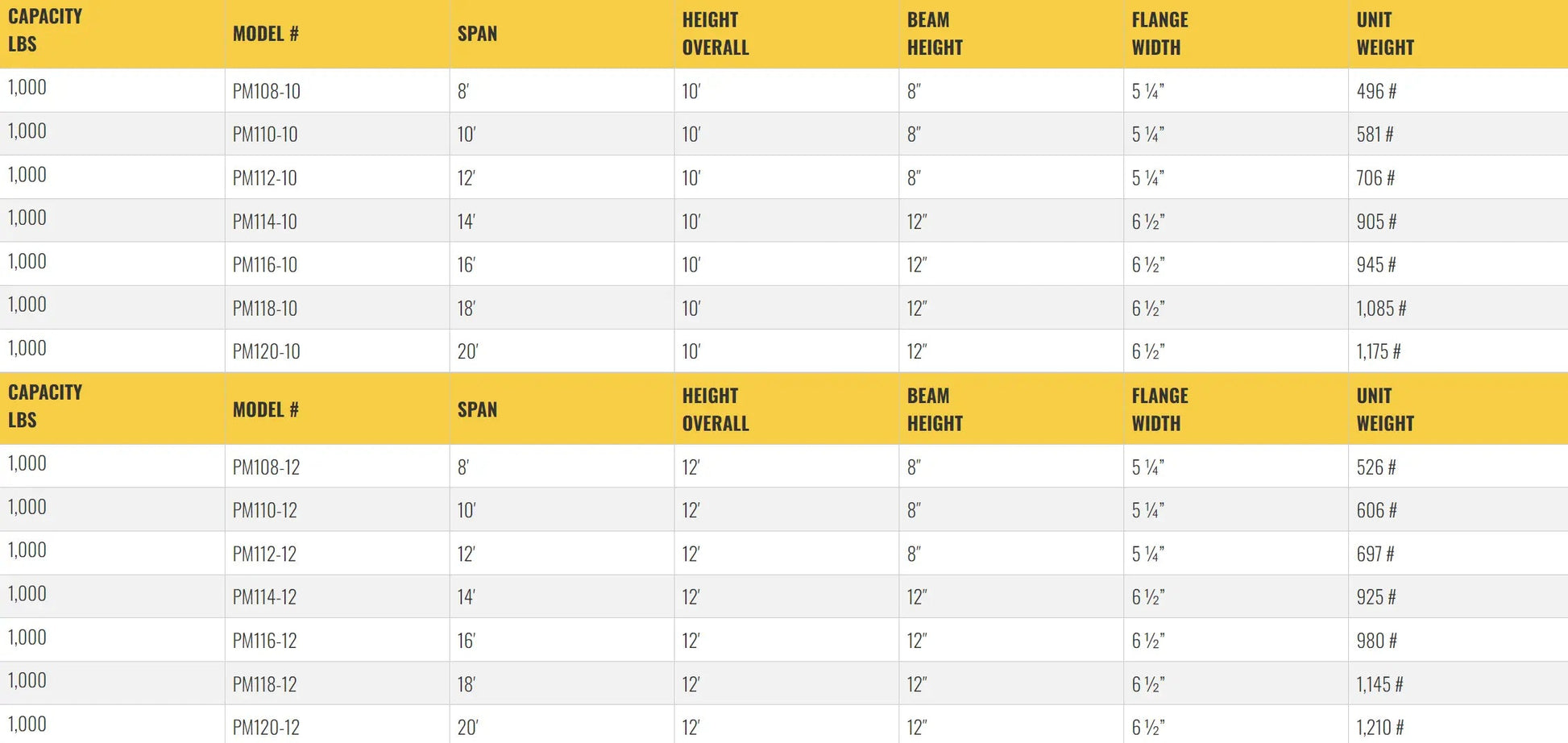

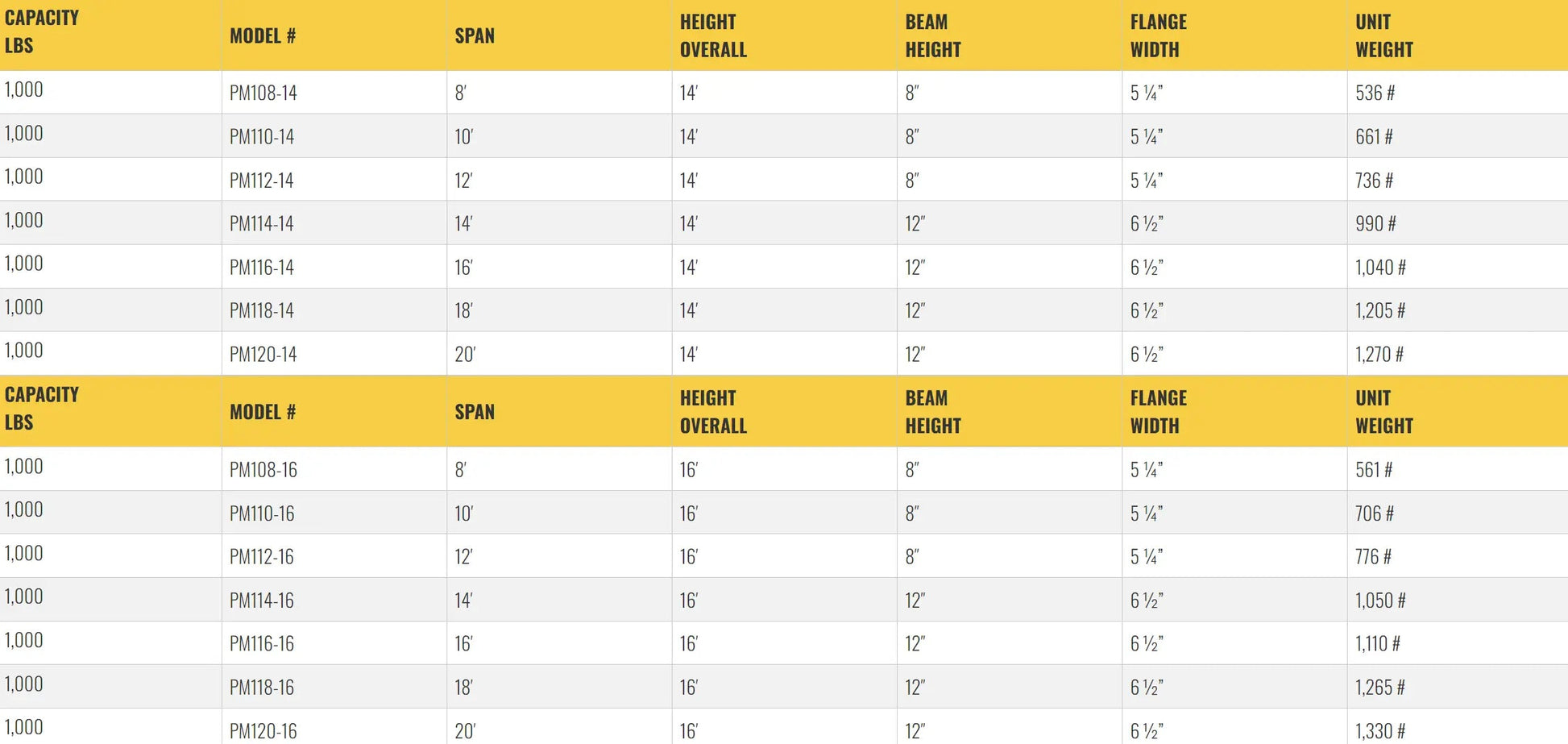

The ½ Ton Pillar Mounted Jib Crane makes light work of heavy duty applications. With a load capacity of ½ ton (1000 lbs) and a span range of 8' to 20', it is perfect for a variety of workspace configurations. Each crane includes two mounting plates and end stops for secure positioning and operation. Also, tagline kits, hoists, and trolleys can be used as options to supplement the rope.

Applications

Applications of the jib crane include:

• Manufacturing and Assembly: Constructed for transporting and positioning tools on production lines.
• Material Handling: Use of material handling equipment that efficiently transfers goods between workstations.
• Warehousing: Ideal for locations where you need to load and unload items in storehouses.

Installation Requirements

WARNING: To keep the crane operating in a safe and stable manner the crane must be installed using grade 5, 7/8” diameter mounting bolts (not included). The floor thickness and overhead structure determine the mounting location. Consulting with a professional to direct to the proper installation setup that will be good for your workspace is advised.

The ½ Ton Pillar Mounted Jib Crane is a solution for businesses seeking a reliable, efficient, and cost-effective lifting system. Whether you’re working in manufacturing, assembly, or warehousing, this crane delivers unmatched performance and versatility.
