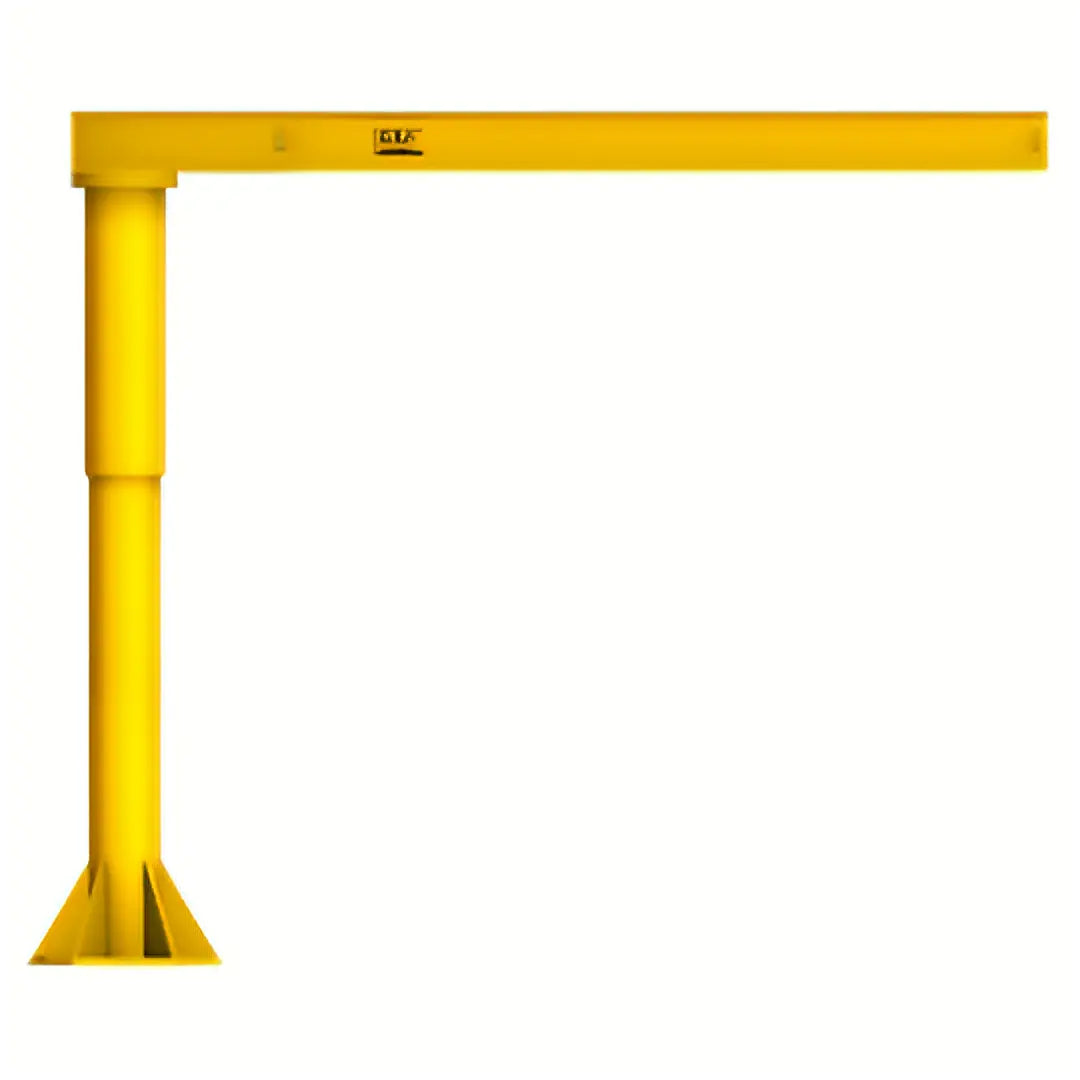

All Lift Cranes H6108 | Heavy Duty Floor Mounted Jib Crane 3 Ton Capacity

All Lift Cranes H-Series 3 Ton  10 to 14 HUB Heavy Duty Jib Crane – Industrial Strength

Features:

• Robust and Reliable Build: Precise structural steel mast with large base plate reduces mast deflection to ensure alignment remains throughout operation.
• 360° Rotating I-Beam: Easy to glide along the rolled steel tapered flange, which ensures the trolley wheels travel and load positioning accurately.
• End Stops: Provide restrictions of trolley crossing over at the two ends of the boom.
• Adapter Base Plates: We offer adapters with a 48” or 54” diameter base plate Will reinforced bolt circles.
• Flexible Add-Ons: Add tag line kits, motorized spin, collector rings and stainless steel.

Product Description

Designed for the most rigorous lifting applications in the commercial and industrial sectors, the All Lift H-Series 3 Ton Heavy Duty Jib Crane delivers exceptional strength and portability. Constructed from heavy-wall structural steel pipe, the crane features a reinforced large diameter base plate that minimizes deflection and ensures durability under continuous 3-ton loads. Its 360° rotating rolled steel I-beam, equipped with a tapered flange, allows for smooth trolley travel, while safety end stops enhance controlled movement and operator safety.

Unparalleled Protection & Accuracy

The H-Series Jib Crane boasts heavy-duty construction, starting with its structural steel mast that resists bending and maintains alignment under demanding loads. The base plates, available in 48” or 54” diameter with 44” or 50” bolt circles, evenly distribute weight to prevent foundation stress. This crane is designed to be paired with a 3000 psi compressive-force rated cement foundation (4’ deep x 7’–9’ square) reinforced with 3/4” rebar grids, ensuring longevity even in harsh environments.

360° Adjustment for Ultimate Versatility

The full 360° rotation capability allows operators to position loads with precision. The tapered flange design reduces friction, enabling the trolley to glide smoothly along the beam at full capacity. Whether lifting machines in factories or transporting materials in warehouses, the H-Series delivers reliable performance every time.

Safety & Customization

The dual end stops prevent trolley overtravel, providing safety against collisions. Customers can customize their crane with options such as:

• Tagline Kits & S-Hooks: Keeps load attached.
• Power Pick: Rotate In Place with Push in Control
• Stainless steel body: Perfect for outdoor or corrosive conditions.
• Adapter Rings (Top/Bottom Entry): Organize power and data cabling.

Industrial Applications

This jib crane excels in various settings, including:

• Manufacturing: Hoisting and placing heavy equipment parts.
• Warehousing: Minimizing space lost to material handling.
• Construction: Assisting in on-site equipment assembly.
• Shipyards: Precisely loading and unloading cargo.

Installation and Compliance Made Easy

The H-Series is engineered for demanding industrial applications and includes bolt pattern templates for straightforward installation. Foundation specifications are clearly outlined: a 4’ deep cement plinth (7’–9’ square) with 3/4” rebar spaced 12” on center, ensuring stability and adherence to safety compliance protocols.

Final Word on the All Lift H-Series 3 Ton Heavy Duty Jib Crane. The workhorse of factories, warehouses, and shipyards, the H-Series is a long-term investment in productivity and safety, designed for industrial lifting applications.
