All Lift Cranes H10108 | Heavy Duty Floor Mounted Jib Crane 5 Ton Capacity

All Lift Cranes H-Series Heavy Duty Floor Mounted Jib Crane 5 Ton Capacity 10 to 14 HUB

Features:

• Heavy Duty (5-Ton Capacity)Designed: for industrial and warehouse Hoists.
• Full circle: Rolled steel I beam with tapered flange for smooth trolley and come along the operation.
• Stiffened Base Plate: Provides stability and little deflection under load.
• Limit Switches: These can also be defined to avoid over-travel and ensure safety.
• Customization Options: This includes tagline kits, motorized rotation, and collector rings.

Product Description

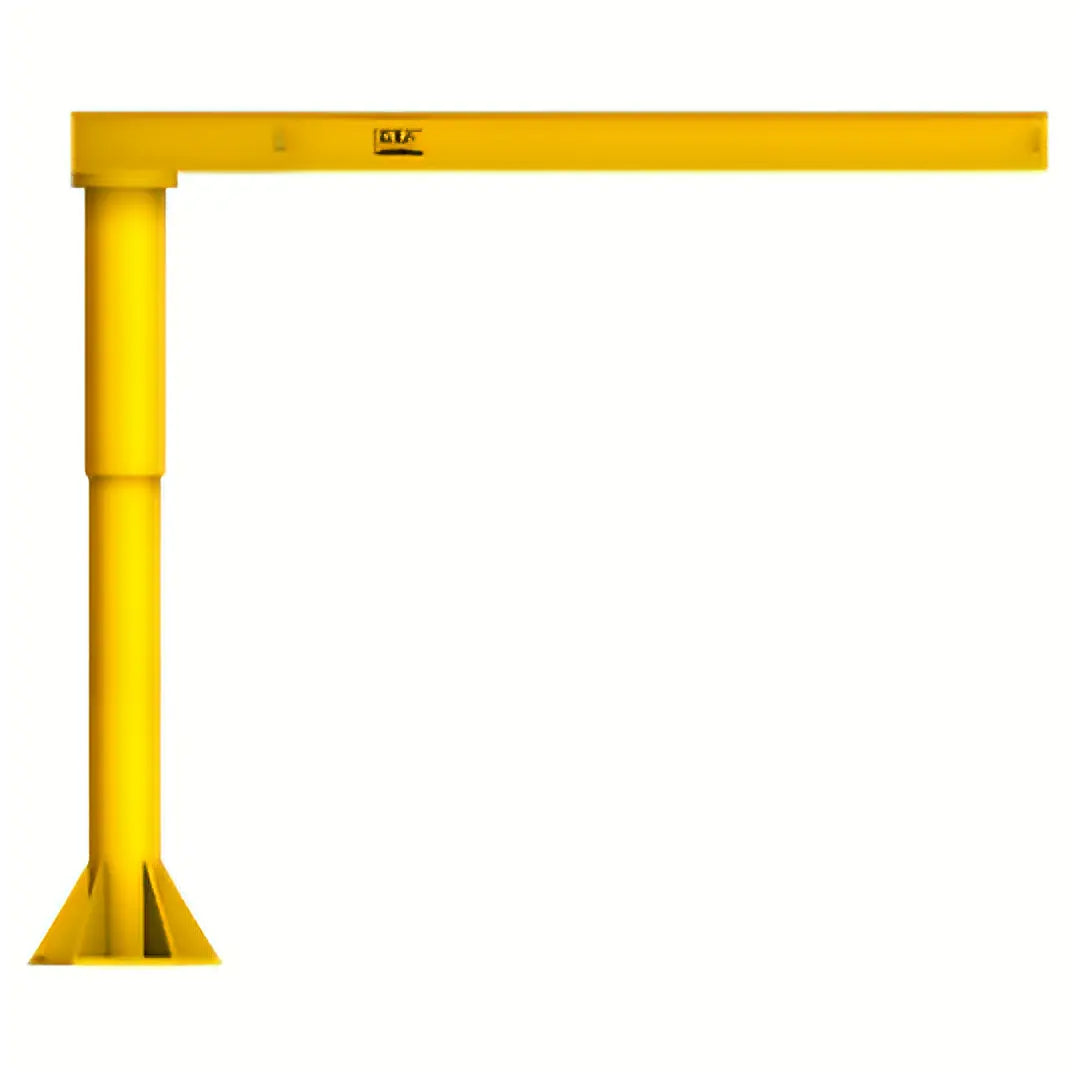

All Lift Cranes H-Series 5 Ton Heavy Duty Floor Mounted Jib Crane Reliable, versatile, and extremely sturdy. This crane is specifically built for industrial and warehouse applications and offers heavy-duty construction and features for an effective lifting process with a capacity of 5 tons at max.

Designed for Maximum Load Capacity

Built with a heavy-wall structural steel pipe mast and a reinforced base plate, this jib crane is designed to minimize deflection, and won't go out of alignment, even at max load. The I-beam can be rotated 360°, and has a tapered flange to ensure the trolley runs smoothly, and the boom has safety end stops on both ends to prevent over travel, increasing the safety of operations.

Adaptable for a Wide Range of Uses

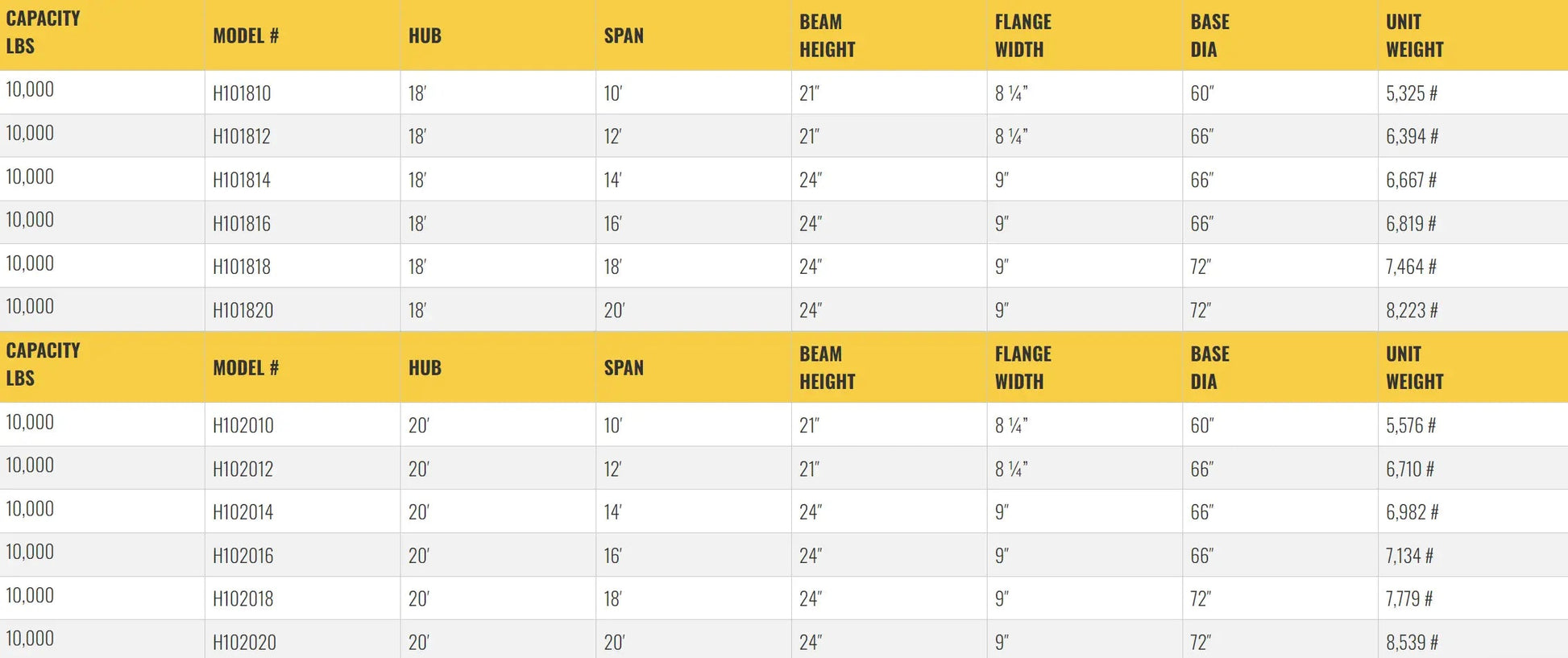

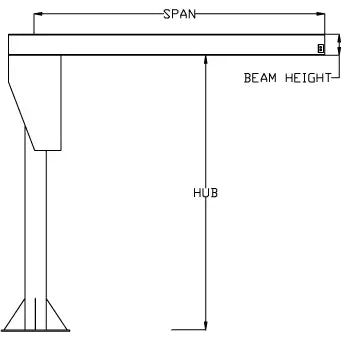

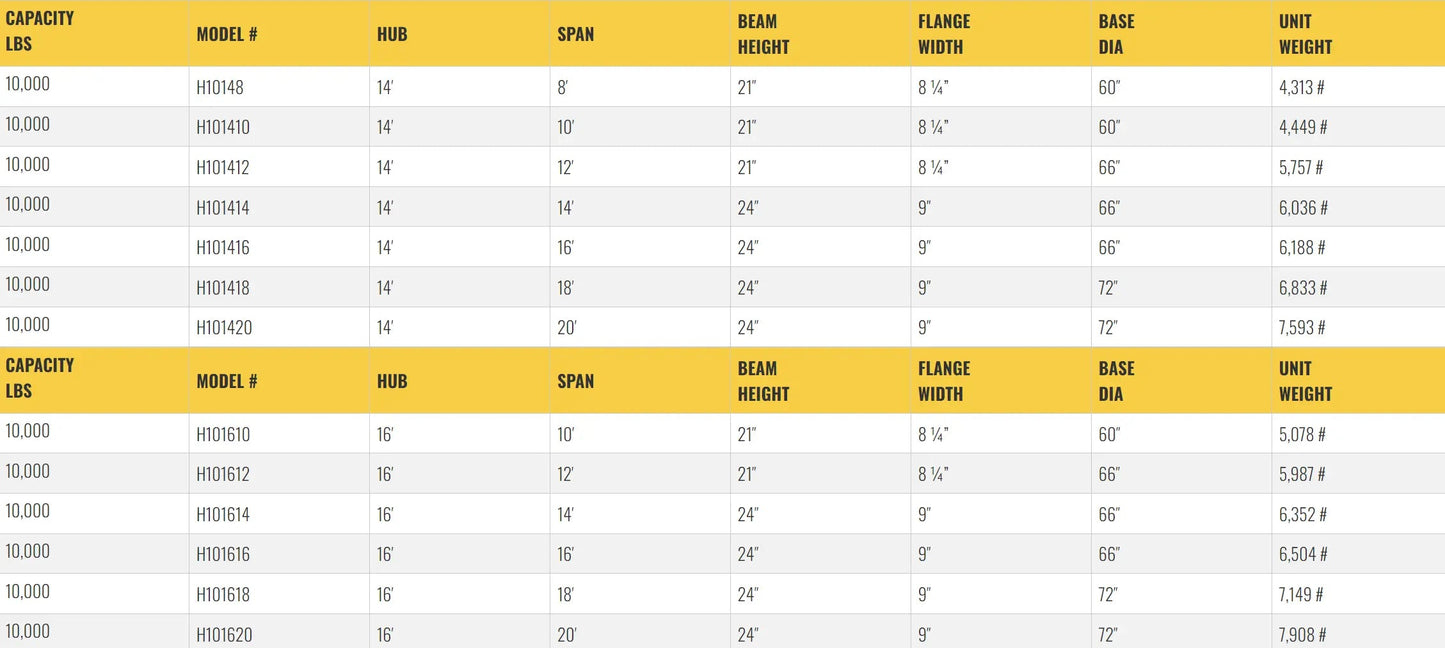

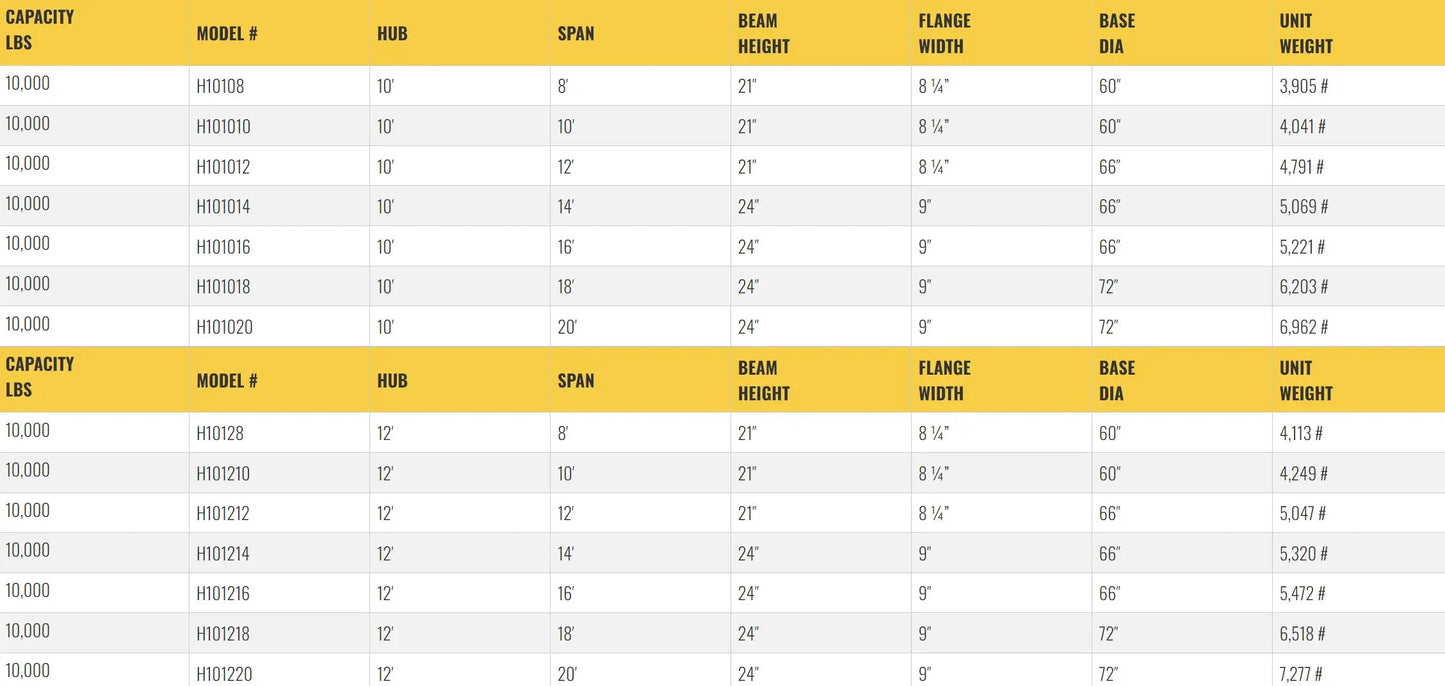

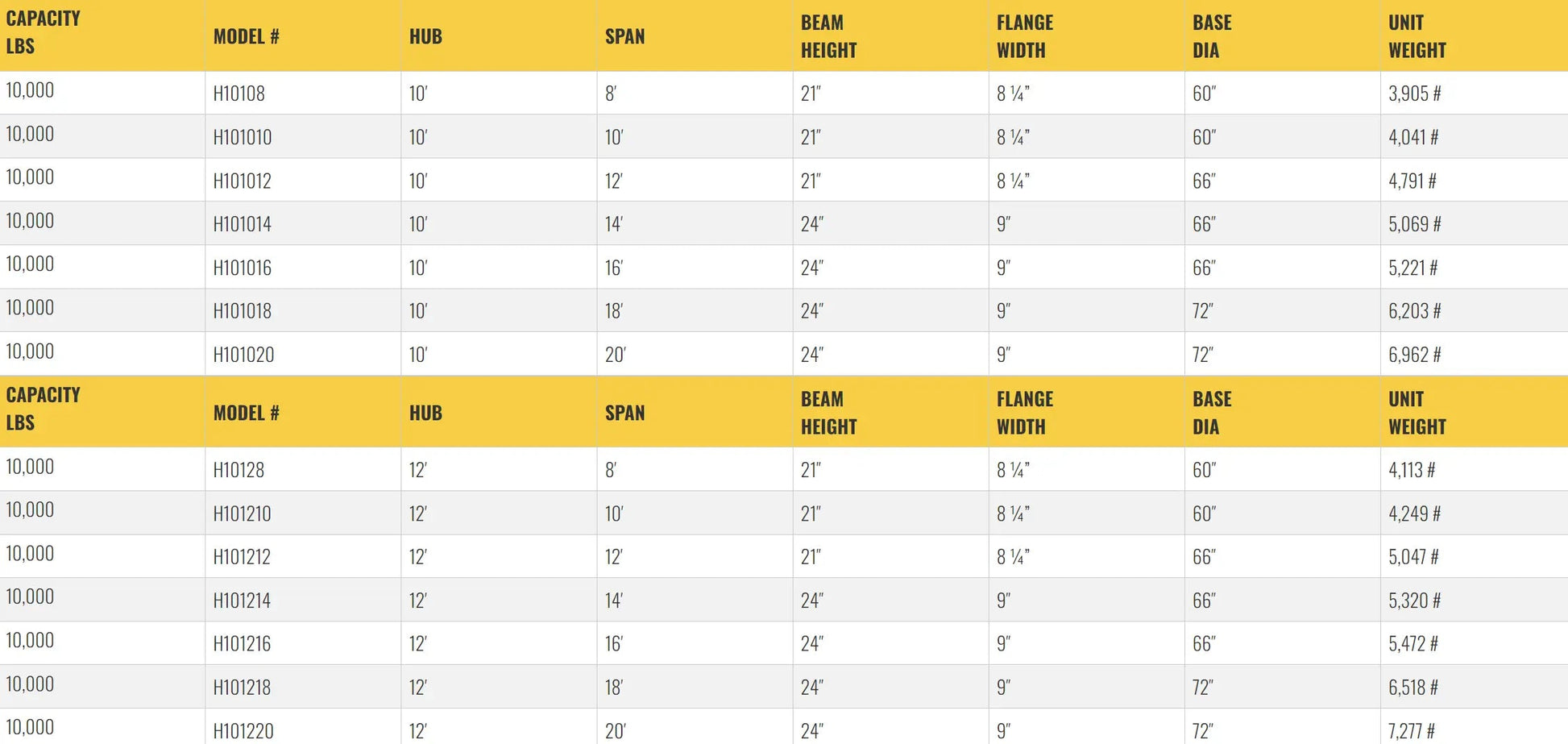

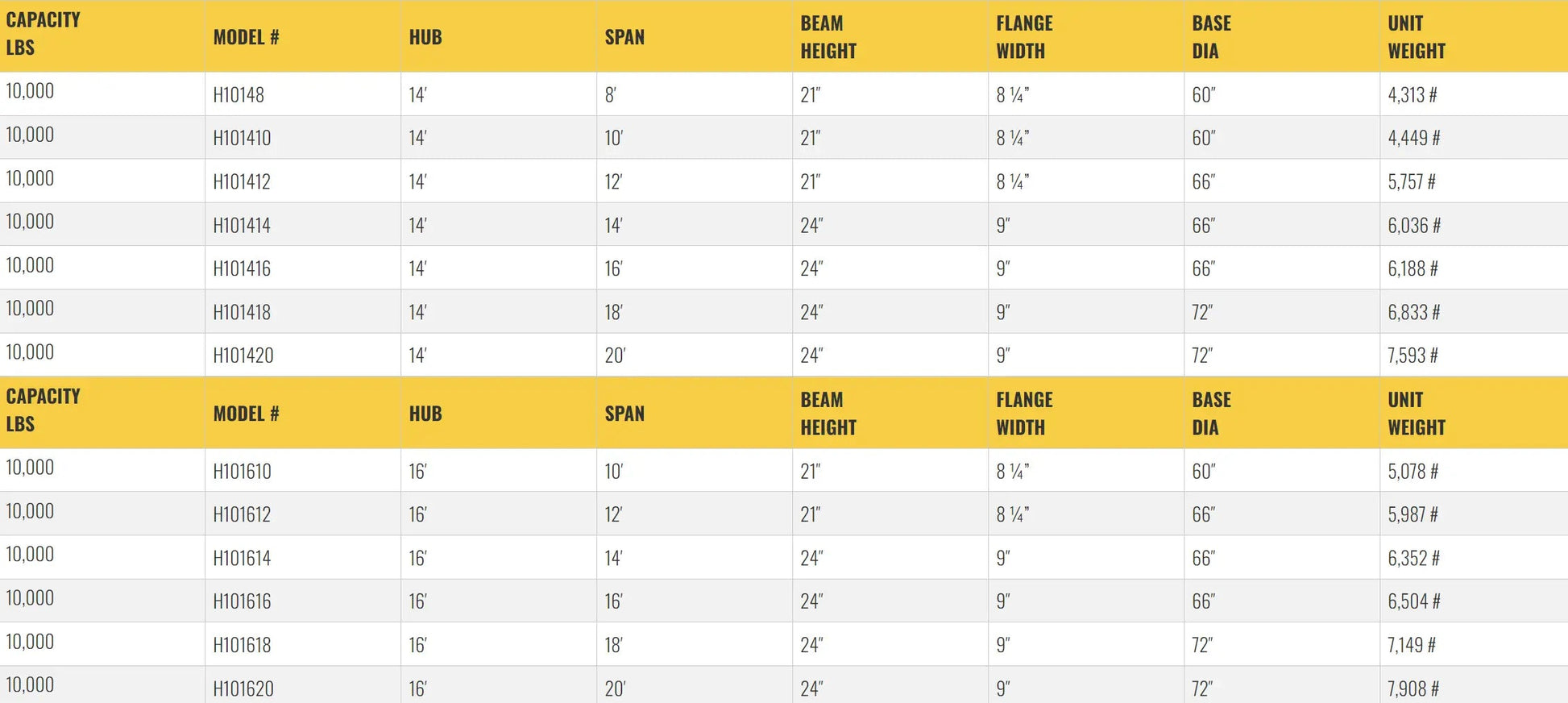

This durable floor-mounted jib crane is extremely versatile, with options for a variety of different span spans (8’ to 20’) and HUB heights (10’ to 20’) to fit your work environment. More options such as a tagline kit with S-hooks, motorized rotation and collector rings provide complete 360° rotation without interruption, making it great for a wide range of lifting applications.

Protected Fixture using Strong Bases

Every All Lift Cranes H-Series must be cemented 4’ deep with rebar for stability. Depending on base plate size (60”, 66”, & 72” diameter), the foundations dimensions vary from 7’ to 9’ square. Stays in place during heavy lifting with 3000psf compressive force.

Perfect for Industrial and Outdoor usage

Ideal for industrial, warehouses, and even outdoor applications, this heavy duty floor mounted jib crane. Optional stainless steel parts make it appropriate for severe environments. Robust construction for long use.

It is the H-Series 5 Ton Heavy Duty Floor Mounted Jib Crane from All Lift Cranes that combines aluminum crane arms, reinforced and fortified high-strength columns & girders, and renowned industry.
