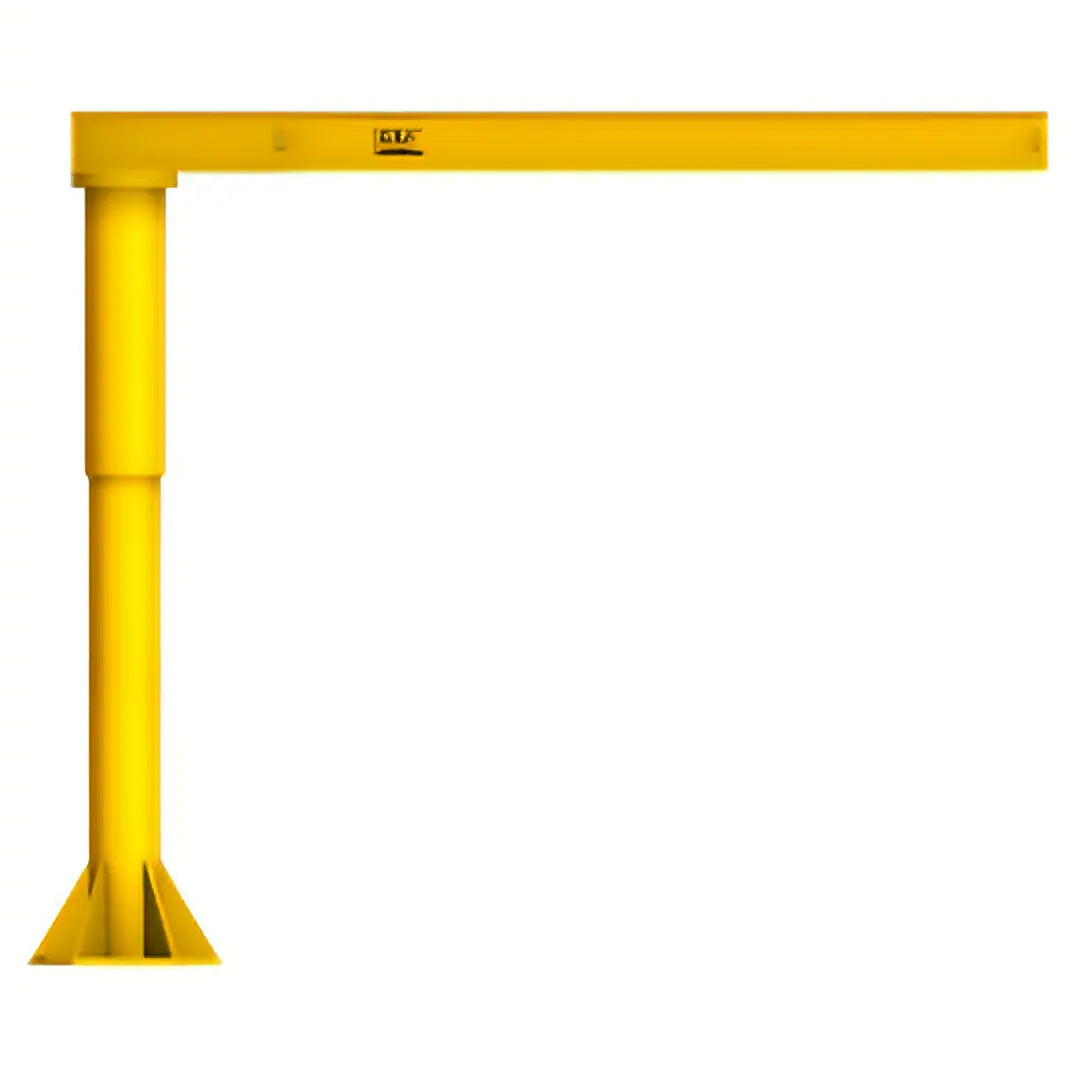

Foundationless Floor Mounted FL-586 Series Jib Crane ¼ Ton Capacity

Features:

• YOCA 1030 High Capacity: ¼ ton lifting capability for heavy-duty applications.
• 360° RotationSymptoms name: Smooth, without hindrance, covering the maximum work surface.
• Build: A rolled steel I-beam with tapered flange provides a smooth flow of trolley.
• Foundationless Installation: Installs simply to most existing concrete surfaces with bolts.
• Versatile Applications: Ideal for machining, assembly and outdoor loading docks.

Product Description

The All Lift Cranes Foundationless Floor Mounted FL-586 Jib Crane is the good option for industrial lifting needs with incredible flexibility, strength, and easy installation. With no pre-poured foundation required, this jib crane is simple to assemble and is an economical option for any workspace compared to a traditional jib crane.

Durable Construction and Design

The FL-500 Series Jib Crane is designed for severe industrial conditions, featuring a strong rolled steel I-beam with a tapered flange for smooth and positive trolley movement. A 28-inch-diameter base and 24-inch bolt circle with four 1¼-inch bolt holes provide secure anchoring to an existing concrete surface.

Effortless 360° Rotation

In addition, this crane rotates a full 360 degrees, ensuring smooth operation through multiple workstation points. The top-entry collector ring enables snag-free rotation and is an ideal addition to any high-usage load area.

Simplified Installation with No Foundation Needed

The foundationless design eliminates expensive and time-consuming concrete foundations. Most existing concrete surfaces, if the concrete meets the following criteria, can be mounted with such a crane:

• Reinforced concrete (3,000 psi, 5-bag mix), min. 6-inch thick
• Soil pressure needs to be 2,500 psi.
• Poured concrete (6 feet by 6 feet) should be

It is highly advisable to consult a local engineer to confirm foundation integrity for added peace of mind.

Versatile Applications

Built for versatility, this type of jib crane can be utilized in various industrial applications, such as:

• Operations: machining and assembly
• Outdoor: use on loading docks
• When two jib cranes will be used in tandem

More Personalized Customization Features

The FL-500 Series Jib Crane can be customized to suit specific operational requirements with optional accessories, such as:

• S-Hooks Tagline Kits for Improved Cable Management
• Reinforced installation with Epoxy Anchor Kits
• Templates for accurate Bolt Pattern setup
• You are up to date on data till October 2023.
• Stainless Steel & Outdoor Applications for tough environments
• Results in Safety and Performance Assurance

It has removable safety end stops that limit trolley movement and prevent accidental dislodging, making it a reliable option for optimal user protection and well-being. Local engineers need to vet every installation to verify compliance with the load-bearing needs.
